User manual for the Cerwin-Vega CV-2800 Professional Power Amplifier CV-2800
The user manual for the Cerwin-Vega CV-2800 Professional Power Amplifier CV-2800 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.
The Cerwin-Vega CV-2800 Professional Power Amplifier is a 2U 19" rack-mountable unit that supports stereo, parallel, or bridged mono operation for live sound reinforcement applications. The amplifier is rated at 600W at 8Ω in stereo mode, 900W at 4Ω in stereo mode, 1400W at 2Ω in stereo mode, 1800W at 8Ω in bridged mono mode, and 2800W at 4Ω in bridged mono mode. The unit utilizes a class H circuit design to achieve a frequency response of 20 to 20,000 Hz with a signal to noise ratio of 104 dB and a distortion rating of 0.04%. A high pass filter can be engaged to roll off the signal below 40 Hz.
For inputs the unit features combination balanced XLR and TRS connectors, as well as link ports for sending the signal to additional amplifiers. For outputs the unit features 5-way output binding posts and Neutrik Speakon NL-4 connectors.

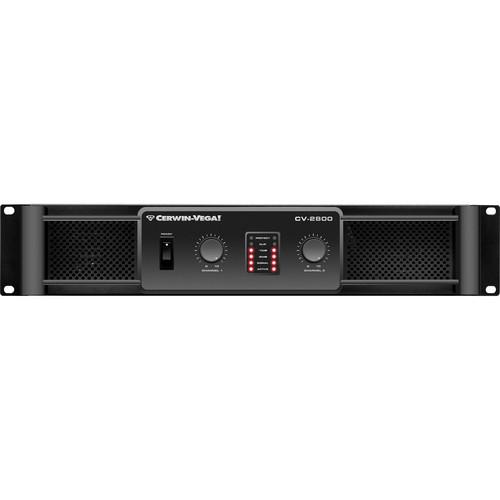

The front panel features indented 21-position input level control knobs and an LED display indicates power, clip protection, and signal status. The unit includes short circuit, thermal, current limit, DC offset, current inrush, RF protection, turn on/off protection circuits. A twin tunnel two-temperature sensitivity forced air flow through cooling system helps maintain a low operating temperature.
|
If you own a Cerwin-Vega power amplifiers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Cerwin-Vega CV-2800 Professional Power Amplifier CV-2800 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Cerwin-Vega CV-2800 Professional Power Amplifier CV-2800:
| Rated Output Current | Stereo, Both Channel Driven: 8 Ω: 600 W 4 Ω: 900 W 2 Ω: 1400 W | | Bridging Features | Bridged Mono: 8 Ω: 1800 W 4 Ω: 2800 W | | S/N Ratio | 20 to 20,000 Hz: 104 dB | | Distortion | 0.04% (SMPTE-IM) | | Input Sensitivity @ 8 ohms | 4 dBu | | Voltage Gain | 35 dB | | Circuitry | H | | Current Consumption | Current Consumption: 120 VAC / 240 VAC @ 1/8 Power @ 4 Ω: 8.5 A / 4.1 A @ 1/3 Power @ 4 Ω: 17 A / 8.3 A @ Rated Power @ 4 Ω: 32 A / 16 A | | Distortion | 20 to 20,000 Hz Half Power: 0.03%
1,000 Hz Rated Power: 0.1% | | Frequency Response | 0/-0.5 dB: 20 to 20,000 Hz,
0/-3 dB: 5 to 60,000 Hz | | Damping Factor | 350 (400 Hz) | | Input Impedance | 15 kΩ unbalanced, 30 kΩ balanced | | Input Clipping Level | 22 dBu (10 V RMS) | | Cooling | Continuously variable speed, front to rear | | Input | Active balanced combo (XLR and ¼" TRS common use) | | Output | 5-way binding post and Speakon | | Front | AC power switch, channel 1 and 2 volume | | Rear | HPF switch, limiter switch, mode selector switch | | Indicators | Active: Light blue Protection and Clip: Red Signal: Dark blue | | Protection | Short circuit, thermal, current limit, DC offset, current inrush, RF protection, Turn On/Off muting | | Power Requirements | Japan: 100 V at 50/60 Hz
USA and Canada: 120 V at 60 Hz
EU: 240 V at 50 Hz | | Dimensions (W x H x D) | 19.00 x 3.50 x 16.50" (48.26 x 8.89 x 41.91 cm) | | Weight | 46 lb (20.7 kg) | | Package Weight | 53.0 lb | | Box Dimensions (LxWxH) | 24.0 x 21.0 x 8.0" | |
