User manual Cisco Aironet 2600i Series Access Point AIR-CAP2602I-A-K9

Operating instructions and pdf manual for use - Cisco Aironet 2600i Series Access Point AIR-CAP2602I-A-K9 User manual, User manual Cisco Aironet 2600i Series Access Point AIR-CAP2602I-A-K9, Cisco, Aironet, 2600i, Series, Access, Point, AIR-CAP2602I


User manual for Cisco Aironet 2600i Series Access Point AIR-CAP2602I-A-K9

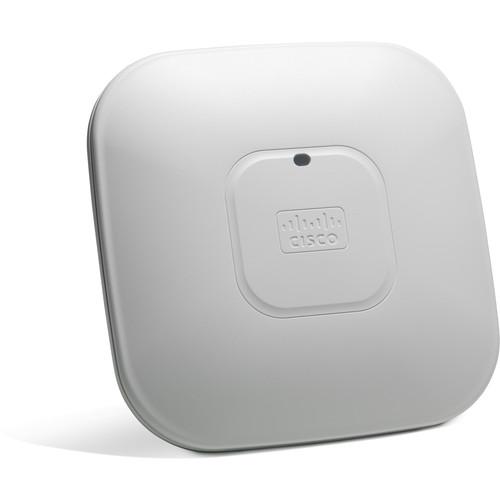

Cisco Aironet 2600i Series Access Point AIR-CAP2602I-A-K9
  • Manufacturer: Cisco
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Access Points
  • Safety instructions
  • Startup and operation of the wireless access points
  • Tips for setting up your Cisco
  • Settings and expert assistance
  • Contact Cisco service
  • Troubleshooting
  • Warranty information
  • Price: 745 USD
We recommend checking out our discussion threads on the Cisco Aironet 2600i Series Access Point AIR-CAP2602I-A-K9, which address similar problems with connecting and setting up Wireless Access Points Cisco.



User manual for the Cisco Aironet 2600i Series Access Point AIR-CAP2602I-A-K9

The user manual for the Cisco Aironet 2600i Series Access Point AIR-CAP2602I-A-K9 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.

The Aironet 2600i Series Access Point from Cisco is an 802.11n-based access point designed for enterprise networks of any size that need high-performance, secure, and reliable Wi-Fi connectivity for consumer devices. It sustains reliable connections at higher speeds farther from the access point than competing solutions resulting in higher availability of 450 Mb/s data rates. Optimized for consumer devices, this access point accelerates client connections and consumes less of your mobile device's battery power.
If you own a Cisco wireless access points and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cisco Aironet 2600i Series Access Point AIR-CAP2602I-A-K9 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco Aironet 2600i Series Access Point AIR-CAP2602I-A-K9:
Specifications
    802.11n Version 2.0 (and Related) Capabilities
    3 x 4 Multiple-Input Multiple-Output (MIMO) with two spatial streams
    Maximal Ratio Combining (MRC)
    802.11n and 802.11a/g beamforming
    20 and 40 MHz channels
    PHY data rates up to 450 Mb/s (40 MHz with 5 GHz)
    Packet Aggregation: Aggregated MAC Protocol Data Unit (A-MPDU) (Tx/Rx), Aggregated MAC Protocol Service Unit (A-MSDU) (Tx/Rx)
    802.11 Dynamic Frequency Selection (DFS) (Bin 5)
    Cyclic Shift Diversity (CSD) support
    Frequency Band and 20 MHz Operating Channels A Regulatory Domain:
    2.412 to 2.462 GHz, 11 channels
    5.180 to 5.320 GHz, 8 channels
    5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz)
    5.745 to 5.825 GHz, 5 channels
    Max Transmit Power 2.4 GHz: 802.11b/802.11g/802.11n (HT20)
    22 dBm (3 antennas)

    5 GHz: 802.11a/802.11n (HT20)/802.11n (HT40)
    23 dBm: 4 antennas

    The maximum power setting will vary by channel and according to individual country regulations.

    Available Total Transmit Power Settings 2.4 GHz
    22 dBm (160 mW)
    19 dBm (80 mW)
    16 dBm (40 mW)
    13 dBm (20 mW)
    10 dBm (10 mW)
    7 dBm (5 mW)
    4 dBm (2.5 mW)

    5 GHz
    23 dBm (200 mW)
    20 dBm (100 mW)
    17 dBm (50 mW)
    14 dBm (25 mW)
    11 dBm (12.5 mW)
    8 dBm (6.25 mW)
    5 dBm (3.13 mW)

    The maximum power setting will vary by channel and according to individual country regulations.

    Integrated Antenna 2.4 GHz, gain 4.0 dBi, horizontal beamwidth 360°
    5 GHz, gain 4.0 dBi, horizontal beamwidth 360°
    External Antennas Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
    Cisco offers 802.11n antennas delivering optimal coverage for a variety of deployment scenarios (sold separately)
    Interfaces 10/100/1000BASE-T autosensing (RJ-45)
    Management console port (RJ-45)
    System Memory 256 MB DRAM
    32 MB flash
    Power Requirements Input: AP2600: 44 to 57 VDC
    Power Supply and Power Injector: 100 to 240 VAC, 50 to 60 Hz
    Powering Options 802.3af Ethernet switch
    Cisco AP2600 power injectors (AIR-PWRINJ4 =)
    Cisco AP2600 local power supply (AIR-PWR-B=)
    Power Draw AP2600: 12.95 W

    When deployed using PoE, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable.

    Software Cisco Unified Wireless Network Software Release 7.2.110 or later
    Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
    Temperature Operating: 32 to 104°F (0 to 40°C)
    Storage: -22 to 158°F (-30 to 70°C)
    Humidity Operating: 10 to 90% (non-condensing)
    Altitude Test Operating: 77°F (25°C), 15,000' (4,572 m)
    Storage: 104°F (40°C), 9,843' (3,000 m)
    Compliance Safety: UL 60950-1
    CAN/CSA-C22.2 No. 60950-1
    UL 2043
    IEC 60950-1
    EN 60950-1
    Radio Approvals:
    FCC Part 15.247, 15.407
    RSS-210 (Canada)
    EN 300.328, EN 301.893 (Europe)
    ARIB-STD 66 (Japan)
    ARIB-STD T71 (Japan)
    AS/NZS 4268.2003 (Australia and New Zealand)
    EMI and susceptibility (Class B)
    FCC Part 15.107 and 15.109
    ICES-003 (Canada)
    VCCI (Japan)
    EN 301.489-1 and -17 (Europe)
    EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
    IEEE Standard:
    IEEE 802.11a/b/g, IEEE 802.11n, IEEE 802.11h, IEEE 802.11d
    Security:
    802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
    802.1X
    Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)
    EAP Types:
    Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)
    EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
    Protected EAP (PEAP) v0 or EAP-MSCHAPv2
    Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST)
    PEAPv1 or AP-Generic Token Card (GTC)
    EAP-Subscriber Identity Module (SIM) Multimedia
    Wi-Fi Multimedia (WMM)
    Others
    FCC Bulletin OET-65C
    RSS-102
    Dimensions (L x W x H) 8.7 x 8.7 x 2.1" (22.1 x 22.1 x 5.4 cm) (without mounting bracket)
    Weight 2.3 lb (1.0 kg)
    Packaging Info
    Package Weight 3.8 lb
    Box Dimensions (LxWxH) 10.1 x 10.0 x 3.7"
    The user manual for the Cisco Aironet 2600i Series Access Point AIR-CAP2602I-A-K9 can be downloaded in .pdf format if it did not come with your new wireless access points, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cisco users keep a unique electronic library for Cisco wireless access pointss, where you can use our link to download the user manual for the Cisco Aironet 2600i Series Access Point AIR-CAP2602I-A-K9.

    The user manual lists all of the functions of the Cisco Aironet 2600i Series Access Point AIR-CAP2602I-A-K9, all the basic and advanced features and tells you how to use the wireless access points. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cisco service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cisco Aironet 2600i Series Access Point AIR-CAP2602I-A-K9. User manuals are also available on the Cisco website under Computers & Solutions - Networking - Wireless Access Points.
