User manual for the Cisco Aironet 2702i Series Access Point AIR-CAP2702I-A-K9
The user manual for the Cisco Aironet 2702i Series Access Point AIR-CAP2702I-A-K9 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.

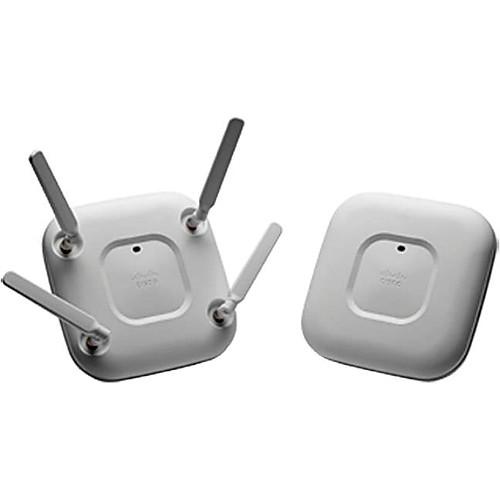

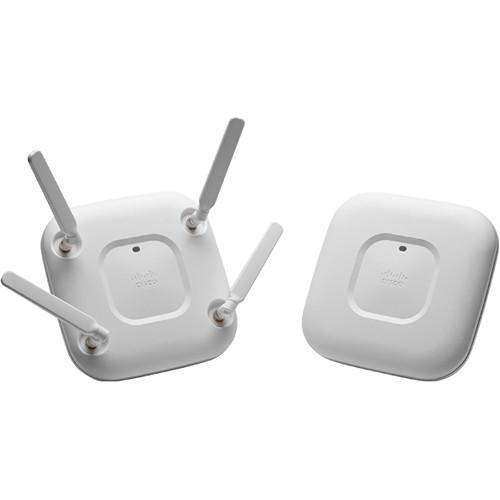

With support for a theoretical connection rate of up to 1.3 Gbps, the Aironet 2702i Series Access Point with Internal Antennas from Cisco is designed to provide enhanced wireless connectivity to a variety of devices including smartphones, tablets, computers, and more thanks to integrated multiple-input-multiple-output technology. This technology utilizes multiple antennas to produce three spatial streams for a more stable, reliable wireless connection. This Cisco access point also features Optimized AP Roaming to streamline the process of selecting and switching to the access point offering the strongest signal.
If you own a Cisco wireless access points and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Cisco Aironet 2702i Series Access Point AIR-CAP2702I-A-K9 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco Aironet 2702i Series Access Point AIR-CAP2702I-A-K9:
802.11n
3x4 MIMO with three spatial streams Maximal Ratio Combining (MRC) 802.11n and 802.11a/g beamforming 20 and 40 MHz channels PHY data rates up to 450 Mb/s (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) support
802.11ac
3 x 4 MIMO with three spatial streams Maximal Ratio Combining (MRC) 802.11ac beamforming 20-, 40-, and 80 MHz channels PHY data rates up to 1.3 Gb/s (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
Frequency Band and 20 MHz Operating Channels
A Regulatory Domain: 2.412 to 2.462 GHz, 11 channels 5.180 to 5.320 GHz, 8 channels 5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz, 5 channels
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details
Integrated Antenna
2.4 GHz, gain 4.0 dBi, horizontal beamwidth 360° 5 GHz, gain 4.0 dBi, horizontal beamwidth 360°
Interfaces
2 x 10/100/1000BASE-T auto-sensing (RJ-45) Management console port (RJ-45)
System Memory
512 MB DRAM 64 MB flash
Power Requirements
Input: AP2600: 44 to 57 VDC Power Supply and Power Injector: 100 to 240 VAC, 50 to 60 Hz
Power Draw
AP2700: 15 W
Powering Options
802.3at PoE+ Enhanced PoE Cisco AP2700 power injectors (AIR-PWRINJ4=) Cisco AP2700 local power supply (AIR-PWR-B=)
Software
Cisco Unified Wireless Network Software Release 7.6MR2 or later
Indicators
Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Temperature
Operating: 32 to 104°F (0 to 40°C) Storage: -22 to +158°F (-30 to +70°C)
Humidity
Operating: 10 to 90% (non-condensing)
Altitude Test
Operating: 104°F (40°C), 9,843' (3,000 m) Storage: 77°F (25°C), 15,000' (4,572 m)
Compliance
Safety UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 EN 50155
Radio approvals: FCC Part 15.247, 15.407 RSS-210 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI and susceptibility (Class B) FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 and -17 (Europe) EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
The user manual for the Cisco Aironet 2702i Series Access Point AIR-CAP2702I-A-K9 can be downloaded in .pdf
format if it did not come with your new wireless access points, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Cisco users keep a unique electronic library
for Cisco wireless access pointss,
where you can use our link to download the user manual for the Cisco Aironet 2702i Series Access Point AIR-CAP2702I-A-K9.
The user manual lists all of the functions of the Cisco Aironet 2702i Series Access Point AIR-CAP2702I-A-K9,
all the basic and advanced features and tells you how to use the wireless access points.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Cisco service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Cisco Aironet 2702i Series Access Point AIR-CAP2702I-A-K9. User manuals are also
available on the Cisco website under Computers & Solutions - Networking - Wireless Access Points.
