User manual for the Cisco SF300-24 Managed 24-Port 10/100 Ethernet SRW224G4-K9-NA
The user manual for the Cisco SF300-24 Managed 24-Port 10/100 Ethernet SRW224G4-K9-NA provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

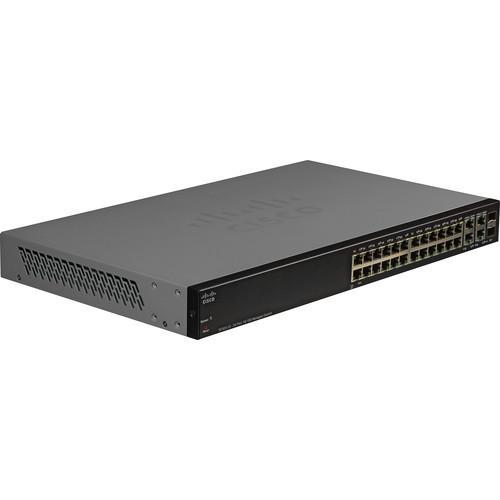

A stellar addition to your business, the SF300-24 Managed 24-Port 10/100 Ethernet Switch from Cisco is a feature-packed, 24-Port Fast Ethernet switch for your network. Beyond these ports, this switch also features four Gigabit Ethernet ports, two of which can operate as either mini-GBIC Ethernet or as standard RJ-45 Ethernet gigabit connections. With these particular ports, you can connect gigabit or fiber optic devices to the switch.
Aside from hardware, this switch is easy to setup and configure while still offering you advanced features for more demanding network applications. The switch features QoS so you can prioritize more important network traffic, such as VoIP or streaming video. In addition, with the switch you can setup access control lists to restrict sensitive portions of the network from unauthorized users. You can also setup guest VLANs, granting non-employees limited access to your network. As a safeguard for your business operations, this switch separates your more important network traffic from the traffic on your guest VLANs.
In addition, the switch features static routing/Layer 3 switching between VLANs. In turn, this allows you to segment your network into separate workgroups and communicate across VLANs without degrading the performance of applications run on these VLANs. You can also use this or multiple switches to manage your internal network while devoting your network's router to external traffic and security. Also, in terms of management, this switch supports IPv6, so as more products and services switch to this Internet Protocol, you'll be ready.
|
If you own a Cisco network switches, bridges & hubs and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Cisco SF300-24 Managed 24-Port 10/100 Ethernet SRW224G4-K9-NA in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Cisco SF300-24 Managed 24-Port 10/100 Ethernet SRW224G4-K9-NA:
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP),IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1350, RFC 1533, RFC 1541, RFC 1542, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2576, RFC 4330, RFC 1213, RFC 1215, RFC 1286, RFC 1442, RFC 1451, RFC 1493, RFC 1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 1157, RFC 1493, RFC 1215, RFC 3416 | | Ports | 24x RJ-45 Fast Ethernet
2x RJ-45 Gigabit Ethernet
2x RJ-45 + SFP Gigabit Ethernet Combo Ports | | Speed | Switching Capacity in Gigabits per Second (Gbps): 12.8
Capacity in Millions of Packets per Second (mpps) with each packet being 64-bytes: 9.52 | | MAC Address Table Size | Up to 8000 MAC addresses | | Frame Sizes | Jumbo Frames: up to 10 KB supported on 10/100 and Gigabit interfaces | | Switching Method | Managed | | Layer 2 Switching | Spanning Tree Protocol (STP):
Standard 802.1d Spanning Tree support
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default
Multiple Spanning Tree instances using 802.1s (MSTP)
Port grouping:
Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Up to 8 groups
Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN:
Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs)
Port-based and 802.1Q tag-based VLANs
MAC-based VLAN
Management VLAN
Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks
Guest VLAN
Unauthenticated VLAN
Voice Lan:
Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS
Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP):
Protocols for automatically propagating and configuring VLANs in a bridged domain
Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2:
Relay of DHCP traffic to DHCP server in different VLAN. Works with DHCP Option 82
Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping:
IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups (source-specific multicasting is also supported)
IGMP Querier
IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
Head-of-line (HOL) blocking:
HOL blocking prevention | | Layer 3 | IPv4 Routing:
Wirespeed routing of IPv4 packets
Up to 32 static routes and up to 32 IP interfaces
Classless Inter-Domain Routing (CIDR):
Support for CIDR
DHCP relay at Layer 3:
Relay of DHCP traffic across IP domains
User Datagram Protocol (UDP) relay:
Relay of broadcast information across Layer 3 domains for application discovery or relaying of BootP/DHCP packets | | Security | Secure Shell Protocol (SSH):
SSH secures Telnet traffic to and from the switch; SSH v1 and v2 are supported
Secure Sockets Layer (SSL):
SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch
IEEE 802.1X (Authenticator role):
802.1X: RADIUS authentication and accounting, MD5 hash; guest VLAN; unauthenticated VLAN, single/multiple host mode and single/multiple sessions
Supports time-based 802.1X
Dynamic VLAN assignment
Layer 3 isolation:
Allow / disallow routing between IP subnets or directly connected IP networks
Layer 2 isolation Private VLAN Edge (PVE) with community VLAN:
PVE (also known as protected ports) provides Layer 2 isolation between devices in the same VLAN, supports multiple uplinks
Port security:
Locks MAC addresses to ports, and limits the number of learned MAC addresses
RADIUS/TACACS+:
Supports RADIUS and TACACS authentication. Switch functions as a client
Storm control:
Broadcast, multicast, and unknown unicast
DoS prevention:
DoS attack prevention
Congestion avoidance:
A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization
ACLs:
Support for up to 512 rules
Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP)/IP precedence, TCP/ UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag | | Quality of Service | Priority Levels: 4 hardware queues
Scheduling:
Strict priority and weighted round-robin (WRR)
Queue assignment based on DSCP and class of service (802.1p/CoS)
Class of Service:
Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/type of service (ToS)/DSCP based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS
Rate Limiting:
Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based | | IPv6 | IPv6:
IPv6 host mode
IPv6 over Etheret
Dual IPv6/IPv4 stack
IPv6 neighbor and router discovery (ND)
IPv6 stateless address auto-configuration
Path maximum transmission unit (MTU) discovery
Duplicate address detection (DAD)
ICMP version 6
IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol(ISATAP) support
IPv6 QoS
Prioritize IPv6 packets in hardware
IPv6 ACL
Drop or rate limit IPv6 packets in hardware
Multicast Listener Discovery (MLD) snooping
Deliver IPv6 multicast packets only to the required receivers
IPv6 applications
Web/SSL, Telnet server/SSH, ping, traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), SNMP, RADIUS, syslog, DNS client, protocol-based VLANs
IPv6 RFCs supported
RFC 2463 - ICMP version 6
RFC 3513 - IPv6 address architecture
RFC 4291 - IPv6 addressing architecture
RFC 2460 - IPv6 specification
RFC 2461 - Neighbor discovery for IPv6
RFC 2462 - IPv6 stateless address auto-configuration
RFC 1981 - Path MTU discovery
RFC 4007 - IPv6 scoped address architecture
RFC 3484 - Default address selection mechanism
RFC 4214 - ISATAP tunneling
RFC 4293 - MIB IPv6: Textual conventions and general group
RFC 3595 - Textual conventions for IPv6 flow label | | Cable | Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000 BASE-T | | Buttons | Reset button | | LED | System, Link/Act, PoE, Speed | | Memory | CPU: 128 MB
Flash: 16 MB | | Buffer | Packet Buffer: 4 Mb | | Management | Web user interface:
Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, system dashboard, system maintenance, and monitoring
Remote Monitoring (RMON):
Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
IPv4 and IPv6 dual stack:
Coexistence of both protocol stacks to ease migration
Firmware upgrade:
• Web browser upgrade (HTTP/HTTPS) and TFTP
• Upgrade can be initiated through console port as well
• Dual images for resilient firmware upgrades
Port mirroring:
Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port. A single session is supported
VLAN mirroring:
Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 8 source VLANs can be mirrored to one destination port. A single session is supported
DHCP (Options 66, 67, 82, 129, and 150):
DHCP Options facilitate tighter control from a central point (DHCP server) to obtain IP address, auto-configuration (with configuration file download), and DHCP relay
Text-editable config files:
Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment
Smartports:
Simplified configuration of QoS and security capabilities
Secure Copy:
Securely transfer files to and from the switch
Textview CLI:
Scriptable command-line interface
Cloud Services:
Support for Small Business Toolbar application
Localization:
Localization of GUI and documentation into multiple languages
Other management:
Traceroute; single IP management; HTTP/HTTPS; SSH; RADIUS; port mirroring; TFTP upgrade; DHCP client; BOOTP; SNTP; Xmodem upgrade; cable diagnostics; ping; syslog; Telnet client (SSH secure support)
SNMP:
SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM)
SNMP MIBS: Please consult the manufacturer's website for an extensive list of supported MIBS | | Fan | Fanless | | Acoustic Noise | N/A | | MTBF | 282775.3 | | Power Save Mode | Energy Detect:
Automatically turns off power off on Gigabit Ethernet RJ-45 port when detecting link down
Active mode is resumed without loss of any packets when the switch detects the link up
Cable Link Detection: Adjusts the signal strength based on the cable length. Reduces the power consumption for cables shorter than 10m | | Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A | | Form Factor | 1U | | System Requirements | Minimum
Web browser: Mozilla Firefox version 2.5 or later; Microsoft Internet Explorer version 6 or later
Category 5 Ethernet network cable
TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in the network | | Environmental Requirements | Operating Temperature: 32° to 104°F / 0° to 40°C
Storage Temperature: -4° to 158°F / -20° to 70°C
Operating Humidity: 10% to 90%, relative, noncondensing
Storage Humidity: 10% to 90%, relative, noncondensing | | Power Requirements | 100-240V 47-63 Hz, internal, universal | | Power Consumption | At most:
110V = 16.3W
220V = 16.9W | | Dimensions (WxHxD) | 17.3 x 1.45 x 13.78" / 44 x 4.44 x 25.7 cm | | Weight | 6.81 lb / 3.09 kg | | Package Weight | 9.45 lb | | Box Dimensions (LxWxH) | 21.3 x 15.2 x 4.2" | |
