User manual Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA

Operating instructions and pdf manual for use - Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA User manual, User manual Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA, Cisco, SG200-50P, 50-Port, 10/100/1000, Gigabit, PoE


User manual for Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA

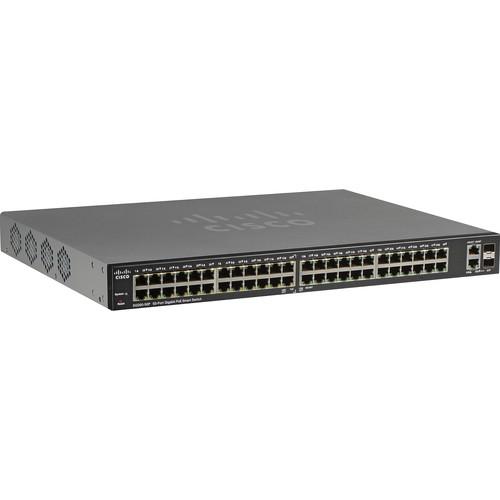

Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA
  • Manufacturer: Cisco
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Switches, Bridges & Hubs
  • Safety instructions
  • Startup and operation of the network switches, bridges & hubs
  • Tips for setting up your Cisco
  • Settings and expert assistance
  • Contact Cisco service
  • Troubleshooting
  • Warranty information
  • Price: 652 USD
We recommend checking out our discussion threads on the Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA, which address similar problems with connecting and setting up Network Switches, Bridges & Hubs Cisco.



User manual for the Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA

The user manual for the Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

The Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE Smart Switch lets you achieve business-class network security and performance at an affordable price. It provides an ideal solution when you require a reliable solution to share network resources and connect computers, printers and servers.

The Cisco SG200-50P smart switch provides basic management, security and quality-of-service features beyond those of an unmanaged or consumer-grade switch, at a lower cost than managed switches. And with an easy-to-use web user interface, Cisco Discovery Protocol and Cisco Smartports you can deploy and configure a rock-solid business network in minutes.
If you own a Cisco network switches, bridges & hubs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA:
Performance Capacity in Mpps (64-byte packets): 74.41

Switching Capacity in Gbps: 100.0
Layer 2 Switching Spanning Tree Protocol: Standard 802.1d STP support
Fast convergence using 802.1w (Rapid Spanning Tree), enabled by default

Port Grouping: Support for IEEE 802.3ad Link Aggregation Control Protocol
• Up to 8 groups
• Up to 4 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

VLAN: Support for up to 128 VLANs simultaneously (out of 4096 VLAN IDs)
Port-based and 802.1Q tag-based VLANs

Voice VLAN: Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS

Internet Group Management Protocol Versions 1 and 2 Snooping: Internet Group Management Protocol limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups

Head-of-Line (HOL) Blocking: Head-of-line blocking
Security IEEE 802.1X (Authenticator Role): RADIUS authentication and accounting, MD5 hash

Port Security: Locks MAC addresses to ports and limits the number of learned MAC addresses

Storm Control: Broadcast, multicast and unknown unicast
Quality of Service Priority Levels: 4 hardware queues

Scheduling: Strict priority and weighted round-robin
Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)

Class of Service: Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated Services (DiffServ)

Rate Limiting: Ingress policer, per VLAN and per port
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1350, RFC 1533, RFC 1541, RFC 1542, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 2618
IPv6 IPv6: IPv6 host mode
IPv6 over Ethernet
Dual IPv6/IPv4 stack
IPv6 neighbor and router discovery (ND)
IPv6 stateless address auto-configuration
Path maximum transmission unit discovery
Duplicate address detection
Internet Control Message Protocol version 6
IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol support

IPv6 QoS: Prioritize IPv6 packets in hardware

Multicast Listener Discovery Snooping: Deliver IPv6 multicast packets only to the required receivers

IPv6 Applications: Web, ping, Simple Network Time Protocol, Trivial File Transfer Protocol, RADIUS, syslog, DNS client

IPv6 RFCs Supported: RFC 2463: ICMP version 6
RFC 3513: IPv6 address architecture
RFC 4291: IPv6 addressing architecture
RFC 2460: IPv6 specification
RFC 2461: Neighbor discovery for IPv6
RFC 2462: IPv6 stateless address auto-configuration
RFC 1981: Path maximum transmission unit discovery
RFC 4007: IPv6 scoped address architecture
RFC 3484: Default address selection mechanism
RFC 4214: ISATAP tunneling
RFC 4293: MIB IPv6: Textual conventions and general group
RFC 3595: Textual conventions for IPv6 flow label
Management Web User Interface: Built-in switch configuration utility for easy browser-based device configuration (HTTP)
Supports configuration, system dashboard, system maintenance and monitoring

Remote Monitoring: Embedded RMON software agent supports one RMON group (statistics) for enhanced traffic management, monitoring and analysis

IPv4 and IPv6 Dual Stack: Coexistence of both protocol stacks to ease migration

Firmware Upgrade: Web browser upgrade (HTTP) and TFTP

Port Mirroring: Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe
Up to 4 source ports can be mirrored to one destination port. A single session is supported

VLAN Mirroring: Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe
Up to 4 source VLANs can be mirrored to one destination port. A single session is supported

Dynamic Host Configuration Protocol (Options 66 and 67): Dynamic Host Configuration Protocol options facilitate tighter control from a central point (DHCP server) to obtain IP address, auto-configuration (with configuration file download)

Text-Editable Config Files: Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment

Smartports: Simplified configuration of QoS and security capabilities

Cloud Services: Support for FindIT Network Discovery Utility

Localization: Localization of GUI and documentation into multiple languages

Other Management: HTTP, RADIUS, port mirroring, TFTP upgrade, DHCP client, BOOTP, SNTP, ping, syslog
Power Efficiency Energy Detect: Automatically turns off power on Gigabit Ethernet RJ-45 port when the switch detects a link down
Active mode is resumed without loss of any packets when the switch detects the link is back up

Cable Length Detection: Adjusts the signal strength based on the cable length. Reduces the power consumption for cables shorter than 10 m
General Features Jumbo Frames: Frame sizes up to 10 KB supported on Gigabit interfaces

MAC Table: Up to 8000 MAC addresses
Discovery Link Layer Discovery Protocol (802.1ab) with LLDP-MED Extensions: Link Layer Discovery Protocol allows the switch to advertise its identification, configuration and capabilities to neighboring devices, which store the data in an MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones

Cisco Discovery Protocol: The switch advertises itself using the Cisco Discovery Protocol
Power Over Ethernet Power Dedicated to PoE: 180W

Number of Ports That Support PoE: 24
Power Consumption Power Savings Mode: Short reach plus Energy Detect

Power Consumption Worst Case: 110V/0.749A/76.4W
220V/0.412A/78.3W

Heat Dissipation (BTU/hr): 267.2
Ports Total System Ports: 50 Gigabit Ethernet ports
48 Gigabit Ethernet RJ-45 ports
2 Gigabit Ethernet combo mini-GBIC ports* (RJ-45 + SFP)

*Each combo mini-GBIC port has one 10/100/1000 Ethernet port and one mini-GBIC/SFP Gigabit Ethernet slot, with one port active at a time

Buttons Reset button
Cabling Type Unshielded twisted pair Category 5 or better for 10BASE-T/100BASE-TX; Unshielded twisted pair Category 5 Ethernet or better for 1000BASE-T
LEDs System, Link/Act, PoE, Speed
Flash 16 MB
CPU 128 MB memory
Packet Buffer Memory 2 @ 8 MB
Power Supply 110V-240V, 12V/8.5A, 50-60 HZ
100V-240V, 50V/2A, 50-60 HZ
Fan 4
Acoustic Noise 30°C = 42.5 dB
40°C = 54.7 dB
MTBF @ 40°C (hours): 208,976
Certifications UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Environmental Requirements Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -4 to 158°F (-20 to 70°C)
Operating Humidity: 10 to 90%, relative, non condensing
Storage Humidity: 10 to 90%, relative, non condensing
MINIMUM REQUIREMENTS Web Browser: Mozilla Firefox version 2.5 or later; Microsoft Internet Explorer version 6 or later
Category 5 Ethernet network cable
TCP/IP, network adapter and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in the network
Dimensions (DxWxH) 13.8 x 17.35 x 1.73" (350 x 440 x 44 mm)
Weight 12.06 lb (5.47 kg)
Packaging Info
Package Weight 15.05 lb
Box Dimensions (LxWxH) 21.3 x 18.5 x 5.2"
The user manual for the Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA can be downloaded in .pdf format if it did not come with your new network switches, bridges & hubs, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cisco users keep a unique electronic library for Cisco network switches, bridges & hubss, where you can use our link to download the user manual for the Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA.

The user manual lists all of the functions of the Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA, all the basic and advanced features and tells you how to use the network switches, bridges & hubs. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cisco service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA. User manuals are also available on the Cisco website under Computers & Solutions - Networking - Network Switches, Bridges & Hubs.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA

Post new comment to Cisco SG200-50P 50-Port 10/100/1000 Gigabit PoE SLM2048PT-NA

Subject: cannot opem config utility
Date: 18.07.2022 21:10:20Author: Edward McGinnniss
I enter the ip address 192.168.1.254 but it times out and I cannot get into the configuration utility.
