User manual Da-Lite 72801E Designer Electrol Motorized Projection 72801E

Operating instructions and pdf manual for use - Da-Lite 72801E Designer Electrol Motorized Projection 72801E User manual, User manual Da-Lite 72801E Designer Electrol Motorized Projection 72801E, Da-Lite, 72801E, Designer, Electrol, Motorized, Proj


User manual for Da-Lite 72801E Designer Electrol Motorized Projection 72801E

Da-Lite 72801E Designer Electrol Motorized Projection 72801E
  • Manufacturer: Da-Lite
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projection Screens - Electric Screens (Square & 4:3 Formats)
  • Safety instructions
  • Startup and operation of the electric screens (square & 4:3 formats)
  • Tips for setting up your Da-Lite
  • Settings and expert assistance
  • Contact Da-Lite service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Da-Lite 72801E Designer Electrol Motorized Projection 72801E, which address similar problems with connecting and setting up Electric Screens (Square & 4:3 Formats) Da-Lite.



User manual for the Da-Lite 72801E Designer Electrol Motorized Projection 72801E

The user manual for the Da-Lite 72801E Designer Electrol Motorized Projection 72801E provides necessary instructions for the proper use of the product A/V Presentation - Projection Screens - Electric Screens (Square & 4:3 Formats).

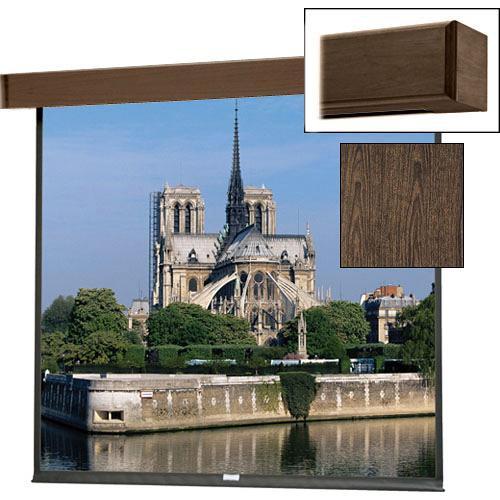

The Dalite 70 x 70" Designer Electrol Motorized Projection Screen offers you a choice of stylish case finishes in either laminates or veneers. In this way, you can choose your screen design to match the decor of your venue. This type of screen is a great choice for a business environment where aesthetics are crucial.

The motor has a sophisticated braking system that is designed to automatically and precisely stop the picture surface in the "up" or "down" position thereby preventing "coasting". In addition, the motor is an oiled-for-life design with an automatic thermal cutoff that prevents burnouts. The in-the-roller motor is designed to provide reduced noise during operation.

One of the best features of this screen is the easy access to both the motor and fabric assemblies. This means that should you ever decide to change the screen surface, you will not have to rip out the entire installation. This reliable and fashionable screen comes with a Decora three-position wall switch.
If you own a Da-Lite electric screens (square & 4:3 formats) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Da-Lite 72801E Designer Electrol Motorized Projection 72801E in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Da-Lite 72801E Designer Electrol Motorized Projection 72801E:
Specifications
    Type
    Style Designer Electrol
    Front/Rear Projection Front
    Mount Wall or Ceiling
    Finish Matte White; flame retardant and mildew resistant fiberglass
    Tension Control Not Applicable
    Keystone Control Not Applicable
    Dimensions
    Overall Size Not Specified by Manufacturer
    Image Size 70 x 70" (1.8 x 1.8 m)
    Diagonal 99" (2.5 m)
    Format Square (Audio-Visual)
    Aspect Ratio 1:1
    Masking Options Standard black masking borders
    Controls
    Voltage 220V, 50Hz

    This item is wired for 220V, European voltage ONLY

    Integrated Control Motor mounted inside the roller with a patented noise silencer
    Pre-set but adjustable limit switches to automatically stop picture surface in the "up" and "down" positions
    Control Options 3-position control switch with cover plate (included)
    Casing
    Color Gunstock Walnut
    Material Wood (finished in either veneer or laminate)
    Length 81" (2.1 m)
    General
    Shipping Weight 60 lbs (27.2kg)
    Packaging Info
    Package Weight 56.0 lb
    Box Dimensions (LxWxH) 95.0 x 9.0 x 8.0"
    The user manual for the Da-Lite 72801E Designer Electrol Motorized Projection 72801E can be downloaded in .pdf format if it did not come with your new electric screens (square & 4:3 formats), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Da-Lite users keep a unique electronic library for Da-Lite electric screens (square & 4:3 formats)s, where you can use our link to download the user manual for the Da-Lite 72801E Designer Electrol Motorized Projection 72801E.

    The user manual lists all of the functions of the Da-Lite 72801E Designer Electrol Motorized Projection 72801E, all the basic and advanced features and tells you how to use the electric screens (square & 4:3 formats). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Da-Lite service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Da-Lite 72801E Designer Electrol Motorized Projection 72801E. User manuals are also available on the Da-Lite website under A/V Presentation - Projection Screens - Electric Screens (Square & 4:3 Formats).
