User manual for the dB Technologies OPERA 512 DX 2-Way 12" / OPERA 512 DX
The user manual for the dB Technologies OPERA 512 DX 2-Way 12" / OPERA 512 DX provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

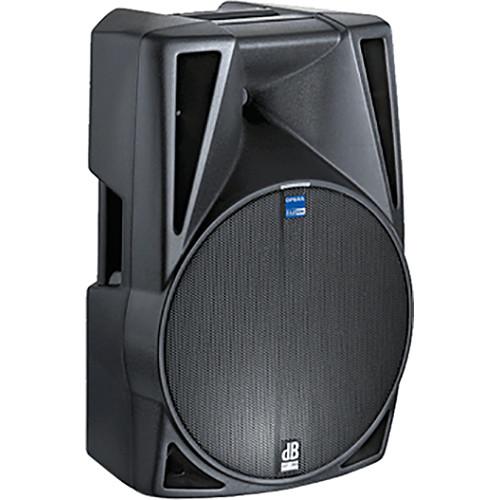

The OPERA 512 DX 2-Way 12” / 1” 400W Active Speaker from dB Technologies is a bi-amped speaker equipped with the DIGIPRO G2 Amplifier that delivers 400W of output power. It renders mid-range and high frequencies with authority, which makes it an ideal choice for live performances. Equipped with a 12” woofer (1.5” voice coil), a 1” compression driver (1” voice coil), and a loaded 80/65 x 60° asymmetric horn, this speaker is ideal for music playback and live performances in small venues.
If you own a dB Technologies pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the dB Technologies OPERA 512 DX 2-Way 12" / OPERA 512 DX in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the dB Technologies OPERA 512 DX 2-Way 12" / OPERA 512 DX:
Specifications
Speaker Type
2-way active speaker
Frequency Response
-10 dB: 59 Hz to 20 kHz +/- 3 dB: 70 Hz to 19 kHz
Max SPL Level
126 dB
HF Amplifier
1" (2.5 cm)
HF Detail
Compression driver
Directivity
80/65 x 60°
Horn
Asymmetrical CD Horn
LF Detail
12" (30.5 cm)
Voice Coil
3" (7.6 cm)
Amplifier
Technology: Digipro Class: Class-D Power PRG: 400 W
Controller
DSP 24-bit/48 kHz
Presets
Flat, processed
Limiter
Dual-active peak, RMS, thermal
Housing
Polyporpylen PP
Angle
Monitor use 43°
Dimensions
17.3 x 26.2 x 14.1" (43.2 x 65.5 x 35.3 cm)
Weight
33 lb (16 kg)
The user manual for the dB Technologies OPERA 512 DX 2-Way 12" / OPERA 512 DX can be downloaded in .pdf
format if it did not come with your new pa speakers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other dB Technologies users keep a unique electronic library
for dB Technologies pa speakerss,
where you can use our link to download the user manual for the dB Technologies OPERA 512 DX 2-Way 12" / OPERA 512 DX.
The user manual lists all of the functions of the dB Technologies OPERA 512 DX 2-Way 12" / OPERA 512 DX,
all the basic and advanced features and tells you how to use the pa speakers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from dB Technologies service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the dB Technologies OPERA 512 DX 2-Way 12" / OPERA 512 DX. User manuals are also
available on the dB Technologies website under Pro Audio - Live Sound - PA Speakers.
