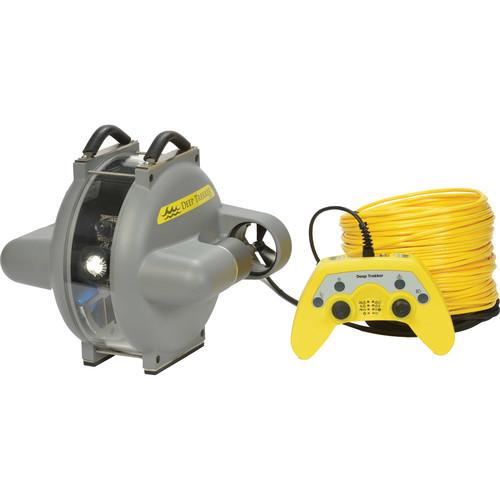

Explore beneath the water's surface and stream live video without getting wet using the DTG2 Underwater ROV Starter Package from Deep Trekker. This portable remote-operated vehicle allows you to study marine life and environments and perform inspections under your boat, and has a 246' depth rating. It features a camera with a 700-line resolution. The onboard rechargeable batteries and handheld controller with 5.6" LCD and RCA output let you bid adieu to tethered topside boxes and eliminate power losses due to long feeds. An internal pitch system enables horizontal and vertical motion using only 2 thrusters.
The DTG2's controller is connected to a 164' low-drag polyurethane tether with a small 4.0mm diameter and a breaking strength of at least 90 lb. This allows you to lower the ROV into the water or pull it out and back onto your boat. The vehicle's on-board sensors monitor the motor's status and will immediately cut power if there is a fault. Normal battery life is 6 to 8 hr. An included smart charger plugs into the back of the ROV when above water and recharges the batteries in about 3.0 hr. A second included smart charger rejuvenates the controller.
The center viewing window goes all the way around the ROV, covering 360°, and acts as the lens port for the camera. Thanks to the rotation of the camera, the ROV has an effective 270° vertical field of view. Additionally, an LED floodlight tracks the camera for better illumination.
The ROV requires virtually no maintenance other than a freshwater rinse after a saltwater dive. Built to last, it has a cast aluminum body. Weights for buoyancy adjustment are included.
If you own a Deep Trekker rovs and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Deep Trekker DTG2 Underwater ROV Starter Package DT-0202-STARTER in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Deep Trekker DTG2 Underwater ROV Starter Package DT-0202-STARTER:
ROV Input Voltage: 19.2 VDC Powered by on-board rechargeable batteries No top side generator or box required Battery run time: 100% Thruster Duty Cycle: 2.0 hr 75% Thruster Duty Cycle: 3.0 hr 50% Thruster Duty Cycle (most common): 4.0 hr 25% Thruster Duty Cycle: 8.0 hr Battery Recharge Time: 3.0-3.5 hr via supplied smart charger Thruster Control: Independent, variable, 100% reversible Controller Input Voltage: Less than 14 VDC LED indicator on charger is red when charging is in progress and green when complete
Thruster Controls: Up: Thrust forward Down: Thrust in reverse Right: Turn right Left: Turn left Button: Auto heading (optional) 2nd button: Reset thrusters
Pitch Controls: Up: Pitch up/ascend Down: Pitch down/descend Button: Auto depth (optional) 2nd button: Reset pitch servo To fine-tune pitch/tilt, press and hold reset button and toggle camera down or up button
LCD Controls: On/off Adjustment menu Menu up arrow Menu down arrow Transfer video to optional monitor
Controls for Optional Grabber: Pitch Joystick Right: Rotate counter-clockwise Pitch Joystick Left: Rotate clockwise Buttons for open and close functions
Additional Controls: On/off To straighten out heading when skewed to one side, press and hold reset button and toggle grabber close button Auto shut-down of controller and ROV after several minutes of inactivity
Indicator LEDs
Power on/off, flood light on, low batteries in controller, low batteries in ROV, left thruster stall/error, right thruster stall/error, pitch servo stall/error, communication error (solid) / leak alarm (flashing)
Display
5.6" / 14.2 cm LCD screen Adjustable brightness, tint, color, and contrast Maximum brightness: 150 cd per sq ft / 1600 cd per sq m
Connectivity
Integrated live video feed from ROV's camera RCA output for viewing video Tether connector with strain relief Charging port
