User manual for the DigiTech JamMan Express XT Looping Pedal JMEXTV
The user manual for the DigiTech JamMan Express XT Looping Pedal JMEXTV provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Effects Pedals.

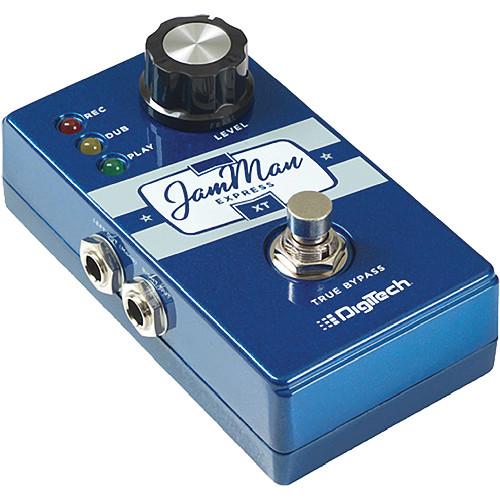

The DigiTech JamMan Express XT Looping Pedal is a hardware looping pedal designed for live performance and recording. The unit enables you to record up to 10 minutes of stereo looping at 24-bit 44.1 kHz sample resolution with unlimited overdubs. The pedal features controls for recording, stopping, playing, undoing, and redoing overdubs as well as a true-bypass footswitch for removing the looper from your signal chain. The device can be powered by a single 9V battery (included) or with an optional power supply. Dedicated LED indicator lights show you the status of the recording, dubbing, and playback functions.
The unit is contained within a durable metal chassis and features an output level knob, a foot switch for all controls, left (mono) and right 1/4" inputs, true stereo left (mono) and right 1/4" outputs, and 1/8" mini IN and OUT ports for synchronizing with a second JamMan Express XT or a JamaMan Solo XT pedal.
|
If you own a DigiTech effects pedals and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the DigiTech JamMan Express XT Looping Pedal JMEXTV in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the DigiTech JamMan Express XT Looping Pedal JMEXTV:
| A/D Conversion | 24 bit | | Sample Rate | 44.1 kHz | | Analog Inputs | 2 x 1/4" unbalanced (R/L)
1/8" JamSync in | | Input Impedance | 550 kΩ mono
1.1 MΩ stereo | | Maximum Input Level | +4 dBu DFS (at unity) | | Audio Pass Through | Each channel maintains analog dry path | | Analog Outputs | 2 x 1/4" unbalanced (R/L)
1/8" JamSync out | | Output Impedance | 100 Ω unbalanced
200 Ω balanced | | Maximum Output Level | +4 dBu DFS | | Battery Life | Up to 2 hours of looping time | | Battery Type | 9 VDC | | Frequency Response | +0/-3 dB from 20 to 20,000 Hz | | Signal to Noise Ratio | > -100 dB | | Consumption | < 2 W | | Current Draw | < 150 mA | | Model | PS0913DC-01 | | Input | 100 to 240 VAC at 50/60 Hz | | Output | 9 VDC at 1.3 A | | Dimensions (L x W x H) | 4.50 x 2.75 x 2.00" (11.4 x 6.99 x 5.08 cm) | | Weight | 0.6 lb (0.3 kg) | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 4.8 x 3.3 x 1.6" | |
The user manual for the DigiTech JamMan Express XT Looping Pedal JMEXTV can be downloaded in .pdf
format if it did not come with your new effects pedals, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other DigiTech users keep a unique electronic library
for DigiTech effects pedalss,
where you can use our link to download the user manual for the DigiTech JamMan Express XT Looping Pedal JMEXTV.
The user manual lists all of the functions of the DigiTech JamMan Express XT Looping Pedal JMEXTV,
all the basic and advanced features and tells you how to use the effects pedals.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from DigiTech service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the DigiTech JamMan Express XT Looping Pedal JMEXTV. User manuals are also
available on the DigiTech website under Pro Audio - Musical Instruments - Effects Pedals.
