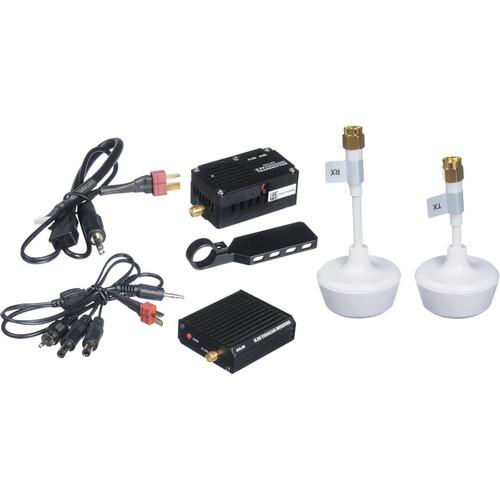

The AVL58 5.8 GHz Video Link Kit is a wireless transmitter (TX) and receiver (RX) set allowing the DJI Phantom Quadcopter to become a true FPV (first-person view) RC aircraft. This kit from DJI features two clover-leaf antennas, video and power cables. Adding wireless video to your Phantom experience takes the guess work out of aerial videography, allowing you to see what the camera sees. Operating on 5.8 GHz and featuring eight selectable channels, the operational range extends as far as 3937' (1,200 m) line of sight.
If you own a DJI dji accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the DJI AVL58 5.8 GHz Video Link Kit CP.AL.000001 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the DJI AVL58 5.8 GHz Video Link Kit CP.AL.000001:
Input (TX): Composite on 3.5 mm Mini Male Type Connector Output (RX): Composite on 3.5 mm Mini Type Connector (Mini to RCA Male Adapter Cable Supplied)
Power Requirements
Transmitter (TX) 1050 mA ± 50mA at 6 V 860 mA ± 50mA at 8 V 680 mA ± 50mA at 10 V 575 mA 50mA at 12 V
Receiver (RX) 160 mA ± 10 mA at 6 V 125 mA ± 10 mA at 8 V 103 mA ± 10 mA at 10 V 90 mA ± 10 mA at 12 V
Antenna Type
2 x 5.8GHz Clover-Leaf Antenna (SMA Connector)
Operational Temperature
-4 to 150°F (-20 to 70 °C)
Dimensions
Transmitter (TX) Without Antenna: 19.69 x 11.81 x 8.66" (50 x 30 x 22 cm)
Receiver (RX) Without Antenna: 21.85 x 18.90 x 6.69" (55.5 x 48 x 17 cm)
