User manual DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001

Operating instructions and pdf manual for use - DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001 User manual, User manual DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001, DJI, Zenmuse, Z15-GH4, Gimbal, Lightbridge, Bund

User manual for DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001

DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001
  • Manufacturer: DJI
  • Basic description and contents of package
  • Product classification: Camcorders - Aerial Imaging & Drones - DJI Accessories
  • Safety instructions
  • Startup and operation of the dji accessories
  • Tips for setting up your DJI
  • Settings and expert assistance
  • Contact DJI service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001, which address similar problems with connecting and setting up DJI Accessories DJI.


User manual for the DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001

The user manual for the DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - DJI Accessories.

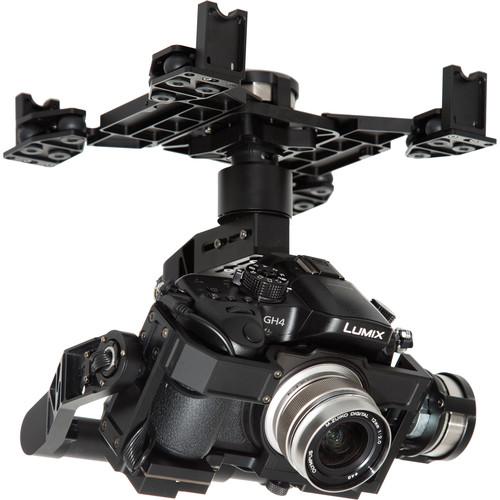

The Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle put together by DJI, provides a way of capturing stabilized aerial video using a Panasonic GH4 camera while relaying a live HD feed to a monitor or mobile device on the ground end. The gimbal is designed to be mounted on larger multi-rotor UAVs such as the DJI S900, S1000, and S1000+. Additionally, the Z15-GH4 is balanced strictly for use with the Olympus M.ZUIKO Digital ED 12mm f/2.0 lens - attaching other lenses may damage the gimbal's servo motors.

For more information on the items in the bundle, please follow the links below.
If you own a DJI dji accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001Download user manual for DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001
(PDF file, 1.36 MB)
Additional parameters of the DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001:
Specifications
    • DJI Zenmuse Z15-GH4 HD 3-Axis Gimbal for Panasonic GH3/GH4
      Supported Camera Panasonic GH4/GH3
      Supported Lens Olympus M.ZUIKO DIGITAL ED 12mm f/2.0 Lens

      Warning! Using other lenses may damage the servo motors
      Control Requirements At least four spare receiver channels (or use dedicated transmitter for two person operation)
      Software Requirements For Assistant Software: Windows 8, 7, XP SP3 -- 32 or 64-bit
      Working Current Static Current: 200 mA at 25 V
      Dynamic Current: 400 mA at 25 V
      Locked-Rotor Current: 4 A at 25 V
      GCU BEC Output 10 A at 12 V
      Transmit Power GCU Wireless Video Transmission: 1 A at 12 V
      Controlled Angle Accuracy ±0.05°
      Maximum Controlled Rotation Speed Pan Axis: ±130°/s
      Tilt Axis: ±130°/s
      Roll Axis ±30°/s
      Controlled Rotation Range Pan Axis Control: ±360°
      Tilt Axis Control: +50° / -140°
      Roll Axis Control: ±40°
      Power Requirements GCU: 4S to 12 S lithium polymer (6S recommended for S800 EVO and S1000)
      Operating Temperature 14 to 122°F / -10 to 50°C
      Dimensions GCU: 2.5 x 1.4 x 0.8" / 64.2 x 34.1 x 19.5 mm
      Weight Gimbal: 2.7 lb / 1.2 kg
      GCU: 2.2 oz / 63 g
      Packaging Info
      Box Dimensions (LxWxH) 9.9 x 9.4 x 9.4"
    • DJI Lightbridge 2.4G Full HD Video Downlink with OSD and Control
      Performance
      Wireless Range Up to 1 mile / 1.7 km (outdoor and unobstructed)
      EIRP 1000 mW
      Receiver Sensitivity (1% PER) -101 dBm to ±2dBm
      Working Frequency 2.4 GHz ISM
      Antenna Gain Air End: 2.0 ±0.7 dBi at 2450 MHz
      Ground End: 5.0 ±0.7 dBi at 2450 MHz
      System Requirements
      Operating System Mobile App: Android 4.1.2 or later
      Recommended Devices Samsung Galaxy Note3 QCOM, N9005, N9006
      Samsung Galaxy Note3 Exynos, N900
      Samsung Galaxy S4
      Samsung Galaxy Mega
      Optimus G Pro
      LG Electronics G2
      Sony Xperia Z (L36h)
      Sony Xperia Z Ultra (XL36h)
      General
      Antenna Connector Air End: MMCX Male
      Ground End: 2 x SMA Male
      Power Requirement Air End: 3S to 6S lithium-polymer (LiPO)
      Ground End: Internal battery or 3S to 6S lithium-polymer (LiPO)
      Power Consumption Air End: 700 mA ±20 mA at 12V
      Ground End: 600 mA ±10 mA at 12V
      Operating Temperature 14 to 122°F / -10 to 50°C
      Dimensions (L x W x H) Air End (without Antennas): 2.7 x 1.9 x 0.8" / 68 x 48 x 21 mm
      Ground End (without Antennas): 4.9 x 3.5 x 0.8" / 125 x 90 x 20 cm
      Weight Air End (without Antennas): 2.5 oz / 71 g
      Ground End (without Antennas): 10.4 oz / 295 g
      Packaging Info
      Box Dimensions (LxWxH) 10.63 x 8.583 x 6.299"
    The user manual for the DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001 can be downloaded in .pdf format if it did not come with your new dji accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other DJI users keep a unique electronic library for DJI dji accessoriess, where you can use our link to download the user manual for the DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001.

    The user manual lists all of the functions of the DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001, all the basic and advanced features and tells you how to use the dji accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from DJI service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the DJI Zenmuse Z15-GH4 Gimbal and Lightbridge Bundle CB.AL.000001. User manuals are also available on the DJI website under Camcorders - Aerial Imaging & Drones - DJI Accessories.
