User manual ecobee 3 Wi-Fi Thermostat EB-STATE3-02

Operating instructions and pdf manual for use - ecobee 3 Wi-Fi Thermostat EB-STATE3-02 User manual, User manual ecobee 3 Wi-Fi Thermostat EB-STATE3-02, ecobee, 3, Wi-Fi, Thermostat, EB-STATE3-02, Video


User manual for ecobee 3 Wi-Fi Thermostat EB-STATE3-02

ecobee  3 Wi-Fi Thermostat EB-STATE3-02
  • Manufacturer: ecobee
  • Basic description and contents of package
  • Product classification: Surveillance - Home Automation - Thermostats
  • Safety instructions
  • Startup and operation of the thermostats
  • Tips for setting up your ecobee
  • Settings and expert assistance
  • Contact ecobee service
  • Troubleshooting
  • Warranty information
  • Price: 245 USD
We recommend checking out our discussion threads on the ecobee 3 Wi-Fi Thermostat EB-STATE3-02, which address similar problems with connecting and setting up Thermostats ecobee.



User manual for the ecobee 3 Wi-Fi Thermostat EB-STATE3-02

The user manual for the ecobee 3 Wi-Fi Thermostat EB-STATE3-02 provides necessary instructions for the proper use of the product Surveillance - Home Automation - Thermostats.

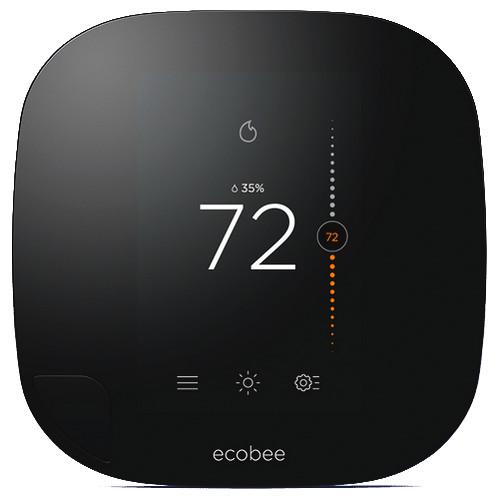

Intuitively monitor and control the heating and cooling in your home with the ecobee3 Wi-Fi Thermostat. Once integrated into your home's Wi-Fi network, you can control this thermostat from anywhere Internet access is available. In addition to accessing the thermostat from a smartphone, tablet, or computer, you can control the ecobee3 via its 3.5" touchscreen color display. This thermostat also includes a remote sensor that allows you to monitor the temperature in a second room. The ecobee3 features a wired installation design and it includes installation hardware.
If you own a ecobee thermostats and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ecobee 3 Wi-Fi Thermostat EB-STATE3-02 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ecobee 3 Wi-Fi Thermostat EB-STATE3-02:
Display Size 3.5" full-color LCD touchscreen
Display Resolution 480 x 320
Connectivity Wi-Fi, 915 MHz, future expansion slot
802.11 b/g/n at 2.4 GHz
WEP 64, WEP 128, WPA and WPA2 encryption methods
DHCP (dynamic) or static IP addressing
168-bit SSL encryption
Bandwidth Approximately 15-20 MB per month
Compatibility Conventional (2H/2C)
Heat pump (4H/2C) including 2-stage auxiliary heat
Gas, oil, electric
Dual fuel support
Humidifier, Dehumidifier, Ventilator, HRV or ERV
Terminals Rc, Y1, O/B, Rh, Y2, ACC +, G, W1 (AUX1), ACC -, C, W2, (AUX2)
Sensors Thermostat: Temperature, Motion, Proximity, Humidity
Remote Sensor: Temperature, Motion
Power Method Wired 24 VAC through terminals C and either Rh or Rc.
Power Extender Kit (included) enables you to power your thermostat without having to run a fifth wire
Power Consumption <3.5 VA
Temperature Range Desired Temperature: 45 to 92°F (7 to 33°C)
Display: 40 to 100°F (5 to 37°C)
Sensitivity: +/- 1°F (+/- 0.5°C)
Operating: 32 to 130°F (0 to 55°C)
Humidity Display: 20 to 90% RH
Sensitivity: +/- 5% RH
Operating: 5 to 95% RH (non-condensing)
RoHS Compliant Yes
Dimensions (HxWxD) Thermostat: 3.9 x 3.9 x 0.9" / 100.0 x 100.0 x 22.0 mm
Remote Sensor: 1.7 x 1.7 x 0.8" / 44.0 x 44.0 x 20.0 mm
Remote Sensor with Stand: 2.1 x 1.7 x 0.8" / 54.0 x 44.0 x 20.0 mm
Packaging Info
Package Weight 1.35 lb
Box Dimensions (LxWxH) 8.1 x 7.8 x 3.6"
The user manual for the ecobee 3 Wi-Fi Thermostat EB-STATE3-02 can be downloaded in .pdf format if it did not come with your new thermostats, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ecobee users keep a unique electronic library for ecobee thermostatss, where you can use our link to download the user manual for the ecobee 3 Wi-Fi Thermostat EB-STATE3-02.

The user manual lists all of the functions of the ecobee 3 Wi-Fi Thermostat EB-STATE3-02, all the basic and advanced features and tells you how to use the thermostats. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ecobee service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ecobee 3 Wi-Fi Thermostat EB-STATE3-02. User manuals are also available on the ecobee website under Surveillance - Home Automation - Thermostats.
