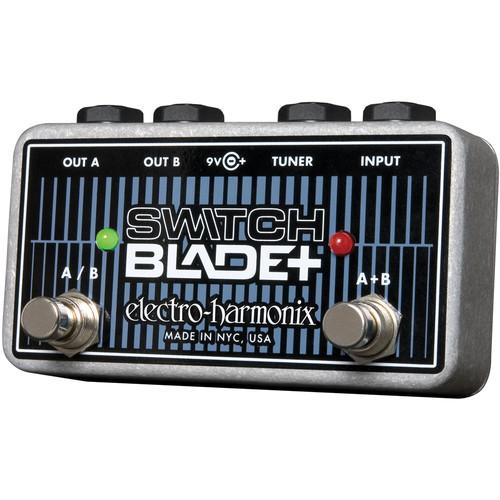

The Switchblade Plus Channel Selector Pedal from Electro-Harmonix offers a convenient solution to a player's switching needs. You can route your signal to either Output A or to Output B, or send it to both outputs at once. You can also connect a tuner or effects pedal to the Tuner output which is hardwired to the Input jack and provides a direct output regardless of the state of the unit. This pedal features a fully passive audio path and active LED indication.
|
If you own a Electro-Harmonix effects pedal accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Electro-Harmonix Switchblade Plus Channel Selector A/B/Y SWITCH in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Electro-Harmonix Switchblade Plus Channel Selector A/B/Y SWITCH:
| Controls | Footswitch, A/B outputs
Footswitch, A+B outputs | | Indicators | LED, A/B Footswitch
LED, A+B Footswitch | | Connectors | 1/4" phone jack, input
1/4" phone jack, tuner output
1/4" phone jack, output A
1/4" phone jack, output B | | Input Impedance | With A+B engaged: 50 kOhms in parallel with combined input impedances of devices connected to Tuner Output, Output A, and Output B jacks
When A+B not engaged: 100 kOhms (A+B not engaged) in parallel with combined input impedances of devices connected to Tuner Output and Output A or Output B jacks | | Power Supply | 9 VDC Battery or 9 VDC eliminator (9.6DC-200BI power supply suggested), or without power (LED indication will not function) | | Dimensions | 2.75 x 4.5 x 2.1" (70 x 115 x 54 mm) | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 5.7 x 3.4 x 2.8" | |
