User manual for the Elinchrom BRX 500 Monolight EL20441.1
The user manual for the Elinchrom BRX 500 Monolight EL20441.1 provides
necessary instructions for the proper use of the product Lighting & Studio - Strobe Lighting - Monolights.

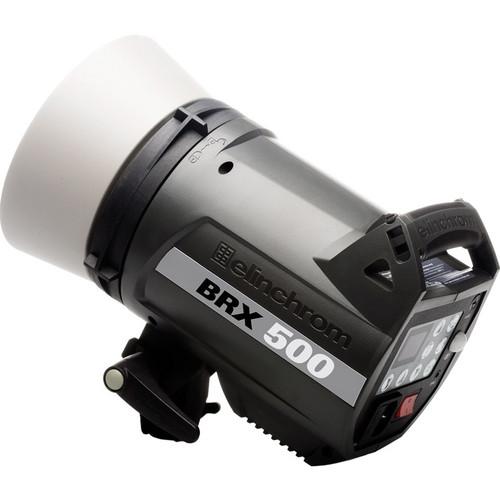

The Elinchrom BRX 500 Monolight is packed with professional and convenience features you'd expect from a company of Elinchrom's caliber. Forget about tripping over PC cords. Although this head accepts one, it also has a built-in EL-Skyport Receiver with eight frequency channels that can handle four distinct groups of flashes. The optional transmitter not only allows you to trigger your flash at distances up to 393' but gives you control of power, on/off, modeling light functions and Speed Sync activation. Free software for Mac and PC computers is available with the transmitter, adding additional features such as Flash-Delay for strobing effects. Add an optional USB Wi-Fi module for computer control. You can even use specially designed apps that allow full remote control via your for iPhone, iPad or iPod Touch.
|
If you own a Elinchrom monolights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Elinchrom BRX 500 Monolight EL20441.1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Elinchrom BRX 500 Monolight EL20441.1:
| Maximum Watt/Seconds | 500 | | Guide Number | f/90 @ 3.3' (1.0 m) @ ISO 100, with 48° reflector | | Recycle Time | 115V: 1.45 sec @ full power, 0.34 sec @ min power
230V: 1.13 sec @ full power, 0.36 sec @ min power | | Flash Duration | Full power @ t0.5: 1/1,558 sec.
1/2 Power @ t0.5: 1/1,395 sec. | | Color Temperature | 5,410K | | Flash Variability | 5.0 f/stops: 1/16 - 1/1 (31 - 500W/s) | | User Replaceable Flashtube | Yes | | Changeable Reflector | Yes | | Modeling Light Wattage | 100W | | Voltage Stabilization | Yes, +/- 0.5% | | Flash Ready Indicator | Ready light, Switchable audible beep, dimming while recycling | | Operating Voltage | 90-260VAC, 50/60Hz | | Sync Voltage | 5.0VDC | | Triggering | Sync cord, optical slave, built-in Skyport receiver
Receiver range: up to 393' (120 m) outdoors, 131' (40 m) indoors | | Circuit Protection | Fuse | | Fan Cooled | Yes | | Auto Dump | Yes | | Dimensions | 10.24 x 7.5 x 5.5" (26 x 19 x 14 cm) | | Weight | 5.5 lb (2.5 kg) | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 15.0 x 8.4 x 7.3" | |
The user manual for the Elinchrom BRX 500 Monolight EL20441.1 can be downloaded in .pdf
format if it did not come with your new monolights, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Elinchrom users keep a unique electronic library
for Elinchrom monolightss,
where you can use our link to download the user manual for the Elinchrom BRX 500 Monolight EL20441.1.
The user manual lists all of the functions of the Elinchrom BRX 500 Monolight EL20441.1,
all the basic and advanced features and tells you how to use the monolights.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Elinchrom service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Elinchrom BRX 500 Monolight EL20441.1. User manuals are also
available on the Elinchrom website under Lighting & Studio - Strobe Lighting - Monolights.
