User manual Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918

Operating instructions and pdf manual for use - Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918 User manual, User manual Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918, Elmo, BOXi, T-200, 150, Lumen, WXGA, Mobile, Projector, 1918,

User manual for Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918
  • Manufacturer: Elmo
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Pico Projectors
  • Safety instructions
  • Startup and operation of the pico projectors
  • Tips for setting up your Elmo
  • Settings and expert assistance
  • Contact Elmo service
  • Troubleshooting
  • Warranty information
  • Price: 379 USD
We recommend checking out our discussion threads on the Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918, which address similar problems with connecting and setting up Pico Projectors Elmo.


User manual for the Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918

The user manual for the Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Pico Projectors.

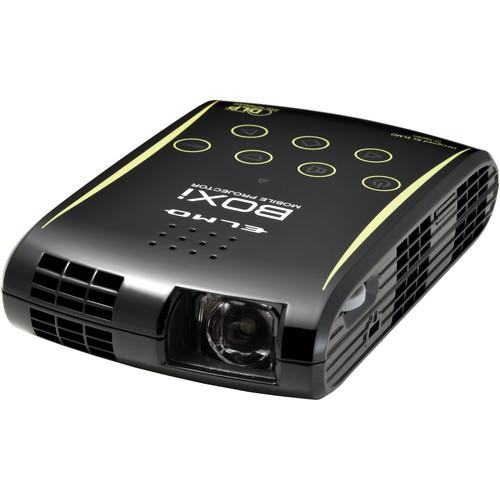

The BOXi T-200 150 Lumen WXGA Mobile Projector from Elmo weighs 10.7 ounces and features a 150 lumen LED light source that, unlike traditional projector lamps, is designed to last the life of the projector - up to 20,000 hours. The single DLP chip delivers a native resolution of 1280 x 800 (WXGA) and the projector can accept non-native resolutions from 480i/576i (NTSC/PAL) up to 1080p Full HD thanks to internal scaling. It is ideally suited for giving presentations to small groups or in-home use, and produces a recommended image size of up to 68" diagonal - depending on ambient light and the projection surface.

Its HDMI input is suitable for a wide range of sources, including computers, smartphones and tablets (with MHL or other suitable adapter), Blu-ray Disc and DVD players, and more. HDCP support means you can also view copy-protected sources such as commercial Blu-rays and certain Internet streaming channels. For audio output there is a built-in one-watt speaker, or you can use the 3.5mm mini jack output to connect headphones or external speakers that have their own amplification.
If you own a Elmo pico projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918Download user manual for Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918
(PDF file, 2.9 MB)
Additional parameters of the Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918:

Go To

Image Display
Display System 1-Chip DLP
Native Resolution WXGA - 1280 x 800
Format NTSC
PAL
HDTV Compatibility 1920 x 1080p
1920 x 1080i
1280 x 720p
720 x 576p
720 x 576i
720 x 480p
720 x 480i
Brightness 150 Lumens
Uniformity >60%
Aspect Ratio Native: 16:10
Dynamic Contrast Ratio 10000:1
Color Range 16.8 Million
Lens
Focus Manual
Lens F 2.0 (f = 9.05 mm)
Zoom None
Throw Distance 1.64 - 4.3' (0.5 - 1.3 m)
Throw Ratio 1:1
Projection Size 25 - 68" / 63.50 - 172.72 cm
Features
Keystone Correction Vertical: ± 40°
Built-in Speaker Yes, 1 W (Mono)
Input/Output Connectors
Inputs/Outputs 1x HDMI Audio/Video (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x USB Type-A Female (Output)

USB port for device powering only. No video or data throughput
General
Light Source LED
Life Normal Mode: 20000 Hours
Fan Noise Normal Mode: 47 dB
Eco Mode: 40 dB
Security Cable Lock Slot
Power Requirements 100-240 VAC, 50/60 Hz
12-19 VDC
Power Consumption Normal Mode: 36.1 W
Eco Mode: 24 W
Temperature Operating
41 to 95°F (5 to 35°C)
Storage
-4 to 140°F (-20 to 60°C)
Dimensions (WxHxD) 3.7 x 1.4 x 6.0" / 95.0 x 36.0 x 153.0 mm
Weight .66 lb / 299 g
Packaging Info
Package Weight 2.55 lb
Box Dimensions (LxWxH) 8.9 x 6.5 x 4.2"
The user manual for the Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918 can be downloaded in .pdf format if it did not come with your new pico projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Elmo users keep a unique electronic library for Elmo pico projectorss, where you can use our link to download the user manual for the Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918.

The user manual lists all of the functions of the Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918, all the basic and advanced features and tells you how to use the pico projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Elmo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Elmo BOXi T-200 150 Lumen WXGA Mobile Projector 1918. User manuals are also available on the Elmo website under A/V Presentation - Projectors - Pico Projectors.
