User manual for the Evolis Primacy Single-Sided ID Card Printer PM1H0000RS
The user manual for the Evolis Primacy Single-Sided ID Card Printer PM1H0000RS provides
necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - ID Card Printers.

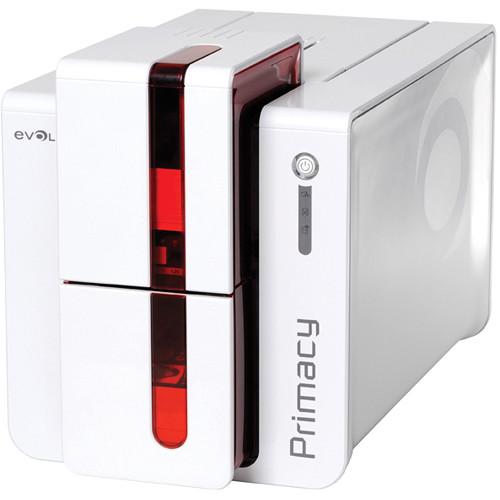

The fire red Primacy Single-Sided ID Card Printer with Ethernet from Evolis features a 300 dpi photographic resolution and edge to edge printing for printing and encoding personalized ID cards. Using color dye sublimation and monochrome thermal transfer technology, 600 - 850 monochrome or 190 - 225 color cards can be printed per hour. The card feeder and output tray hold up to 100 cards and are accessible on the front of the printer so you can check the cards as they come out. The Evolis Premium Suite software allows you to receive notification and control the printer from your computer. Evolis High Trust ribbons are easy to install and automatically recognized by the printer. You can upgrade your printer according to your needs by adding magnetic stripes, contact, or contactless chip encoders. Settings and options can be set and adjusted with the LED control panel. Additionally, the printer has a Kensington lock slot for security and USB connectivity.
|
If you own a Evolis id card printers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Evolis Primacy Single-Sided ID Card Printer PM1H0000RS in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Evolis Primacy Single-Sided ID Card Printer PM1H0000RS:
| Print Technology | Color dye sublimation, Monochrome thermal transfer | | Resolution | 300 dpi print head (11.8 dots/mm) | | Colors Supported | 16 million | | Ribbon Options | Evolis High Trust Ribbons
YMCKO (300 prints per roll)
YMCKO-K (200 printer per roll)
1/2 YMCKO (400 prints per roll)
KO (600 prints per roll)
Black monochrome (2000 prints per roll)
Other monochrome (1000 prints per roll)
Hologram varnish (400 prints per roll)
SO-KO (250 printer per roll) | | Double/Single-Sided | Single | | Print Features | Edge-to-edge | | Print Speed | Color (YMCKO) 190-225 cards/hour
Monochrome: 600-850 cards/hour | | Card Sizes | CR-80, ISO 7810: 3.375 x 2.125" (85.6 x 54.0 mm) | | Media Thickness | 10 to 50 mil (0.25 to 1.25 mm)
10 mil (0.25 mm) gauge adjustment for monochrome printing | | Card Type | PVC, composite PVC, PET, ABS, special varnished | | Capacity | Feeder Capacity: 100 x 30 mil (0.76 mm) cards
Output Hopper Capacity: 100 x 30 mil (0.76 mm) cards
Reject Tray Capacity: 30 x 30 mil (0.76 mm) cards | | Computer Interface | USB (1.0, 1.1, 2.0, 3.0)
Ethernet TCP-IP 10BaseT, 100BaseT (Traffic LED)
802.11b/g wireless connection on the wireless range | | Memory | 16 MB RAM | | Compatible Operating Systems | Windows XP SP3 (32/64-bit), Vista (32/64-bit), 7 (32/64-bit), 8 (32/64-bit)
Mac OS X 10.5 or later | | Front Panel | LED control panel | | Acoustics | Operating: 48 dB (A) | | Security | Kensington lock slot
Data encryption for magnetic encoding | | Certifications | CE, FCC, IEC, VCCI, CCC, KC
ErP 2009/125/CE
RoHS compliant | | Power Requirements | Power Supply: 100 to 240 VAC, 50/60 Hz, 1.8 A
Printer: 24 VDC, 3 A | | Operating Conditions | Temperature: 59 to 86°F (15 to 30°C)
Humidity: 20 to 65%, non-condensing
Ventilation: open air | | Storage Conditions | Temperature: 23 to 158°F (-5 to 70°C)
Humidity: 20 to 70%, non-condensing | | Dimensions (H x W x D) | 9.7 x 8.1 x 15.0" (24.7 x 20.5 x 38.1 cm)
With Reject Tray: 9.7 x 8.1 x 18.9" (24.7 x 20.5 x 48.1 cm) | | Weight | 8.86 lb (4.02 kg) | | Package Weight | 14.25 lb | | Box Dimensions (LxWxH) | 19.5 x 16.0 x 12.4" | |
The user manual for the Evolis Primacy Single-Sided ID Card Printer PM1H0000RS can be downloaded in .pdf
format if it did not come with your new id card printers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Evolis users keep a unique electronic library
for Evolis id card printerss,
where you can use our link to download the user manual for the Evolis Primacy Single-Sided ID Card Printer PM1H0000RS.
The user manual lists all of the functions of the Evolis Primacy Single-Sided ID Card Printer PM1H0000RS,
all the basic and advanced features and tells you how to use the id card printers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Evolis service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Evolis Primacy Single-Sided ID Card Printer PM1H0000RS. User manuals are also
available on the Evolis website under Computers & Solutions - Printers & Accessories - ID Card Printers.
