User manual Fiio TAISHAN-D03K - S/PDIF Digital to Analog Converter D03K

Operating instructions and pdf manual for use - Fiio TAISHAN-D03K - S/PDIF Digital to Analog Converter D03K User manual, User manual Fiio TAISHAN-D03K - S/PDIF Digital to Analog Converter D03K, Fiio, TAISHAN-D03K, S/PDIF, Digital, to, Analog, Conve


User manual for Fiio TAISHAN-D03K - S/PDIF Digital to Analog Converter D03K

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Fiio TAISHAN-D03K - S/PDIF Digital to Analog Converter D03K
  • Manufacturer: Fiio
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - AD/DA Converters
  • Safety instructions
  • Startup and operation of the ad/da converters
  • Tips for setting up your Fiio
  • Settings and expert assistance
  • Contact Fiio service
  • Troubleshooting
  • Warranty information
  • Price: 28 USD
We recommend checking out our discussion threads on the Fiio TAISHAN-D03K - S/PDIF Digital to Analog Converter D03K, which address similar problems with connecting and setting up AD/DA Converters Fiio.



User manual for the Fiio TAISHAN-D03K - S/PDIF Digital to Analog Converter D03K

The user manual for the Fiio TAISHAN-D03K - S/PDIF Digital to Analog Converter D03K provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - AD/DA Converters.

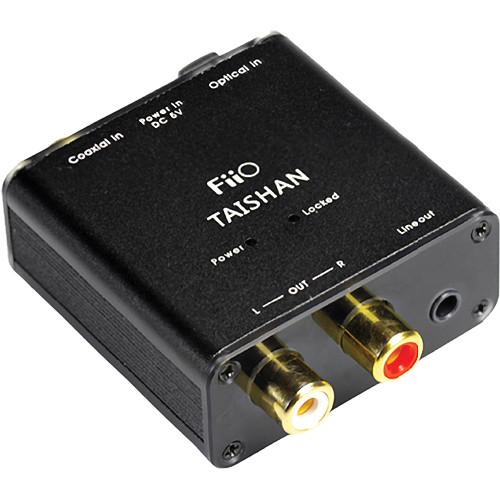

The TAISHAN-D03K from FiiO is a simple device that converts coaxial or optical S/PDIF digital audio into a stereo analog output, perfect for multimedia components such as TVs or CD/DVD/Blu-ray players that do not feature analog output. Dual RCA phono outputs can be connected to an amplifier, while a 3.5mm mini stereo output can be used to supply signal to a WLAN wireless headphone system. (The mini stereo output is not recommended for direct connection to conventional wired headphones.)

The unit features a digital input format switch and an LED to confirm digital signal lock. Power is supplied by an included external power supply. The input will accept up to 24-bit/192 kHz resolution PCM digital audio, but Dolby Digital and DTS are not supported.
If you own a Fiio ad/da converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fiio TAISHAN-D03K - S/PDIF Digital to Analog Converter D03K in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Fiio TAISHAN-D03K - S/PDIF Digital to Analog Converter D03K:
Sample Rate Up to 24-bit/192 kHz input
Connectors 1 x TOSLink optical S/PDIF Input
1 x RCA coaxial S/PDIF Input
2 x RCA phono analog Output
1 x 3.5 TRS stereo mini analog Output
1 x USB mini power Input
Frequency Response 20 Hz to 20 kHz
THD <0.01%
Signal to Noise Ratio >95 dB, A-weighted
Crosstalk >85 dB
Noise <0.05 mV
Gain 3.5 dB
Power Output 1.5 Vrms (0 dB Fs)
Power Supply USB 5V DC via included 110~240V adapter
Size 2.4 x 1.9 x 0.8" (62 x 49 x 21 mm)
Weight 1.8 oz (50 g)
Packaging Info
Package Weight 0.2 lb
Box Dimensions (LxWxH) 4.5 x 3.0 x 0.8"
The user manual for the Fiio TAISHAN-D03K - S/PDIF Digital to Analog Converter D03K can be downloaded in .pdf format if it did not come with your new ad/da converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fiio users keep a unique electronic library for Fiio ad/da converterss, where you can use our link to download the user manual for the Fiio TAISHAN-D03K - S/PDIF Digital to Analog Converter D03K.

The user manual lists all of the functions of the Fiio TAISHAN-D03K - S/PDIF Digital to Analog Converter D03K, all the basic and advanced features and tells you how to use the ad/da converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fiio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fiio TAISHAN-D03K - S/PDIF Digital to Analog Converter D03K. User manuals are also available on the Fiio website under Pro Audio - Computer Audio - AD/DA Converters.
