User manual for the For.A HVS-100 HD/SD Portable Video Switcher HVS-100 TYPE A

The user manual for the For.A HVS-100 HD/SD Portable Video Switcher HVS-100 TYPE A provides necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Production Switchers.

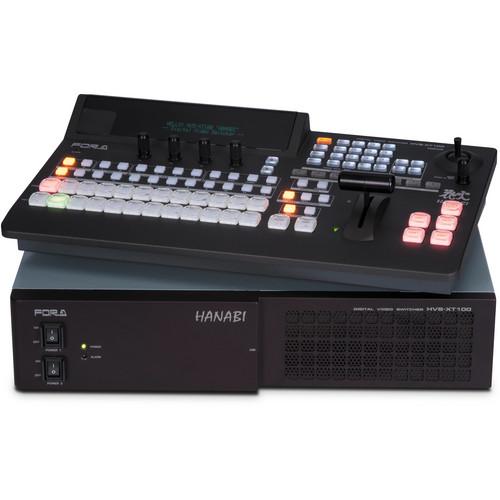

The HVS-100 HD/SD Portable Video Switcher with HVS-100OU Control Panel from For.A is a multi-functional unit that incorporates a range of functions and features including mixed HD/SD input, frame synchronizing, re-sizing engine, 2.5D wipe effects, DVE, keyer with chroma key, and DSK. It features 8 SD/HD-SDI inputs, 4 SD/HD-SDI outputs, and 1 HDMI outputs. It also has three slots open for various inputs and outputs to be added, such as analog, component, analog composite, HDMI, and VGA, in addition to more SD/HD-SDI.

This switcher also includes a built-in Web server that lets you change settings from a PC or tablet terminal. A clip memory feature has been added to this unit to support elaborate performances such as through the use of CG wipes, while the multi-viewer meets a diverse range of monitoring needs.

This portable video switcher unit features a single main unit and control panel. The equipment can be used in all types of locations, including live events, sports, news studios, broadcasting vans, editorial offices, and presentation halls, making it a suitable tool for shaping the imaginative ideas of video creators.

The control panel has been specifically designed keeping professionals in mind. It includes authentic bus buttons, AUX buttons, a fader controller, and direct buttons for various functions with one touch. The main unit offers expandability to facilitate the add-on of a redundant power source unit and various input/output cards.
If you own a For.A production switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the For.A HVS-100 HD/SD Portable Video Switcher HVS-100 TYPE A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the For.A HVS-100 HD/SD Portable Video Switcher HVS-100 TYPE A:
Video Formats 1080i 50/59.94i
1080PsF 23.98/24/25/29.97
720p 50/59.94
525/60 (NTSC)
625/50 (PAL)

Note: Optional expansion card is required to support 1080/59.94p and 1080/50p.
Video Input 8 x SD/HD-SDI, 75 Ω, BNC (FSs on 8 inputs, resize engines on 4 inputs)

Using optional HVS-XT100DI Input Card:
HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 4 x 75 Ω, BNC (FSs and resize engines on 4 inputs)
Using optional HVS-XT100AI Input Card:
HD analog component, SD analog component, analog composite
Using optional HVS-XT100PCI Input Card:
HDMI: XGA to WUXGA/HDTV (1080i), XGA to WUXGA (720p), VGA to XGA (SD)
RGB: XGA to WUXGA/HDTV (1080i), XGA to WUXGA (720p), VGA to XGA (SD)
Video Output 4 x SD/HD-SDI, 75 Ω, BNC
1 x HDMI

Using optional HVS-XT100DO Output Card:
2 x SD/HD-SDI, 75 Ω, BNC
Using HVS-XT100AO Output Card (sold separately)
HD analog component, SD analog component, analog composite

Using HVS-XT100PCO Output Card (sold separately)
HDMI: XGA to WUXGA/HDTV (1080i), XGA to WUXGA (720p), VGA to XGA (SD)
RGB: XGA to WUXGA/HDTV (1080i), XGA to WUXGA (720p), VGA to XGA (SD)
HDCP Compatible No
Signal Processing 4:2:2:4, digital component
Quantization SD/HD-SDI: 10-bit
Effect WIPE: 100 patterns, border and softness
2.5D DVE: 56 patterns or more DVE WIPEs
Transitions Available Controller: Fader controller, AUTO or CUT button
Type: MIX or WIPE (DVE included)
Still Store 2 channels (with backup feature)
Keyer/DSK 4 channels (2 x KEYER and 2 x DSK), includes 2D DVE that can be freely assigned
KEYER: Chroma key and Edge effect
Multi-viewer Quad-, 10- or 16-way split views with title, tally, and audio level meter display and 1 frame delay for PGM output
Proc Amp Equipped with all inputs
Event Memory 100 events (complementary transition available when loading events)
Macro 30 commands (up to 230 series of operations can be registered per command)
Genlock Input Black Burst (NTSC): 0.429 Vpp
Black Burst (PAL): 0.45 Vpp
Tri-level Sync: 0.6 Vpp, 1 x 75 Ω, BNC, loop-through (to be terminated with 75 Ω terminator, if unused)
Genlock Output Black Burst (NTSC): 0.429 Vpp
Black Burst (PAL): 0.45 Vpp
Tri-level Sync: 0.6 Vpp, 1 x 75 Ω, BNC
System Phase Adjust -1/2 to +1/2 Horizontal
I/O Delay 1H (minimum delay)
1 to 2 frames +1H (when FS or re-size engine used)
2 to 3 frames +1H (when FS or re-size engine plus DVE used)
3 to 4 frames +1H (when FS or re-size engine plus output resize engine and DVE used)
External Memory USB flash drive
Interface Ethernet (10/100Base-TX): 1 x RJ-45
TO OU: 1 x RJ-45
GPI-IN/OUT: 1 x 25-pin D-sub (female) (24 inputs/24 outputs), TTL negative logic pulse or Make-contact
RS-422: 1 x 9-pin D-sub (female) (for the HVS-30RU Remote Front Panel with Remote Cable and tally unit connection)
EDITOR: 1 x 9-pin D-sub (female), BVS-3000 and GVG-100 protocols
ARCNET: 2 x 75 Ω, BNC, loop-through (to be terminated with 75 Ω terminator, if unused)(for control panel an dAUX remote panel connection)
Temperature 32 to 104°F (0 to 40°C)
Humidity (Non-condensing) 10 to 90%
Power / Consumption HVS-XT100 Switcher: 100 to 240 VAC ±10%, 50/60 Hz / approximately 240 W
HVS-XT100OU Control Panel: 100 to 240 VAC ±10%, 50/60 Hz / approximately 23 W
Consumables Power supply unit (to be replaced every 5 years)
Cooling fan (to be replaced every 6 years)
Dimensions (W x H x D) HVS-XT100 Switcher: Approximately 16.9 x 3.5 x 8.9" (43.0 x 8.8 x 22.5 cm)
HVS-XT100OU Control Panel: Approximately 16.5 x 3.4 x 9.7" (42.0 x 8.7 x 24.6 cm)
Weight HVS-XT100 Switcher: Approximately 11.0 lb (5.0 kg)
HVS-XT100OU Control Panel: Approximately 5.7 lb (2.6 kg)
Packaging Info
Package Weight 17.0 lb
Box Dimensions (LxWxH) 21.9 x 17.8 x 7.9"
