User manual Fostex 6301NX - 4" Active Monitor Speaker 25W 6301NX

Operating instructions and pdf manual for use - Fostex 6301NX - 4" Active Monitor Speaker 25W 6301NX User manual, User manual Fostex 6301NX - 4" Active Monitor Speaker 25W 6301NX, Fostex, 6301NX, 4, Active, Monitor, Speaker, 25W, 6301NX,


User manual for Fostex 6301NX - 4" Active Monitor Speaker 25W 6301NX

Fostex 6301NX - 4
  • Manufacturer: Fostex
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Studio Monitors
  • Safety instructions
  • Startup and operation of the studio monitors
  • Tips for setting up your Fostex
  • Settings and expert assistance
  • Contact Fostex service
  • Troubleshooting
  • Warranty information
  • Price: 280 USD
We recommend checking out our discussion threads on the Fostex 6301NX - 4" Active Monitor Speaker 25W 6301NX, which address similar problems with connecting and setting up Studio Monitors Fostex.



User manual for the Fostex 6301NX - 4" Active Monitor Speaker 25W 6301NX

The user manual for the Fostex 6301NX - 4" Active Monitor Speaker 25W 6301NX provides necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

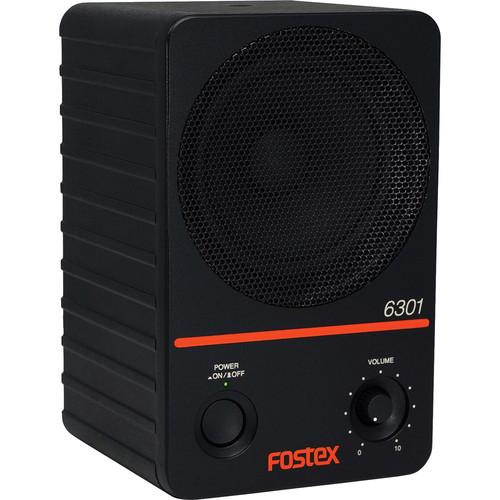

The 6301NX from Fostex is a compact monitor speaker for use in professional mobile, project, or home studios and features a 4" full-range driver powered by an integrated 25W D-class amplifier. Inputs include a transformer balanced XLR connector and a 1/4" unbalanced connector.
If you own a Fostex studio monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fostex 6301NX - 4" Active Monitor Speaker 25W 6301NX in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Fostex 6301NX - 4Download user manual for Fostex 6301NX - 4" Active Monitor Speaker 25W 6301NX
(PDF file, 3.36 MB)
Additional parameters of the Fostex 6301NX - 4" Active Monitor Speaker 25W 6301NX:
Specifications
    Type Sealed powered speaker system
    Speaker Cone Type Driver: 4" / 102mm
    Amplifier 25W Class-D
    Frequency Range 70 Hz to 15 kHz
    Output Sound Pressure Level 85 dB/W @ 1 m
    Maximum Output Maximum SPL: 98 dB
    Rated Output 20 W
    THD 0.05% (at 1 kHz 1 W output)
    Input Terminal Input: 1/4" TS, unbalanced Input: Analog balanced XLR, 3-31 type HOT No. 2 / transformer type
    Input Impedance Analog Input: 10 kOhms or More
    Input Sensitivity Analog (Unbalanced): -14 dBV (0.2 VRMS)
    Analog (Balanced): +4 dBu (1.2 VRMS)
    Residual Noise −70 dBV
    Controls 1 x Power switch
    1 x Volume control
    Indicator LEDs Unlit: Power off Lit In Green: Power on Lit In Red: In standby
    Enclosure Material Aluminum die-casting
    Shielded Yes
    Power Consumption Power Consumption: 10 W
    Auto Standby: 0.5W
    Dimensions (HxWxD) 7.4 x 4.7 x 4.7" / 189 x 120 x 120mm
    Weight 4.9 lb / 2.2 kg
    Packaging Info
    Package Weight 6.45 lb
    Box Dimensions (LxWxH) 9.842 x 9.37 x 7.323"
    The user manual for the Fostex 6301NX - 4" Active Monitor Speaker 25W 6301NX can be downloaded in .pdf format if it did not come with your new studio monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fostex users keep a unique electronic library for Fostex studio monitorss, where you can use our link to download the user manual for the Fostex 6301NX - 4" Active Monitor Speaker 25W 6301NX.

    The user manual lists all of the functions of the Fostex 6301NX - 4" Active Monitor Speaker 25W 6301NX, all the basic and advanced features and tells you how to use the studio monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fostex service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fostex 6301NX - 4" Active Monitor Speaker 25W 6301NX. User manuals are also available on the Fostex website under Pro Audio - Recording - Studio Monitors.
