User manual for the Fostex PM0.5d Personal Active Studio Monitors PM05D-W
The user manual for the Fostex PM0.5d Personal Active Studio Monitors PM05D-W provides
necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

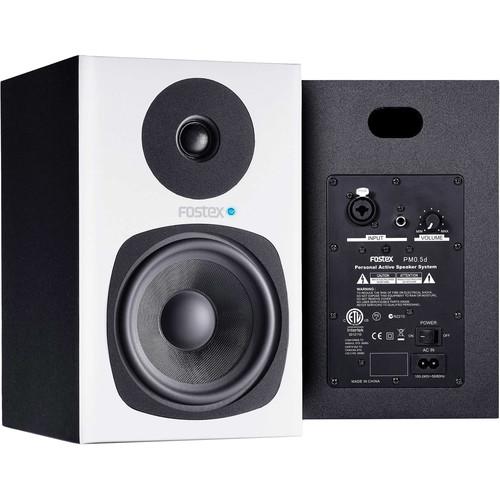

This pair of white PM0.5d Personal Active Studio Monitors from Fostex is designed to fulfill all critical near-field monitoring applications. Each monitor employs two professional quality digital amplifiers, each driving a 0.75" silk-dome tweeter and a 5" fiberglass cone woofer. Additionally, each monitor offers an independent gain control knob with a combination XLR/1/4" input and an RCA input. The enclosure is magnetically shielded, allowing you to place them near a video monitor without interference.
|
If you own a Fostex studio monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Fostex PM0.5d Personal Active Studio Monitors PM05D-W in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Fostex PM0.5d Personal Active Studio Monitors PM05D-W:
| Drivers | High Frequency Driver: 0.8" / 1.9 cm
Low Frequency Driver: 5.0" / 12.7 cm | | Frequency Response | 55 Hz to 30 kHz | | Maximum Output | High Frequency Driver: 23 W
Low Frequency Driver: 35 W | | Unbalanced Input | Connectors: 1/4" / 6.4 mm TS and RCA
Normal Input Level: -10 dBV
Input Impedance: 10 kOhms or more | | Balanced Input | Connector: XLR (Pin-1: Gnd, Pin-2: Hot, Pin-3: Cold)
Normal Input Level: +4 dBu
Input Impedance: 10 kOhms or more | | Crossover Frequency | 2 kHz | | Power Consumption | Normal Mode: 60 W
Stand-By Mode: 0.5 W or less | | Dimensions (H x W x D) | 10.6 x 6.5 x 8.5" / 26.9 x 16.5 x 21.6 cm | | Weight | 9.9 lb / 4.5 kg | | Package Weight | 23.7 lb | | Box Dimensions (LxWxH) | 18.0 x 15.3 x 11.6" | |
The user manual for the Fostex PM0.5d Personal Active Studio Monitors PM05D-W can be downloaded in .pdf
format if it did not come with your new studio monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Fostex users keep a unique electronic library
for Fostex studio monitorss,
where you can use our link to download the user manual for the Fostex PM0.5d Personal Active Studio Monitors PM05D-W.
The user manual lists all of the functions of the Fostex PM0.5d Personal Active Studio Monitors PM05D-W,
all the basic and advanced features and tells you how to use the studio monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Fostex service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Fostex PM0.5d Personal Active Studio Monitors PM05D-W. User manuals are also
available on the Fostex website under Pro Audio - Recording - Studio Monitors.
