User manual FREEFLY Alta Drone 950-00030

Operating instructions and pdf manual for use - FREEFLY Alta Drone 950-00030 User manual, User manual FREEFLY Alta Drone 950-00030, FREEFLY, Alta, Drone, 950-00030, Video


User manual for FREEFLY Alta Drone 950-00030

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
FREEFLY  Alta Drone 950-00030
  • Manufacturer: FREEFLY
  • Basic description and contents of package
  • Product classification: Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones
  • Safety instructions
  • Startup and operation of the aerial imaging platforms & drones
  • Tips for setting up your FREEFLY
  • Settings and expert assistance
  • Contact FREEFLY service
  • Troubleshooting
  • Warranty information
  • Price: 11 USD
We recommend checking out our discussion threads on the FREEFLY Alta Drone 950-00030, which address similar problems with connecting and setting up Aerial Imaging Platforms & Drones FREEFLY.



User manual for the FREEFLY Alta Drone 950-00030

The user manual for the FREEFLY Alta Drone 950-00030 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.

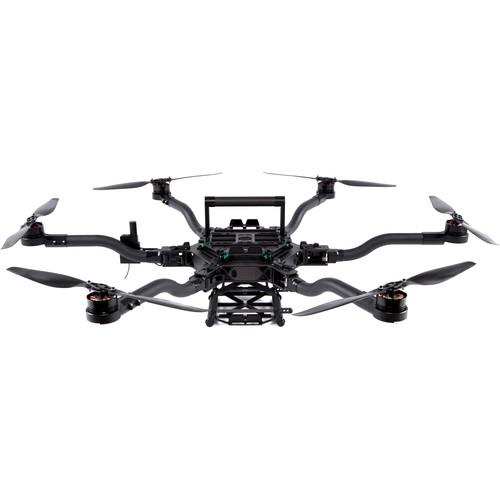

Alta from Freefly is a hexa-rotor drone for aerial imaging that – when used in conjunction with a separately available MoVI gimbal – supports mounting the camera either below or above the airframe. This configuration flexibility makes shooting from virtually any angle possible, even with the camera pointed up. Alta features a maximum payload of 15 lb, and is therefore suitable for DSLRs, mirrorless cameras, and even compact cinema cameras (depending on lens weight and other variables). Equipped with Freefly's own flight control system, Alta works with a range of transmitters, including many Futaba, Spektrum, and radios (see specifications for specific requirements). Flight modes provided include Manual, Height Hold, Climb Rate Control (Vario), Position Hold, Ground Speed Control, Return-To-Home, and Auto-land. For monitoring and first-person view, the flight controller works with FPV systems from Skyzone, BOSCAM, Immersion RC, and Fatshark. OSD display is user-configurable, and telemetry can data can also be displayed on compatible Futaba transmitters.

The Alta includes a hard transit case. Additional item essential to get started include flight batteries and a charger, a transmitter (radio controller), and of course a MoVI gimbal and camera.
If you own a FREEFLY aerial imaging platforms & drones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the FREEFLY Alta Drone 950-00030 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for FREEFLY  Alta Drone 950-00030Download user manual for FREEFLY Alta Drone 950-00030
(PDF file, 9.41 MB)
Additional parameters of the FREEFLY Alta Drone 950-00030:
Performance
Weights Maximum Gross Takeoff Weight: 29.9 lb / 13.6 kg
Maximum Useful Load: 21 lb / 9.5 kg
Maximum Payload: 15 lb / 6.8 kg
Specific Power Typical: 145 W/kg
Thrust Ratio At Max Takeoff Weight: 2.0:1
Frame
Payload Mounting Mounting Locations: Bottom and top mount
Mounting System: Freefly Toad In The Hole Quick Release
Isolation System Vibration Isolation System: Silicone O-rings

Densities by Color
Soft / Light Payloads: Red O-rings
Medium / Mid Payloads: Teal O-rings
Stiff / Heavy Payloads: Black O-rings
Lighting and Indication Orientation Lights: RGB LED's
Orientation Light Locations: Outboard on boom ends
Orientation Light Color: User definable
Status Light: Rear-facing red/white LED
Accessory Lighting Port: 12 VDC
Accessory Lighting Port Location: Outboard on boom ends
Motors
Model F45
Type 6 x Direct drive 3-phase PMAC outrunner
Max Continuous Power Output 350 W
Max Instantaneous Peak Power 950 W
ESC Freefly Silent-Drive Sine Wave ESC
Flight Controller
Model Freefly Synapse Flight Controller
Connectivity Inputs: Spektrum, S.Bus, PPM, FPV SD video

Outputs: PWM, I2C, CAN, FPV SD video with OSD
Flight Modes Manual
Height Hold
Climb Rate Control (Vario)
Position Hold
Ground Speed Control
Return-To-Home
Auto-land
Installed Transceivers Wi-Fi
Data Logging Rate 25 Hz
Receiver
Supported Radios Futaba S.Bus & S.Bus 2
DSMX, DSM2 (Spektrum/JR)
PPM, PPM Invert, PPM Graupner
Telemetry
Supported Telemetry Systems Futaba with built-in voltage sensor port
First-Person View OSD Telemetry User configurable
FPV and Monitoring
Supported First-Person View Systems Skyzone
BOSCAM
Immersion RC
Fatshark
Propellers
Type 6 x 18x6 folding
Configuration 3 x CW
3 x CCW
Material Carbon fiber with balsa core
Flight Battery
Voltage 6S / 22.2 VDC
Maximum Battery Size 9.4 x 7.1 x 3.1" / 240 x 180 x 80 mm
Maximum Battery Quantity 2 x in parallel
Connector 2 x EC5 (parallel)
General
Dimensions Unfolded
Length: 39.4" / 1000 mm
Width: 45.1" / 1145 mm
Height (base of TITH): 8.7" / 220 mm

Folded
20.9" / 532 mm
20.3" / 515 mm
8.7" / 220 mm
Weight Typical Standard Empty Weight: 9 lb / 4.1 kg
Packaging Info
Package Weight 43.5 lb
Box Dimensions (LxWxH) 29.8 x 28.4 x 17.4"
The user manual for the FREEFLY Alta Drone 950-00030 can be downloaded in .pdf format if it did not come with your new aerial imaging platforms & drones, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other FREEFLY users keep a unique electronic library for FREEFLY aerial imaging platforms & droness, where you can use our link to download the user manual for the FREEFLY Alta Drone 950-00030.

The user manual lists all of the functions of the FREEFLY Alta Drone 950-00030, all the basic and advanced features and tells you how to use the aerial imaging platforms & drones. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from FREEFLY service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the FREEFLY Alta Drone 950-00030. User manuals are also available on the FREEFLY website under Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.
