User manual for the FREEFLY MOVI M5 3-Axis Motorized Gimbal Stabilizer 950-00010
The user manual for the FREEFLY MOVI M5 3-Axis Motorized Gimbal Stabilizer 950-00010 provides
necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Stabilizer Systems.

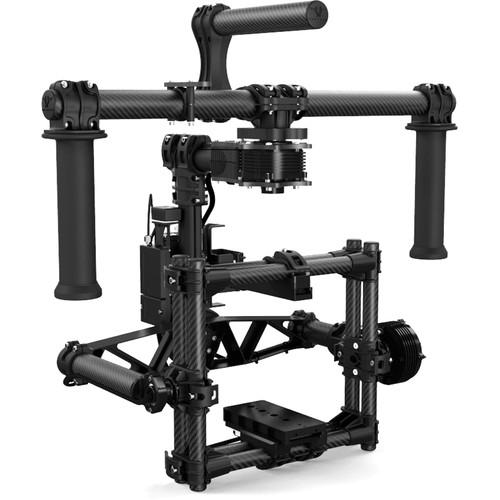

The MOVI M5 3-Axis Motorized Gimbal Stabilizer from Freefly is designed for mid-sized DSLRs, mirrorless cameras, and camcorders weighing up to 5 pounds, including the lens. For camera stabilization the M5 uses three motors and an IMU (inertial measurement unit) to detect and counteract unwanted movement along three axes: pan, tilt, and roll. In particular, compensating for handshake or vehicle-induced vibration and reducing translation. There is a quick-release adapter available separately so that it can be mounted on cranes, jibs, vehicle mounts, and other camera support equipment. There is also an MR (multi-rotor) conversion kit, available separately, so that it can mounted on a UAV.
The system supports single- or dual-operator control. In single user (Majestic) mode the system's software intelligently differentiates unwanted shake or vibration from intentional movement, such as panning, while keeping the horizon level. Alternatively, you can have a dedicated operator with a remote control or RC transmitter who is in charge of camera pan, tilt--and if you want--roll. In this configuration the camera will always point where the operator of the remote tells it to, independent of how the rig operator moves.
As with sled-style stabilizers, the camera should be balanced on the MOVI to ensure best performance. Once balanced, the MOVI will need to be linked via Bluetooth to an Android mobile device or a computer or tablet running Windows to finalize the configuration process.
Two lithium-polymer (LiPo) batteries and a charger are included, as well as a top handle for low-angle shooting or transporting the assembled rig on set.
|
If you own a FREEFLY stabilizer systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the FREEFLY MOVI M5 3-Axis Motorized Gimbal Stabilizer 950-00010 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the FREEFLY MOVI M5 3-Axis Motorized Gimbal Stabilizer 950-00010:
| System Type | 3-axis gyro stabilized | | Pan Range | 360° | | Tilt Range | ±180° | | Roll Range | ±180° | | Slew Rates | 0 to 150°/sec | | Interface | Bluetooth connection to Windows/Android GUI | | Majestic Mode | Stabilized with operator control via gimbal base | | Off | Kills drive to gimbal axes | | Chemistry | Lithium-polymer | | Capacity | 1.3 Ah | | Voltage | 14.8 VDC | | Maximum Continuous Discharge | 3 C (3.9 A) | | Maximum Burst Discharge | 5 C (6.5 A) | | Maximum Charge Voltage | 4.2 V per cell | | Minimum Discharge Voltage | 3.0 V | | Dimension L x W x H | 2.7 x 1.4 x 1.1" / 69 x 34 x 28 | | Weight | 4.4 oz / 125 g | | Weight Capacity | Maximum: 5 lb / 2.3 kg | | Power Requirements | 9 to 18 VDC (3S or 4S LiPo) | | Dimensions | Camera Cage (L x W x H): 5.1 x 7.1 x 4.7" / 130 x 180 x 120 mm
Storage: Varies, depending on how system is broken down | | Weight | 4.8 lb / 2.2 kg | | Package Weight | 12.1 lb | | Box Dimensions (LxWxH) | 28.0 x 20.0 x 6.0" | |
