User manual Gemini XGA-5000 Professional Power Amplifier XGA-5000

Operating instructions and pdf manual for use - Gemini XGA-5000 Professional Power Amplifier XGA-5000 User manual, User manual Gemini XGA-5000 Professional Power Amplifier XGA-5000, Gemini, XGA-5000, Professional, Power, Amplifier, XGA-5000,


User manual for Gemini XGA-5000 Professional Power Amplifier XGA-5000

Overall rating 2.5
Overall Rating: 2.5

50% of respondents would recommend this to a friend.

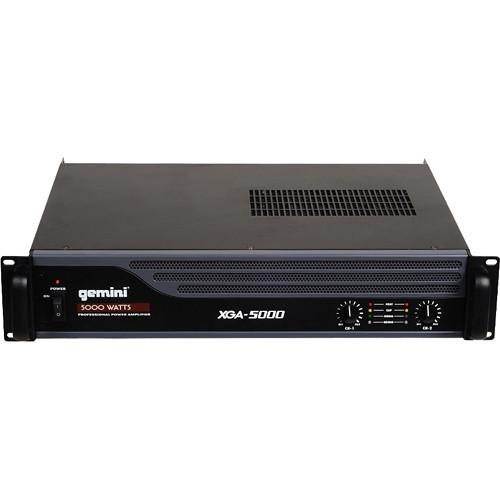

Gemini XGA-5000 Professional Power Amplifier XGA-5000
  • Manufacturer: Gemini
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Power Amplifiers
  • Safety instructions
  • Startup and operation of the power amplifiers
  • Tips for setting up your Gemini
  • Settings and expert assistance
  • Contact Gemini service
  • Troubleshooting
  • Warranty information
  • Price: 175 USD
We recommend checking out our discussion threads on the Gemini XGA-5000 Professional Power Amplifier XGA-5000, which address similar problems with connecting and setting up Power Amplifiers Gemini.



User manual for the Gemini XGA-5000 Professional Power Amplifier XGA-5000

The user manual for the Gemini XGA-5000 Professional Power Amplifier XGA-5000 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.

The 1100W RMS at 8Ω bridged Gemini XGA-5000 Professional Power Amplifier is designed for live sound reinforcement applications. The amplifier is rated to 2x 550W RMS at 4Ω stereo, 2x 400W RMS at 8Ω stereo, and 1100W RMS at 8Ω bridged. It has a frequency response of 10 to 50,000 Hz at 1.5 dB with a signal to noise ratio of greater than 90 dB.

For inputs the amplifier features balanced XLR and balanced 1/4" inputs as well as unbalanced RCA inputs. For outputs, the unit features three Speakon connectors for channel A, channel B, and bridge as well as 5-point binding banana posts. The front panel features level controls for channels 1 and 2 as well as LED indicators to show signal, clip, protect, and bridge. Front to back vents and cooling fans help protect the amplifier from thermal overload. It also features limiter, DC output, and short circuit protection circuits.
If you own a Gemini power amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Gemini XGA-5000 Professional Power Amplifier XGA-5000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gemini XGA-5000 Professional Power Amplifier XGA-5000:
Specifications
    Power Rating 2x 550W RMS at 4 Ω stereo
    2x 400W RMS at 8 Ω stereo
    1100W RMS at 8 Ω bridged
    Damping Factor F=1 kHz at 8Ω: >350
    Input Sensitivity 0.77 v
    Input Impedance 20 kΩ
    Maximum Input Level 21 dBv/9v
    Frequency Response 10 to 50,000 Hz (±1.5 dB)
    Signal-to-Noise Ratio >90 dB
    Total Harmonic Distortion (THD) >0.1%
    Input Connections 2x balanced XLR
    2x balanced 1/4"
    2x RCA input
    Output Connectors 3x Speakon for channel A, channel B, and bridge
    5-point binding banana posts
    Controls Front Panel Channel A gain
    Channel B gain
    Controls (Rear) Stereo/Bridge switch
    Indicators Signal, clip, protect, and bridge
    Cooling Front to rear vents with cooling fan
    Fuse AC 115 V/ 230 V at 50~60 Hz
    Dimensions 19.0 x 13.8 x 3.5" (482.0 x 350.0 x 88.0 mm)
    Weight 26.8 lb (12.1 kg)
    Packaging Info
    Package Weight 25.4 lb
    Box Dimensions (LxWxH) 21.0 x 16.5 x 6.8"
    The user manual for the Gemini XGA-5000 Professional Power Amplifier XGA-5000 can be downloaded in .pdf format if it did not come with your new power amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Gemini users keep a unique electronic library for Gemini power amplifierss, where you can use our link to download the user manual for the Gemini XGA-5000 Professional Power Amplifier XGA-5000.

    The user manual lists all of the functions of the Gemini XGA-5000 Professional Power Amplifier XGA-5000, all the basic and advanced features and tells you how to use the power amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Gemini service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Gemini XGA-5000 Professional Power Amplifier XGA-5000. User manuals are also available on the Gemini website under Pro Audio - Live Sound - Power Amplifiers.



    Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Gemini XGA-5000 Professional Power Amplifier XGA-5000

    Post new comment to Gemini XGA-5000 Professional Power Amplifier XGA-5000

    Subject: Gemini xga-5000
    Date: 08.02.2024 18:12:20Author: Lennox greaves
    Please for a schematic diagram for the poweram section of this amplifier or a service manual
    Reply

    Subject: Xga 5000
    Date: 01.10.2022 16:40:26Author: Nikki
    My lite say prot and screeg
    Sound when on
    Reply
