User manual for Hartke A35 10" Bass Combo Monitor Amplifier (35W) A35
- Manufacturer: Hartke
- Basic description and contents of package
- Product classification: Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Bass Amplifiers
- Safety instructions
- Startup and operation of the bass amplifiers
- Tips for setting up your Hartke
- Settings and expert assistance
- Contact Hartke service
- Troubleshooting
- Warranty information
- Price: 200 USD
|
We recommend checking out our discussion threads on the Hartke A35 10" Bass Combo Monitor Amplifier (35W) A35,
which address similar problems with connecting and setting up Bass Amplifiers Hartke.
|
User manual for the Hartke A35 10" Bass Combo Monitor Amplifier (35W) A35
The user manual for the Hartke A35 10" Bass Combo Monitor Amplifier (35W) A35 provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Bass Amplifiers.

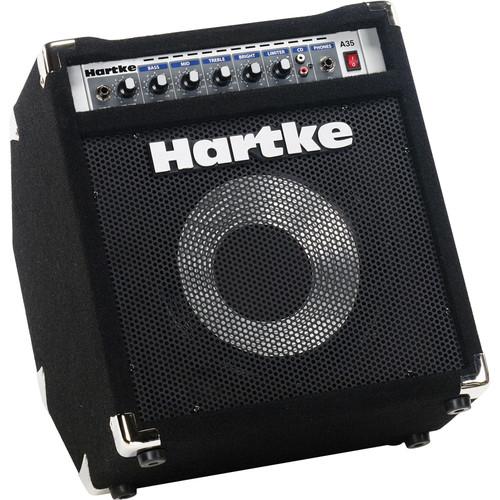

The A35 10" Bass Combo Monitor Amplifier from Hartke is a small footprint 35W bass combo that features a 10" aluminum bass speaker which can be used in a flat floor position or in a "kickback" position for increased high end clarity and sound dispersion. This versatile bass combo is designed for use in small venues, practice/jam sessions or home recording studios. The bass combo features a CD/MP3 input and a dedicated headphone output as well as high-quality 4-band EQ for tone control, a bipolar circuit design and an effects loop.
|
If you own a Hartke bass amplifiers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Hartke A35 10" Bass Combo Monitor Amplifier (35W) A35 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Hartke A35 10" Bass Combo Monitor Amplifier (35W) A35:
| Connectors | Front Panel:
1 x 1/4" phone jack, unbalanced guitar input
2 x RCA left/right input
1 x 1/4" phone jack, headphones output
Rear Panel:
1 x IEC AC power input
1 x 1/4" phone jack, speaker output
1 x 3-pin XLR male direct output
1 x 1/4" phone jack, unbalanced preamp output
1 x 1/4" phone jack, unbalanced amp input | | Control | Front Panel:
1 x Volume control knob
1 x Bass control knob
1 x Mid control knob
1 x Treble control knob
1 x Bright control knob
1 x Limiter control knob
1 x Power switch | | Output Power | 35 W @ 1 kHz, 4 ohms, 1% THD | | Input Level | Input 1: -20 dBu @ 1 kHz
Input 2: -10 dBu @ 1 kHz | | Total Harmonic Distortion (THD) | 0.3% @ 1 dB, 1 kHz typical | | Signal to Noise Ratio | 60 dB @ 1 kHz | | Dynamic Range | 75 dB | | Signal Gain | Input 1 to Direct/Preamp Output: +24 dB
Input 1 to Speaker Output: +55 dB
Input 2 to Direct/Preamp Output: +14 dB
Input 2 to Speaker Output: +45 dB | | Equalizer | Bass: 100 Hz, ± 15 dB
Mid: 830 Hz, ± 15 dB
Treble: 5 kHz, ± 15 dB
Bright: 8 kHz, 0 -20 dB | | Headphone Output | 200 mW typ @ 600 ohms typical | | Fuse | 3AG slo-blo | | Fuse Rating | 1.6 A | | Dimensions (L x W x D) | 17 x 15 x 13" (42.1 x 38.1 x 32 cm) | | Weight | 30 lb (13.6 kg) | | Package Weight | 37.0 lb | | Box Dimensions (LxWxH) | 18.5 x 16.0 x 14.0" | |
The user manual for the Hartke A35 10" Bass Combo Monitor Amplifier (35W) A35 can be downloaded in .pdf
format if it did not come with your new bass amplifiers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Hartke users keep a unique electronic library
for Hartke bass amplifierss,
where you can use our link to download the user manual for the Hartke A35 10" Bass Combo Monitor Amplifier (35W) A35.
The user manual lists all of the functions of the Hartke A35 10" Bass Combo Monitor Amplifier (35W) A35,
all the basic and advanced features and tells you how to use the bass amplifiers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Hartke service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Hartke A35 10" Bass Combo Monitor Amplifier (35W) A35. User manuals are also
available on the Hartke website under Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Bass Amplifiers.
