User manual for Hartke A70 12" Bass Combo Monitor Amplifier (70W) A70
- Manufacturer: Hartke
- Basic description and contents of package
- Product classification: Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Bass Amplifiers
- Safety instructions
- Startup and operation of the bass amplifiers
- Tips for setting up your Hartke
- Settings and expert assistance
- Contact Hartke service
- Troubleshooting
- Warranty information
- Price: 300 USD
|
We recommend checking out our discussion threads on the Hartke A70 12" Bass Combo Monitor Amplifier (70W) A70,
which address similar problems with connecting and setting up Bass Amplifiers Hartke.
|
User manual for the Hartke A70 12" Bass Combo Monitor Amplifier (70W) A70
The user manual for the Hartke A70 12" Bass Combo Monitor Amplifier (70W) A70 provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Bass Amplifiers.

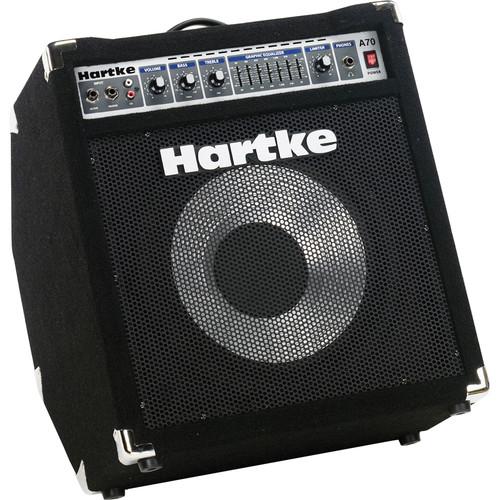

The A70 12" Bass Combo Monitor Amplifier from Hartke is a 70W bass combo that features a 12" aluminum bass speaker which can be used in a flat floor position or in a "kickback" position for increased high end clarity and sound dispersion. This versatile bass combo is designed for use in small venues or home recording studios. The combo features a CD/MP3 input and a dedicated headphone output. The A70 also has a bipolar circuit, bass, and treble, along with a 7-band graphic equalizer for tone control. A variable limiter, XLR balanced output, passive and active inputs and an effects loop are also featured in this versatile combo.
|
If you own a Hartke bass amplifiers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Hartke A70 12" Bass Combo Monitor Amplifier (70W) A70 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Hartke A70 12" Bass Combo Monitor Amplifier (70W) A70:
| Connectors | Front Panel:
1x 1/4" phone jack, active input
1x 1/4" phone jack, passive input
2x RCA female, CD left/right line input
1x 1/4" phone jack, headphones
Rear Panel:
1x IEC AC power input
1x 1/4" phone jack, speaker output
1x 3-pin XLR male direct output
1x 1/4" phone jack, unbalanced preamp output
1x 1/4" phone jack, unbalanced amp input | | Control | Front Panel:
1x Volume control knob
1x Bass control knob
1x Treble control knob
7x Graphic EQ control slider
1x Limiter control knob
1x Power switch | | Output Power | 70 W @ 1 kHz, 4 ohms, 1% THD | | Input Level | Passive: -20 dBu @ 1 kHz
Active: -10 dBu @ 1 kHz | | Total Harmonic Distortion (THD) | 0.2% @ 1 dB, 1 kHz (typical) | | Signal to Noise Ratio | 67 dB @ 1 kHz | | Dynamic Range | 80 dB | | Signal Gain | Passive In to Direct/Preamp Output: +24 dB
Passive In to Speaker Output: +48 dB
Active In to Direct/Preamp Output: +14 dB
Active In to Speaker Output: +38 dB | | Equalizer | Bass: 100 Hz, ± 15 dB
Treble: 5 kHz, ± 15 dB
Graphic: 80 Hz, 160 Hz, 315 Hz, 630 Hz, 1.25 kHz, 2.5 kHz and 6.3 kHz, ± 12 dB | | Headphone Output | 200 mW typical @ 600 ohms (typical) | | Fuse | 3AG slo-blo | | Fuse Rating | 1.0 A | | Dimensions (L x W x D) | 18.75 x 16.75 x 15.25" (47.6 x 42.5 x 38.7 cm) | | Weight | 38 lb (17.23 kg) | | Package Weight | 48.95 lb | | Box Dimensions (LxWxH) | 21.5 x 18.7 x 17.6" | |
The user manual for the Hartke A70 12" Bass Combo Monitor Amplifier (70W) A70 can be downloaded in .pdf
format if it did not come with your new bass amplifiers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Hartke users keep a unique electronic library
for Hartke bass amplifierss,
where you can use our link to download the user manual for the Hartke A70 12" Bass Combo Monitor Amplifier (70W) A70.
The user manual lists all of the functions of the Hartke A70 12" Bass Combo Monitor Amplifier (70W) A70,
all the basic and advanced features and tells you how to use the bass amplifiers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Hartke service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Hartke A70 12" Bass Combo Monitor Amplifier (70W) A70. User manuals are also
available on the Hartke website under Pro Audio - Musical Instruments - Guitar & Bass Amplifiers - Bass Amplifiers.
