User manual for the Hikvision DS-2CD4324F-IZHS 2MP Full HD IR DS-2CD4324F-IZHS
The user manual for the Hikvision DS-2CD4324F-IZHS 2MP Full HD IR DS-2CD4324F-IZHS provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

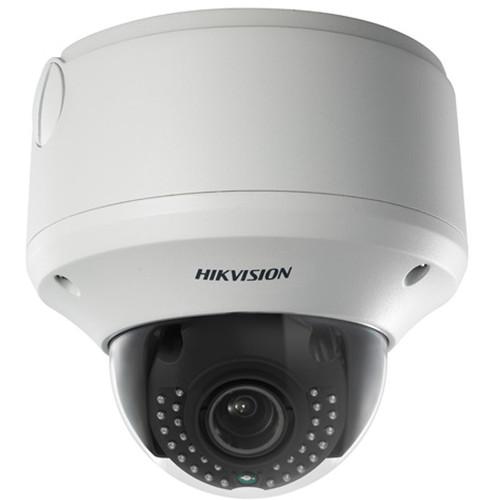

The Hikvision DS-2CD4324F-IZHS 2MP Full HD IR Outdoor Network Dome Camera utilizes a 1/2.8" progressive scan CMOS sensor and a 2.8 to 12mm motorized varifocal lens to capture Full HD images at 30fps. Thanks to the built-in IR-cut filter and IR LEDs, this camera can capture clear images in almost complete darkness. The IR LEDs provide illumination up to 98' from the camera. The camera supports H.264, MPEG4, and MJPEG compression formats with simultaneous triple streaming. It also features DWDR (Digital Wide Dynamic Range) and 3D DNR (Digital Noise Reduction) that allows the camera to capture high-contrast images in all light conditions. With the IP66-rated weather-resistant and IK10-rated vandal-proof housing, this camera is suitable for outdoor applications.
|
If you own a Hikvision wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Hikvision DS-2CD4324F-IZHS 2MP Full HD IR DS-2CD4324F-IZHS in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Hikvision DS-2CD4324F-IZHS 2MP Full HD IR DS-2CD4324F-IZHS:
| Image Sensor | 1/2.8" Progressive scan CMOS | | Minimum Illumination | 0.027 lux @ F1.4, AGC on
0 lux with IR on | | IR Range | Up to 98' (30 m) | | Lens | 2.8 to 12 mm @ f/1.4 | | Angle of View | 113° to 33.8° | | Lens Mount | Φ14 | | Auto Iris | DC drive | | Day & Night | IR cut filter (Auto/Schedule/Alarm Trigger) | | Angle Adjustment | Pan: 0 to 355°
Tilt: 0 to 75°
Rotation: 0 to 355° | | Shutter Time | 1 to 1/100,000 sec | | Slow Shutter | Yes | | Digital Noise Reduction (DNR) | 3D | | Wide Dynamic Range | Digital | | Video Compression | H.264 / MPEG4 / MJPEG | | H.264 Profile | Baseline profile / main profile / high profile | | Video Bit Rate | 32 kb/s to 16 Mb/s | | Audio Compression | G.711 / G.726 / MP2L2 | | Audio Bit Rate | 64 kb/s (G.711) / 16 kb/s (G.726) | | Maximum Image Resolution | 1920 x 1080 | | Frame Rate | 60 Hz: 20 fps (1920 x 1080), 30 fps (1920 x 1080), 30 fps (1280 x 720) | | Multi-Streaming | Independent setting, up to 60 Hz: 30 fps (1920 x 1080) | | Image Settings | Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web browser | | BLC | Yes, zone configurable | | Defog | Yes | | Image Stabilization | Electronic | | Image Overlay | 128 x 128, BMP 24-bit, zone configurable | | ROI | Yes, up to 4 configurable areas | | Network Storage | NAS | | Alarm Trigger | Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, and Storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, and Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access, and reset | | System Compatibility | ONVIF, PSIA, and CGI | | Communication | 1 x RJ45 10 M / 100 M Ethernet port | | Video Output | 1 Vpp composite output (75 Ω/RCA, for lens adjustment when installation) | | Onboard Storage | Built-in microSD/SDHC/SDXC slot, up to 64 GB | | Audio | 1-channel I/O | | Alarm | 1-channel I/O | | Control | RS-485 | | Operating Conditions | -22 to 140°F (-30 to 60°C)
-40 to 140°F (-40 to 60°C) with smart heater on | | Humidity | 95% or less (non-condensing) | | Power Supply | 24 VDC ± 10% , PoE (802.3af) | | Power Consumption | Maximum 13 W | | Ingress protection | IP66 weatherproof rating | | Impact Protection | IEC60068-275Eh, 50J; EN50102, exceeding IK10 | | Dimensions | Φ 6.29 x 5.75" (Φ 15.98 × 14.60 cm) | | Weight | 4.62 lb (2.10 kg) | |
The user manual for the Hikvision DS-2CD4324F-IZHS 2MP Full HD IR DS-2CD4324F-IZHS can be downloaded in .pdf
format if it did not come with your new wired ip cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Hikvision users keep a unique electronic library
for Hikvision wired ip camerass,
where you can use our link to download the user manual for the Hikvision DS-2CD4324F-IZHS 2MP Full HD IR DS-2CD4324F-IZHS.
The user manual lists all of the functions of the Hikvision DS-2CD4324F-IZHS 2MP Full HD IR DS-2CD4324F-IZHS,
all the basic and advanced features and tells you how to use the wired ip cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Hikvision service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Hikvision DS-2CD4324F-IZHS 2MP Full HD IR DS-2CD4324F-IZHS. User manuals are also
available on the Hikvision website under Surveillance - Surveillance Video - Wired IP Cameras.
