User manual Honeywell Xenon 1900 Standard Range Area-Imaging 1900GSR-2USB
Operating instructions and pdf manual for use - Honeywell Xenon 1900 Standard Range Area-Imaging 1900GSR-2USB User manual, User manual Honeywell Xenon 1900 Standard Range Area-Imaging 1900GSR-2USB, Honeywell, Xenon, 1900, Standard, Range, Area-Imag
User manual for Honeywell Xenon 1900 Standard Range Area-Imaging 1900GSR-2USB
We recommend checking out our discussion threads on the Honeywell Xenon 1900 Standard Range Area-Imaging 1900GSR-2USB,
which address similar problems with connecting and setting up Barcode Scanners Honeywell.
User manual for the Honeywell Xenon 1900 Standard Range Area-Imaging 1900GSR-2USB
The user manual for the Honeywell Xenon 1900 Standard Range Area-Imaging 1900GSR-2USB provides
necessary instructions for the proper use of the product Photography - Scanners - Barcode Scanners.

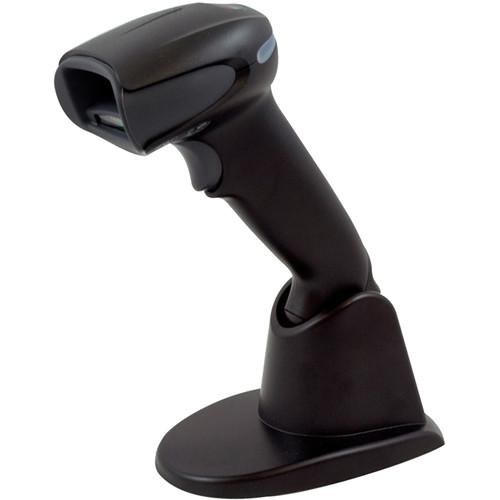

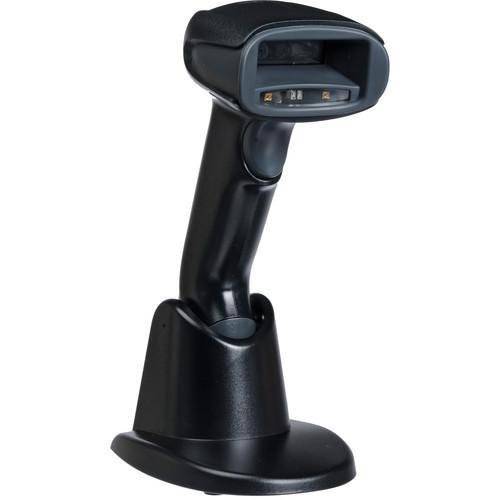

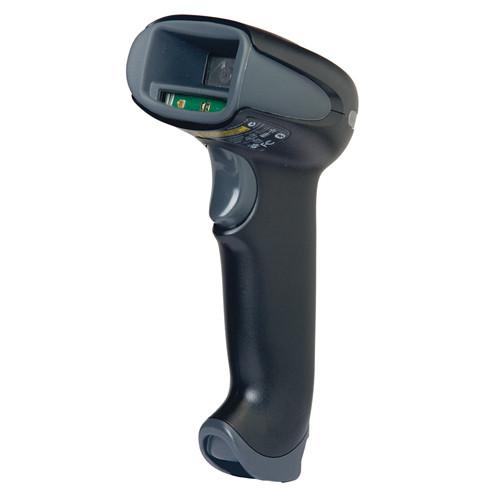

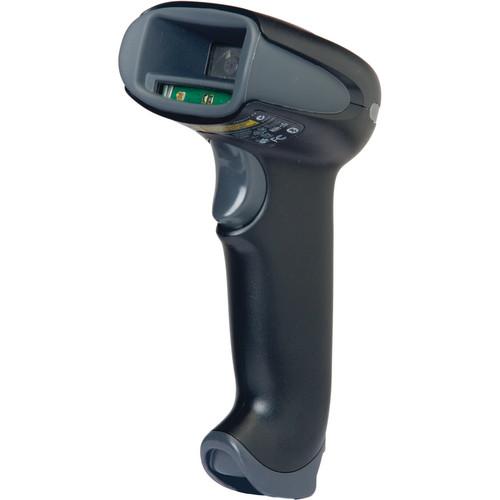

Using area-imaging technology and a grayscale sensor with a 838 x 640 resolution, the black Xenon 1900 Standard Range Area-Imaging Scanner from Honeywell/Sperian will provide reliable scanning for 1D, 2D, PDF, Postal, and OCR symbologies. With a field of view of 42.4° horizontally and 33° vertically it has a wide viewing area for reading and it uses Adaptus Imaging Technology 6.0 to deliver fast bar code scanning and digital image capture. Also, this version comes with a 9.8' USB cable for connection to a computer.
For portability and efficiency, Xenon 1900 works in a variety of areas and has a construction to match. To start, it works in light levels from 0 to 9,290 fc and is IP41-rated for sealing. Also, it uses a solid state design and solid construction to withstand multiple 6' drops to concrete. Adding to the versatility are USB, keyboard wedge, RS232 and RS485 connectivity options as well as the ability to work with Remote MasterMind Scanner Management software.
If you own a Honeywell barcode scanners and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Honeywell Xenon 1900 Standard Range Area-Imaging 1900GSR-2USB in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Honeywell Xenon 1900 Standard Range Area-Imaging 1900GSR-2USB:
Specifications
Sensor Resolution
838 x 640 grayscale
Field of View
Horizontal: 42.4° Vertical: 33.0°
Motion Tolerances
Up to 240 in/sec (610 cm/sec) for 13 mil UPC at optimal focus
Pitch
45°
Skew
65°
Print Contrast
20% minimum reflectance difference
Supported Symbologies
1D, PDF, 2D, Postal, and OCR
Image File Formats
BMP, TIFF, JPG
Interfaces
USB Keyboard wedge RS232 RS485
Sealing
IP41
Drop Resistance
Withstands multiple 6' (1.8 m) drops to concrete
Ambient Light Immunity
Total darkness to 9,290 fc (100,000 lux)
Power Requirements
4-5.5 VDC
Power Consumption
Operating: 2.3 W (450 mA at 5 VDC) Standby: 0.45 W (90 mA at 5 VDC)
Operating Conditions
Temperature: 32 to 122°F (0 to 50°C) Humidity: 0 to 95%, relative non-condensing
Storage Conditions
Temperature: -40 to 158°F (-40 to 70°C) Humidity: 0 to 95%, relative non-condensing
Dimensions
4.1 x 2.8 x 6.3" (104 x 71 x 160 mm)
Weight
5.2 oz (147 g)
The user manual for the Honeywell Xenon 1900 Standard Range Area-Imaging 1900GSR-2USB can be downloaded in .pdf
format if it did not come with your new barcode scanners, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Honeywell users keep a unique electronic library
for Honeywell barcode scannerss,
where you can use our link to download the user manual for the Honeywell Xenon 1900 Standard Range Area-Imaging 1900GSR-2USB.
The user manual lists all of the functions of the Honeywell Xenon 1900 Standard Range Area-Imaging 1900GSR-2USB,
all the basic and advanced features and tells you how to use the barcode scanners.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Honeywell service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Honeywell Xenon 1900 Standard Range Area-Imaging 1900GSR-2USB. User manuals are also
available on the Honeywell website under Photography - Scanners - Barcode Scanners.
