User manual Honeywell Xenon 1902 Wireless HD Area-Imaging 1902HHD-0USB-5

Operating instructions and pdf manual for use - Honeywell Xenon 1902 Wireless HD Area-Imaging 1902HHD-0USB-5 User manual, User manual Honeywell Xenon 1902 Wireless HD Area-Imaging 1902HHD-0USB-5, Honeywell, Xenon, 1902, Wireless, HD, Area-Imaging,

User manual for Honeywell Xenon 1902 Wireless HD Area-Imaging 1902HHD-0USB-5

Honeywell Xenon 1902 Wireless HD Area-Imaging 1902HHD-0USB-5
  • Manufacturer: Honeywell
  • Basic description and contents of package
  • Product classification: Photography - Scanners - Barcode Scanners
  • Safety instructions
  • Startup and operation of the barcode scanners
  • Tips for setting up your Honeywell
  • Settings and expert assistance
  • Contact Honeywell service
  • Troubleshooting
  • Warranty information
  • Price: 723 USD
We recommend checking out our discussion threads on the Honeywell Xenon 1902 Wireless HD Area-Imaging 1902HHD-0USB-5, which address similar problems with connecting and setting up Barcode Scanners Honeywell.


User manual for the Honeywell Xenon 1902 Wireless HD Area-Imaging 1902HHD-0USB-5

The user manual for the Honeywell Xenon 1902 Wireless HD Area-Imaging 1902HHD-0USB-5 provides necessary instructions for the proper use of the product Photography - Scanners - Barcode Scanners.

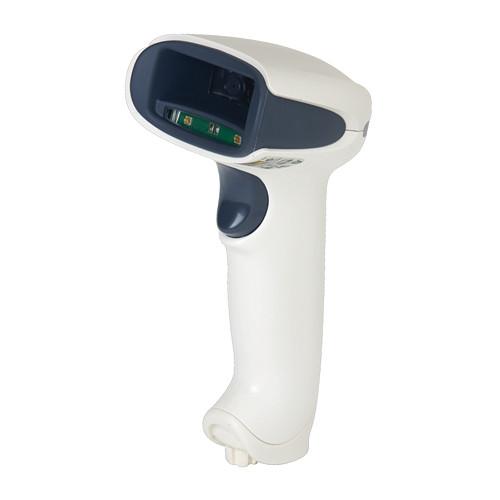

The white Xenon 1902 Wireless HD Area-Imaging Scanner with Charging Base Kit from Honeywell is a handheld scanner optimized for barcode scanning. It offers a wide variety of area-imaging applications coupled with the freedom of Bluetooth wireless connectivity.

The Xenon 1902 is powered by Adaptus Imaging Technology 6.0, which combines Adaptus Imaging Technology 5.5 and Omniplanar's SwiftDeocder software. A custom sensor enables extended depth of field, faster read time, and improved performance on poor-quality barcodes. It can read 1D, 2D and PDF417 barcodes with ease.

Included in this kit is a charging base that provides up to 14 hours of battery life and up to 33' of working distance from the base, thanks to Bluetooth Class 2 and v2.1 radio wireless connectivity.
If you own a Honeywell barcode scanners and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Honeywell Xenon 1902 Wireless HD Area-Imaging 1902HHD-0USB-5 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Honeywell Xenon 1902 Wireless HD Area-Imaging 1902HHD-0USB-5:
Specifications
    Wireless
    Radio Transmission Frequency Range 2.4 to 2.5 GHz (ISM band) adaptive frequency hopping Bluetooth v2.1; class 2: 32.8' (10.0 m) line of sight
    Data Rate Up to 1 Mbit/s
    Battery 1800 mAh Li-ion minimum
    Scans Per Charge Up to 50,000
    Hours of Operation 14
    Charge Time 4.5 hours
    Scanner
    Scan Pattern Area Image (838 x 640 pixel array)
    Motion Tolerances Up to 240 in/s (610 cm/s) for 13 mil UPC at optimal focus
    Scan Angle Horizontal: 41.4° Vertical:32.2°
    Print Contrast 20% minimum reflectance difference
    Pitch 45°
    Skew 65°
    Decoding Formats Reads standard 1D, 2D, and PDF417 symbologies
    Performance 5 mil Code 39: 0 to 4.1" (0 to 104.1 mm)
    13 mil UPC: 0.4 to 6.6" (10.2 to 167.6 mm)
    20 mil Code 39: 0.4 to 9.2" (10.2 to 233.7 mm)
    6.7 mil PDF417: 0 to 4.3" (0 to 109.2 mm)
    10 mil DM: 0 to 5.0" (0 to 127 mm)
    20 mil QR: 0.4 to 7.5" (10.2 to 190.5 mm)
    Resolution 1D Code 39: 3.0 mil (0.076 mm)
    Resolution 2D DM: 5.0 mil (0.127 mm)
    Connectivity
    Computer Interface USB, keyboard wedge, RS232, IBM 46xx, (RS485)
    System & Software Requirements Will work on all Mac and PC operating systems
    Environmental
    Operating Temperature Scanner: 32°F to 122°F (0°C to 50°C)
    Base When Charging: 41°F to 104°F (5°C to 40°C)
    Base When Not Charging: 32°F to 122°F to (0°C to 50°C)
    Storage Temperature Scanner: -40°F to 158°F (-40°C to 70°C)
    Base: -40°F to 158°F (-40°C to 70°C)
    Humidity Scanner: 0 to 95% relative humidity, non-condensing
    Base: 0 to 95% relative humidity, non-condensing
    Drop Resistance Scanner: Designed to Withstand 50 Drops to Concrete From 6.0' (1.8 m)
    Base: Designed to Withstand 50 Drops to Concrete from 3.3' (1.0 m)
    Light Intensity Scanner: 0 to 100,000 lux (9,290 foot-candles)
    Physical
    Power Requirements Operating Power (Charging): 5 W (1 A @ 5 V)
    Non-Charging Power: 0.5 W (0.1 A @ 5 V)
    Dimensions Scanner: 4.1 x 2.8 x 6.3" (104.0 x 71.0 x 160.0 mm)
    Base: 5.2 x 4.0 x 3.2" (132.0 x 102.0 x 81.0 mm)
    Weight Scanner: 7.5 oz (214.0 g)
    Base: 6.3 oz (179.0 g)
    Packaging Info
    Package Weight 1.6 lb
    Box Dimensions (LxWxH) 9.8 x 5.2 x 3.7"
    The user manual for the Honeywell Xenon 1902 Wireless HD Area-Imaging 1902HHD-0USB-5 can be downloaded in .pdf format if it did not come with your new barcode scanners, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Honeywell users keep a unique electronic library for Honeywell barcode scannerss, where you can use our link to download the user manual for the Honeywell Xenon 1902 Wireless HD Area-Imaging 1902HHD-0USB-5.

    The user manual lists all of the functions of the Honeywell Xenon 1902 Wireless HD Area-Imaging 1902HHD-0USB-5, all the basic and advanced features and tells you how to use the barcode scanners. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Honeywell service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Honeywell Xenon 1902 Wireless HD Area-Imaging 1902HHD-0USB-5. User manuals are also available on the Honeywell website under Photography - Scanners - Barcode Scanners.
