User manual HP DreamColor Color Calibration Solution B1F63AA
Operating instructions and pdf manual for use - HP DreamColor Color Calibration Solution B1F63AA User manual, User manual HP DreamColor Color Calibration Solution B1F63AA, HP, DreamColor, Color, Calibration, Solution, B1F63AA, Video
User manual for HP DreamColor Color Calibration Solution B1F63AA
Overall Rating: 4.0
80% of respondents would recommend this to a friend.
We recommend checking out our discussion threads on the HP DreamColor Color Calibration Solution B1F63AA,
which address similar problems with connecting and setting up Calibration HP.
User manual for the HP DreamColor Color Calibration Solution B1F63AA
The user manual for the HP DreamColor Color Calibration Solution B1F63AA provides
necessary instructions for the proper use of the product Computers & Solutions - Monitor & Display Accessories - Calibration.

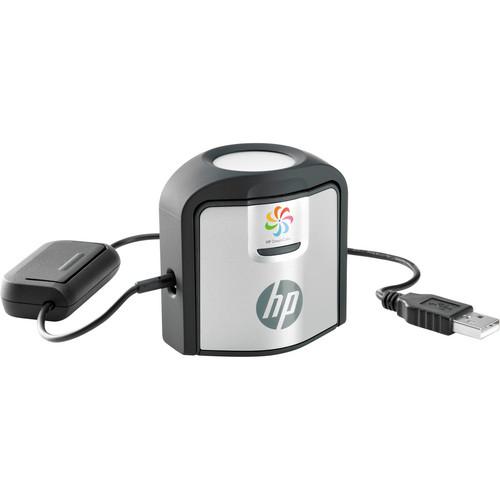

The DreamColor Color Calibration Solution from HP is a color calibration tool complete with user-defined monitor gamma choices and white point settings. Use this color calibrator with HP DreamColor displays to provide accurate color measurements as it comes equipped with a custom designed RGB filter set.
Attach the bus-powered DreamColor Color Calibration Solution to a compatible DreamColor monitor and begin measuring color accuracy up to 5X faster than comparable calibrators. The color calibrator can also be attached to non-DreamColor displays where it supports ambient light check and matching capabilities. When using this calibration tool on a DreamColor or non-DreamColor display, it can be transferred between displays as it comes with an optical design for high repeatability.
Compatibility Note:
The HP DCS can provide calibration for the HP Z24x (The HP DCS does not support the Z24x with a Mac), HP Z27x, HP DreamColor LP2480zx, the HP LD4730/LD4730G Video Wall Display, and HP ZBook and EliteBook Mobile Workstations with the DreamColor display option. It can also create monitor profiles for other HP business and consumer monitors.
If you own a HP calibration and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the HP DreamColor Color Calibration Solution B1F63AA in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the HP DreamColor Color Calibration Solution B1F63AA:
Windows Windows 7 (32 or 64-bit) Windows 8 (32 or 64-bit) Windows 8.1 (32 or 64-bit) Intel Pentium 4 or AMD Athlon XP or better CPU Latest service packs installed 1 GB of available RAM 300 MB of available hard disk space Monitor resolution of 1024 x 768 pixels or higher Dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded Powered USB port Network adapter installed and driver loaded CD drive or high speed internet connection to download the software Internet connection required for software updates User must have administrator rights to install, uninstall the application
Mac Intel CPU Mac OS X 10.6, 10.7, 10.8 (with latest upgrades installed) 1 GB of available RAM 300 MB of available hard disk space Monitor resolution of 1024 x 768 pixels or higher Dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded Powered USB port CD drive or high speed internet connection to download the software Internet connection for software updates User must have administrator rights to install, uninstall the application
Please note the HP DreamColor Calibration System (DCS) does not support the Z24x with a Mac.
Ambient Light Check & Match
Only on non-HP DreamColor displays Not needed on DreamColor display due to the controlled user environment
User Mode
Easy-to-use wizard interface
Gamma Choices
User-defined
White Point Calibration
User-defined
Dual Monitor Matching
Yes
Luminance Measurement
Yes
Profile Supported
ICC 2, ICC 4, matrix profiles
Calibration Reminder
User-defined (1 to 4 weeks)
Dimensions (HxWxL)
2.5 x 2.6 x 1.5" / 64.5 x 66.0 x 39.0 mm
Weight
4.6 oz / 130 g (includes USB cable and counterweight)
The user manual for the HP DreamColor Color Calibration Solution B1F63AA can be downloaded in .pdf
format if it did not come with your new calibration, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other HP users keep a unique electronic library
for HP calibrations,
where you can use our link to download the user manual for the HP DreamColor Color Calibration Solution B1F63AA.
The user manual lists all of the functions of the HP DreamColor Color Calibration Solution B1F63AA,
all the basic and advanced features and tells you how to use the calibration.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from HP service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the HP DreamColor Color Calibration Solution B1F63AA. User manuals are also
available on the HP website under Computers & Solutions - Monitor & Display Accessories - Calibration.
