User manual for HP EliteDisplay S230tm 23" Touch Monitor E4S03A8#ABA
- Manufacturer: HP
- Basic description and contents of package
- Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
- Safety instructions
- Startup and operation of the computer monitors
- Tips for setting up your HP
- Settings and expert assistance
- Contact HP service
- Troubleshooting
- Warranty information
- Price: 334 USD
|
We recommend checking out our discussion threads on the HP EliteDisplay S230tm 23" Touch Monitor E4S03A8#ABA,
which address similar problems with connecting and setting up Computer Monitors HP.
|
User manual for the HP EliteDisplay S230tm 23" Touch Monitor E4S03A8#ABA
The user manual for the HP EliteDisplay S230tm 23" Touch Monitor E4S03A8#ABA provides
necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

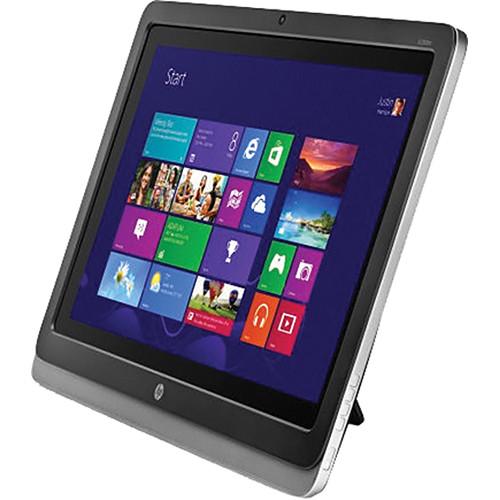

The black/silver EliteDisplay S230tm 23" Touch Monitor from HP has a 23" diagonal screen and a touch-enabled IPS panel with LED backlighting. It features a native full HD resolution of 1920 x 1080 and a 7 ms response time. The 10,000,000:1 dynamic contrast and 16:9 aspect ratio allows for enhanced dynamic picture quality with 220 cd/m2 brightness. The monitor provides an improved visual experience, even in high ambient light, with the wide 178° viewing angles from IPS technology. Take advantage of Full HD resolution, and anti-glare protective glass. You can connect this monitor to a variety of devices via the DVI, USB, and DisplayPort 1.3 (HDCP support) inputs. It uses up to five simultaneous touch points with optical touch technology that is certified for Windows 8 and is plug-and-play ready to work with Windows 7.
|
If you own a HP computer monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the HP EliteDisplay S230tm 23" Touch Monitor E4S03A8#ABA in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the HP EliteDisplay S230tm 23" Touch Monitor E4S03A8#ABA:
| LCD Size | 23.0" (58.4 cm) | | Panel Type | Anti-glare, multi-touch optical touchscreen
In-plane Switching (IPS) Technology | | Viewing Angle | 178°/178° | | Resolution | Native: 1920 x 1080 | | Standard Refresh Rate | 60 Hz | | Contrast Ratio | Static: 1,000:1
Dynamic: 10,000,000:1 | | Aspect Ratio | 16:9 | | Brightness | 220 cd/m2 | | Ports | 1 x USB (USB connection for touch and webcam functions only)
1 x DVI-D
1 x DisplayPort (HDCP support) | | Response Time | 7 ms (Gray-to-Gray) | | Tilt | 15 to 70° | | Backlight Technology | LED | | VESA Mount Standard | 100 x 100 | | Mount Type | Arm, wall, desk | | Audio | Built-in webcam, microphone, speaker | | Power Consumption | Operating: 33W
Standby: 500 mW | | Certifications | CB, CE, TUV-S, EAC, CUL, FCC, CSA, NOM, S-Mark, VCCI, PSB, ISC, CCC, BSMI, C-Tick, E-Standby, eK, CECP, ENERGY STAR, EPEAT Gold5, CEL Grade 1, TCO Certified, SmartWay Transport Partnership (NA), Microsoft WHQL | | Compatibility | HP Business Desktops
HP Business Laptops and Netbooks
HP point of Sale Solutions
HP Thin Clients
HP Workstations | | Dimensions | Head Only: 23.6 x 16.1 x 1.6" (599.4 x 408.9 x 40.6 mm)
With Stand: 23.6 x 16.1 x 2.7" (599.4 x 408.9 x 68.6 mm) | | Weight | Head Only: 12.1 lb (5.5 kg)
With Stand: 14.3 lb (6.5 kg) | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 26.0 x 19.0 x 5.0" | |
The user manual for the HP EliteDisplay S230tm 23" Touch Monitor E4S03A8#ABA can be downloaded in .pdf
format if it did not come with your new computer monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other HP users keep a unique electronic library
for HP computer monitorss,
where you can use our link to download the user manual for the HP EliteDisplay S230tm 23" Touch Monitor E4S03A8#ABA.
The user manual lists all of the functions of the HP EliteDisplay S230tm 23" Touch Monitor E4S03A8#ABA,
all the basic and advanced features and tells you how to use the computer monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from HP service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the HP EliteDisplay S230tm 23" Touch Monitor E4S03A8#ABA. User manuals are also
available on the HP website under Computers & Solutions - Monitors & Displays - Computer Monitors.
Question and answer discussion forum concerning user instructions and resolving problems with the HP EliteDisplay S230tm 23" Touch Monitor E4S03A8#ABA - no comments have been made yet - be the first to add a comment
Post new comment/question/response regarding the HP EliteDisplay S230tm 23" Touch Monitor E4S03A8#ABA
|
|
|
|
|
