User manual for the Humminbird 1199ci HD SI Combo Fishfinder 409230-1
The user manual for the Humminbird 1199ci HD SI Combo Fishfinder 409230-1 provides
necessary instructions for the proper use of the product Optics - Outdoor Gear - Fishing & Marine Technology.

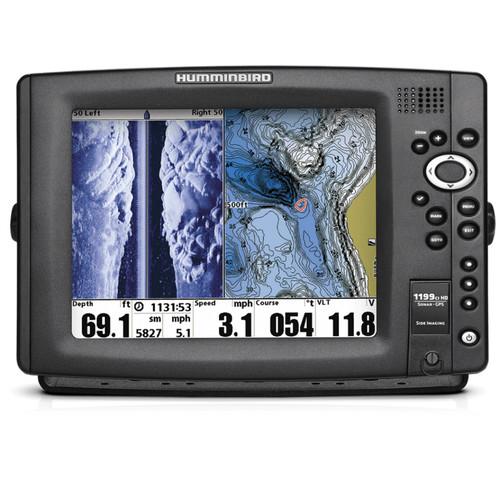

Know exactly where you are and what the bottom of the waterway looks like with the 1199ci HD SI Combo Fishfinder from Humminbird. You can be sure you are getting a complete view of the waterway with the fishfinder's internal GPS antenna, built-in cartography, and advanced sonar. This fishfinder is complete with a transom mount transducer, display, cover for the display, and in-dash mounting kit.
This system is rated to work at depths of up to 3000' and has a peak to peak power output of 8000W. The transducer comes with multiple coverage angles of 20°, 60° & (2) 86° & (2) 55° to -10db (Total of 180°), so you can be sure you can adjust coverage based on angling conditions. A 10.4" sunlight viewable color screen allows you to clearly see what's in the depths below. SwitchFire technology allows you to choose between clear and max modes, so you can select the level of detail displayed from the sonar returns.
With an internal GPS antenna, you can always keep an eye on your heading. The included Contour XD maps software illustrates over 3000 US lakes with depth contours, and many more without. For a real-time read as you cruise and for avoiding obstacles, the software will show your speed, compass heading, and a map on your display. This unit features dual SD card slots, which allow you to save screenshots, sonar recordings, and waypoints for future reference.
|
If you own a Humminbird fishing & marine technology and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Humminbird 1199ci HD SI Combo Fishfinder 409230-1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Humminbird 1199ci HD SI Combo Fishfinder 409230-1:
| Display Size (Diagonal) | 10.4" / 26.4 cm | | Display Size (HxV) | 800 x 600 | | Display Type | Color TFT | | Display Colors | 65,000 | | Sonar | Sonar Standard: HD Side Imaging / HD Down Imaging / DualBeam PLUS
Sonar Coverage: 20°, 60° & (2) 86° & (2) 55° to -10db (Total of 180°)
Sonar Frequency: 200/83/455/800/50 kHz | | Depth | 3000' | | Power Output | Peak to Peak 8000W
RMS 1000W | | Cable Length | 20' / 6.1 m | | Transducer Mount | Transom | | Temperature Sensor | Yes, on transducer | | GPS Support | Built-in | | GPS Tracking | Yes | | GPS Logger | Yes | | Stored Waypoints | 2750 | | Stored Routes | 45 | | Tracks/Points | 50/20000 | | Power Draw | 1.3 A | | Power Input | 10 to 20 VDC | | Dimension | 13.8 x 9.3 x 2.9" / 35.1 x 23.6 x 7.4 cm | | Weight | Not specified by the manufacturer | | Package Weight | 11.9 lb | | Box Dimensions (LxWxH) | 15.8 x 11.3 x 8.4" | |
The user manual for the Humminbird 1199ci HD SI Combo Fishfinder 409230-1 can be downloaded in .pdf
format if it did not come with your new fishing & marine technology, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Humminbird users keep a unique electronic library
for Humminbird fishing & marine technologys,
where you can use our link to download the user manual for the Humminbird 1199ci HD SI Combo Fishfinder 409230-1.
The user manual lists all of the functions of the Humminbird 1199ci HD SI Combo Fishfinder 409230-1,
all the basic and advanced features and tells you how to use the fishing & marine technology.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Humminbird service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Humminbird 1199ci HD SI Combo Fishfinder 409230-1. User manuals are also
available on the Humminbird website under Optics - Outdoor Gear - Fishing & Marine Technology.
