User manual for the Humminbird Helix 5 Portable Sonar GPS 409720-1
The user manual for the Humminbird Helix 5 Portable Sonar GPS 409720-1 provides
necessary instructions for the proper use of the product Optics - Outdoor Gear - Fishing & Marine Technology.

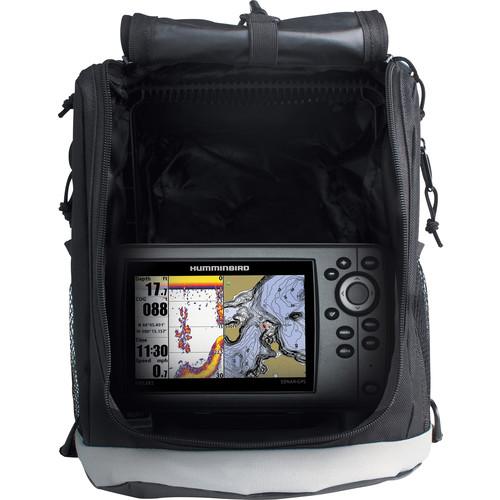

Take a fishfinder wherever your travels take you with the Helix 5 Portable Sonar GPS from Humminbird. This self-contained unit comes in an easy-to-carry soft case and features everything you need to mark structure and fish including a display, transducer, battery, and charger. The carry case features a roll-up front, allowing you to view the 5" LED-backlit display without removing it from the bag.
Two sonar beams combine with DualBeam PLUS sonar, which provides great detail and a wide coverage area. SwitchFire technology allows you to adjust the sensitivity of the display, so you can fine tune the returns to show greater detail or only show the strongest signals to help find more fish, or reject inference. 4000W of peak to peak power lets the fishfinder read bottom contours in water as deep as 1500'.
With an internal GPS antenna, you will always know where you are. Mark waypoints for structures or areas where you've had angling success and return to them at a later date. Built in UniMap cartography covers the contiguous US coastline, inland lakes and rivers at 30 meters per pixel resolution. Load optional cartography using the micro SD card slot to give you access to higher resolution maps of waterways across North America.
|
If you own a Humminbird fishing & marine technology and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Humminbird Helix 5 Portable Sonar GPS 409720-1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Humminbird Helix 5 Portable Sonar GPS 409720-1:
| Display Size (Diagonal) | 5" / 12.7 cm | | Display Size (HxV) | 800 x 480 | | Display Type | Color TFT | | Display Colors | 256 | | Sonar | Sonar Standard: DualBeam PLUS
Sonar Coverage: 20, 60° @ -10db
Sonar Frequency: 200/83 kHz | | Cable Length | 20' / 6.1 m | | Transducer Mount | Portable | | Temperature Sensor | Yes, on transducer | | GPS Support | Built-in | | GPS Tracking | Yes | | GPS Logger | Yes | | Stored Waypoints | 2500 | | Stored Routes | 45 | | Tracks/Points | 50/20000 | | Card Slot | Micro SD | | Power Draw | 615 mA | | Power Input | 10 to 20 VDC | | Power Source | 12 VDC 7 Ah AGM Battery | | Dimension | 8.8 x 10.3 x 9.8" / 22.3 x 26.1 x 25 cm | | Weight | Not specified by manufacturer | |
