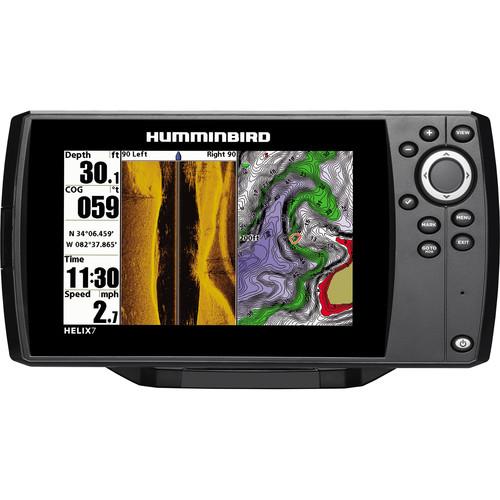

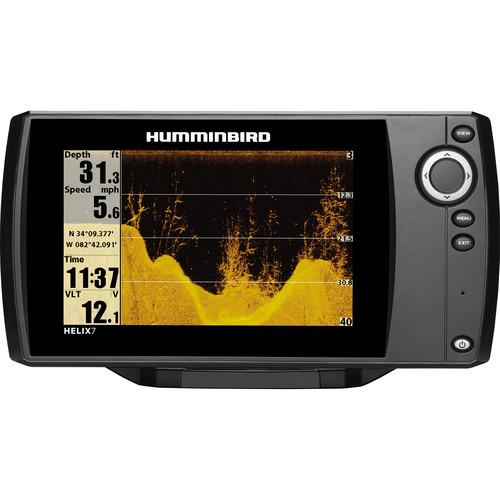

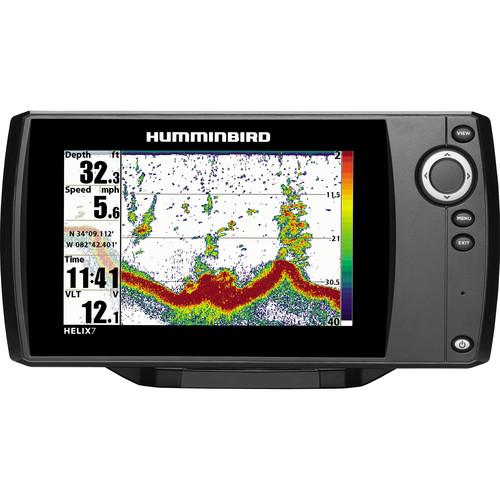

You can expect more hook-ups on your next outing when you have the Helix 7 SI GPS KVD Fishfinder from Humminbird installed on your boat. This combination fishfinder and GPS unit provides you with many views of the terrain under your boat. Side imaging gives you a 3D picture 100' to the side of your vessel, while down imaging gives you a fish-eye view of the world directly below your boat. SwitchFire technology allows you to choose between clear or max mode to filter out noise or show more detail using an advanced algorithm that filters out interference. DualBeam Plus lets you choose a wide coverage area, or a narrower sonar cone for more detail. This system has an RMS power output of 500W, and a peak to peak output of 4000W, providing an accurate representation of the bottom down to 100' (SI) & 1500' (2D), which is displayed on the 7" diagonal color screen. The transom-mounted transducer features multiple coverage angles of 20, 60 & (2) 85° @ -10db (Total of 180°), so that you can adjust the coverage to suit depth and angling conditions for the best returns.

With an internal GPS antenna, you will always know where you are and how fast you are going. Mark waypoints for structures or areas where you've had angling success and return to them at a later date. Built-in UniMap cartography covers the contiguous US coastline, inland lakes and rivers at 30 meters per pixel resolution. Load optional cartography using the micro SD card slot for access to higher resolution maps of waterways across North America.

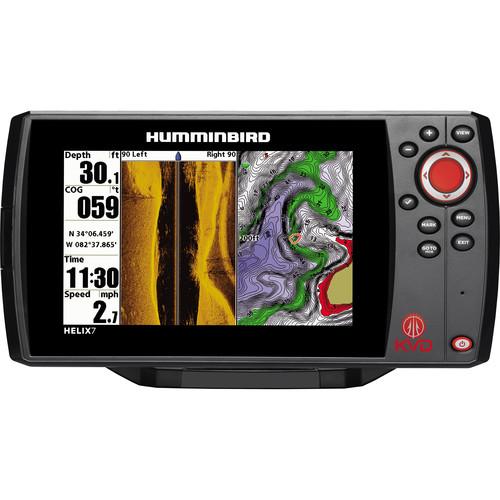

Also included are 3 of professional BASS Tour angler Kevin VanDam's favorite lures. These are 1 deep-diving crankbait, 1 KVD spinner bait, and a football ledge jig.
If you own a Humminbird fishing & marine technology and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Humminbird Helix 7 SI GPS KVD Fishfinder 409850-1KVD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Humminbird Helix 7 SI GPS KVD Fishfinder 409850-1KVD:
Specifications
Display Size (Diagonal) 7" / 17.8 cm
Display Type Color TFT
Display Colors 256
Sonar Sonar Standard: Side Imaging / Down Imaging / DualBeam PLUS
Sonar Coverage: 20, 60 & (2) 85° @ -10db (Total of 180°)
Sonar Frequency: 200/83/455 kHz
Depth 100' (SI) & 1500' (2D)
Power Output Peak to Peak 4000W
RMS 500W
Cable Length Transducer cable 20' / 6.1 m
Transducer Mount Transom
Temperature Sensor Yes, on transducer
GPS Support Yes
GPS Logger Yes
Stored Waypoints 2500
Stored Routes 45
Tracks/Points 50/20000
Card Slot 1 x microSD
Power Draw 800 mA
Power Input 10 to 20 VDC
Dimensions 10.5 x 5.8 x 3.7" / 26.7 x 14.7 x 9.4 cm
Weight Not specified by the manufacturer
