User manual for the IK Multimedia iRig PRO Universal Audio and MIDI IP-IRIG-PRO-IN
The user manual for the IK Multimedia iRig PRO Universal Audio and MIDI IP-IRIG-PRO-IN provides
necessary instructions for the proper use of the product Pro Audio - iOS/iPad - Audio Interfaces.

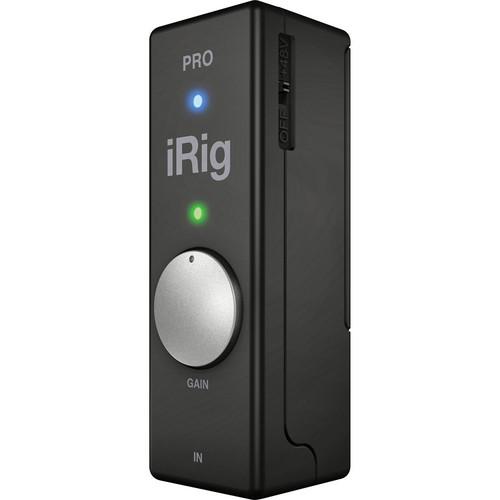

The iRig PRO Universal Audio and MIDI Interface for iOS and Mac from IK Multimedia allows you to record audio and MIDI data from external instruments, microphones, and 5-pin DIN MIDI controllers to your Mac or compatible iOS device. It features a single combination XLR/TS input and preamp that is capable of providing 48-volt phantom power to condenser mics. Once your audio source is connected, it can be recorded to your Mac or iOS device in up to 24-bit/48kHz quality.
In addition to audio, the iRig PRO can connect to MIDI gear with the included 5-pin DIN to 2.5mm cable, allowing you to use it as a MIDI interface. IK Multimedia also includes a USB cable, 30-pin iOS cable, and Lightning cable, providing connectivity out of the box regardless of your device. It is powered by the included 9-volt battery or via USB bus power if connected to your Mac.
|
If you own a IK Multimedia audio interfaces and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the IK Multimedia iRig PRO Universal Audio and MIDI IP-IRIG-PRO-IN in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the IK Multimedia iRig PRO Universal Audio and MIDI IP-IRIG-PRO-IN:
| Instrument Input | 1x 1/4" (6.3 mm) unbalanced Hi-Z TS (tip = signal, shield = ground) | | Maximum Input Level | Instrument: 30 mVpp to 6.9 Vpp
Microphone: 6 mVpp to 1.4 Vpp | | Input Impedance | Instrument In: 620 kΩ
Microphone In: 2 kΩ (approximate) | | Microphone Input | 1x balanced XLR (pin 2 = hot, pin 3 = cold, pin 1 = ground) | | Gain Control | Range: 47 dB | | Phantom Power | 48 V +/-10% | | Input Noise | -97 dB RMS, -105 dB(A) | | Distortion (THD) | 0.01% | | Frequency Response | 20 Hz to 20 kHz +/- 0.5 dB | | Conversion | 24-bit A/D | | Sampling Rate | 44.1, 48 kHz | | Power Requirements | 1 x 9 V battery | | System Requirements | iPhone 5, 4S, 4
iPod touch 4th and 5th generation
iPad, iPad 2, iPad 3rd and 4th generation, iPad mini
Mac OS X 10.5 or later with a free USB port | | Dimensions (W x L x H) | 1.26 x 4.14 x 0.85" (32.00 x 105.00 x 21.00 mm) | | Weight | 1.41 oz (40.00 g) | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.4 x 5.9 x 2.1" | |
The user manual for the IK Multimedia iRig PRO Universal Audio and MIDI IP-IRIG-PRO-IN can be downloaded in .pdf
format if it did not come with your new audio interfaces, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other IK Multimedia users keep a unique electronic library
for IK Multimedia audio interfacess,
where you can use our link to download the user manual for the IK Multimedia iRig PRO Universal Audio and MIDI IP-IRIG-PRO-IN.
The user manual lists all of the functions of the IK Multimedia iRig PRO Universal Audio and MIDI IP-IRIG-PRO-IN,
all the basic and advanced features and tells you how to use the audio interfaces.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from IK Multimedia service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the IK Multimedia iRig PRO Universal Audio and MIDI IP-IRIG-PRO-IN. User manuals are also
available on the IK Multimedia website under Pro Audio - iOS/iPad - Audio Interfaces.
