User manual Iluminar IR148-A100-POE Short-Range IR IR148-A100-POE-2-2

Operating instructions and pdf manual for use - Iluminar IR148-A100-POE Short-Range IR IR148-A100-POE-2-2 User manual, User manual Iluminar IR148-A100-POE Short-Range IR IR148-A100-POE-2-2, Iluminar, IR148-A100-POE, Short-Range, IR, IR148-A100-POE-


User manual for Iluminar IR148-A100-POE Short-Range IR IR148-A100-POE-2-2

Iluminar IR148-A100-POE Short-Range IR IR148-A100-POE-2-2
  • Manufacturer: Iluminar
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Additional Accessories - Illuminators
  • Safety instructions
  • Startup and operation of the illuminators
  • Tips for setting up your Iluminar
  • Settings and expert assistance
  • Contact Iluminar service
  • Troubleshooting
  • Warranty information
  • Price: 325 USD
We recommend checking out our discussion threads on the Iluminar IR148-A100-POE Short-Range IR IR148-A100-POE-2-2, which address similar problems with connecting and setting up Illuminators Iluminar.



User manual for the Iluminar IR148-A100-POE Short-Range IR IR148-A100-POE-2-2

The user manual for the Iluminar IR148-A100-POE Short-Range IR IR148-A100-POE-2-2 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Additional Accessories - Illuminators.

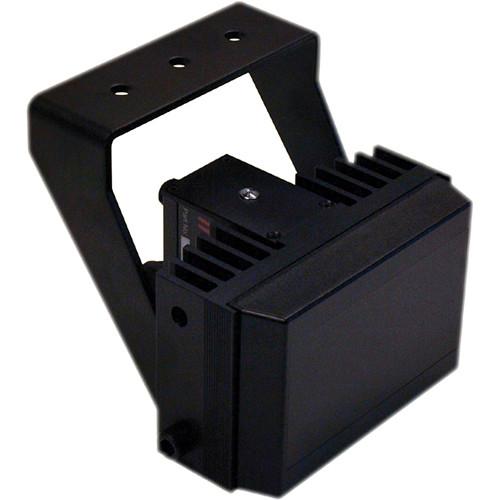

The Iluminar IR148-A100-POE Short-Range IR Illuminator is designed to provide dedicated lighting for IP cameras via PoE (Power over Ethernet)-enabled network infrastructure. This IP67-rated IR illuminator is resistant to ingress of dust and water, and thus ideal for outdoor applications. It is also vandal resistant. The hardened housing provides protection from harsh weather conditions and rapid temperature variations ranging from -58 to 140˚F (-50 to 60˚C).
If you own a Iluminar illuminators and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Iluminar IR148-A100-POE Short-Range IR IR148-A100-POE-2-2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Iluminar IR148-A100-POE Short-Range IR IR148-A100-POE-2-2:
General
Electronics High efficiency surface mount high power LEDs with advanced current limited integral control circuitry
Number of SMT LEDs 8
Construction High quality aluminum extrusion
Front Window Polycarbonate high transmittance protective (vandal-resistant) IR filter
Power Cable and Connector: IP67 rated RJ45 Cat5e compliant connector
Interface Connector Photocell following contact & remote telemetry input
Pressure Equalization Vent Prevents thermal expansion & pressure cycling
Photocell Adjustment via potentiometer
Illumination Adjustment via potentiometer
Mount Black, powder-coated stainless steel wall mount. Adjustable via M6 Allenkey (included)
Operating Temperature -58 to 140˚F (-50 to 60˚C)
Angle 100˚ x 50˚
Distance 40' (12 m)
HOV 94' (29 m)
Electrical
PoE IEEE802.3af compliant
Consumption 12 W
Wavelength Standard (A): 850 nm (semi-covert)
Faint red glow visible on the illuminator only (no visible light)
Certifications Safety (electrical, laser eye), IP, EMC, WEEE, RoHS
Dimensions 2.68 x 4.33 x 3.07" (68 x 110 x 78 mm)
Weight 1.65 lb (0.74 kg)
Packaging Info
Package Weight 2.55 lb
Box Dimensions (LxWxH) 12.5 x 6.0 x 5.9"
The user manual for the Iluminar IR148-A100-POE Short-Range IR IR148-A100-POE-2-2 can be downloaded in .pdf format if it did not come with your new illuminators, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Iluminar users keep a unique electronic library for Iluminar illuminatorss, where you can use our link to download the user manual for the Iluminar IR148-A100-POE Short-Range IR IR148-A100-POE-2-2.

The user manual lists all of the functions of the Iluminar IR148-A100-POE Short-Range IR IR148-A100-POE-2-2, all the basic and advanced features and tells you how to use the illuminators. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Iluminar service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Iluminar IR148-A100-POE Short-Range IR IR148-A100-POE-2-2. User manuals are also available on the Iluminar website under Surveillance - Surveillance Video - Additional Accessories - Illuminators.
