User manual for the Infortrend EonStor DS 3024RTB 24-Bay RAID Storage DS3024RT2B00F
The user manual for the Infortrend EonStor DS 3024RTB 24-Bay RAID Storage DS3024RT2B00F provides
necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - NAS Enclosures.

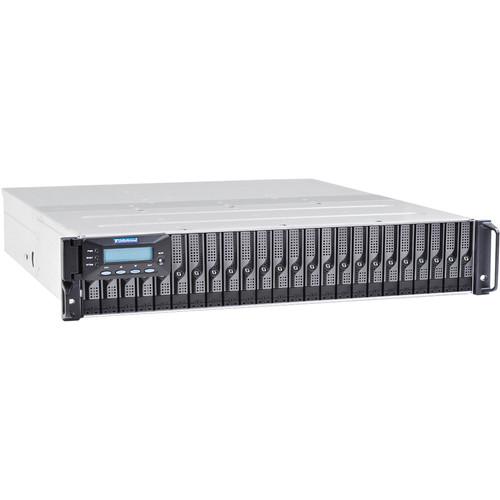

Designed for 2.5" drives and for use within SAN and DAS environments, the EonStor DS 3024RTB 24-Bay RAID Storage System from Infortrend is a high IOPS solution that is well suited for database and VDI applications, while bandwidth enhances media editing and surveying jobs. It delivers powerful performance, wide scalability, and enterprise data services. It also has flexibility to integrate with hybrid host interfaces and modular hardware.
The EonStor DS 3024RTB features a 2U, 24-bay small form factor with dual redundant storage controllers, and 4 x 4GB of cache memory per controller, for a total of 32GB. Systems are configured with 8 x 1 Gb/s iSCSI ports for out-of-the-box connectivity to various clients with a combination of speed and stability, but can be transformed using hybrid host interfaces. Users can mix and match different standards, with options including 16 Gb/s Fibre Channel, 8 Gb/s Fibre Channel, 10 Gb/s iSCSI, 1 Gb/s iSCSI, 12 Gb/s SAS, and 6 Gb/s SAS. Hybrid host interfaces help support storage multitasking, allowing the bandwidth of the Fibre Channel with the high speed connectivity of the iSCSI or SAS. Drives are hot-swappable, as are the redundant power supplies.
The EonStor DS 3024RTB systems are scalable with compatible JBOD expansion enclosures, helping to provide added capacity as the need for more space grows. JBODs connect via a 6 Gb/s SAS are are offered in various form factors, including high density 4U 60-bay units. There is also compatibility for self-encrypting drives.
Performance reaches up to 1,300,000 IOPS with 5,500 MB/s throughput. This helps users who work with IOPS-intensive applications such as databases and VDI applications. This bandwidth helps enhance media editing and surveying jobs, which can also help reduce system bottlenecks.
The EonStor DS 3024RTB operates using two redundant 530W power supplies that are compatible with 100 VAC @ 10A to 240 VAC @ 5A with auto-switching PFC at frequencies of 47-63 Hz. This RAID is compatible with systems running Windows, Mac, RedHat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, VMWare, Citrix, IBM AIX, and HP-UX. Included is a power cord, a 3-year limited hardware warranty, and 8x5 phone, web, and email support.
|
If you own a Infortrend nas enclosures and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Infortrend EonStor DS 3024RTB 24-Bay RAID Storage DS3024RT2B00F in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Infortrend EonStor DS 3024RTB 24-Bay RAID Storage DS3024RT2B00F:
| Form Factor | 2U, 24-bay SFF | | Storage Controller | Dual Redundant Storage Controllers | | Onboard GbE Ports (per controller) | 4 x 1 Gb/s iSCSI ports | | Host Connectivity (per controller) | 2 x 16 Gb/s FC ports
4 x 8 Gb/s FC ports
2 x 10 Gb/s iSCSI ports (SFP+ or RJ-45)
4 x 1 Gb/s iSCSI ports
2 x 6 Gb/s SAS ports
2 x 12 Gb/s SAS ports | | Cache Memory (per controller) | 16 GB (4 x 4 GB) | | Max. Drives (per system) | 24 | | Expansion Enclosure (JBOD) | JB 2012-1
JB 2016-1
JB 2024B
JB 2048
JB 2060 | | SAS Expansion Ports (per controller) | 1 x 6 Gb/s SAS 4x wide port | | Drive Connectors | 6 Gb/s SATA connectivity
S.M.A.R.T. support
Automatic bad-sector reassignment
Dedicated bandwidth to each connected drive | | Cache Backup Techniques | BBU + Flash module | | Supported Drives | 2.5" SATA/SAS SSD
2.5" 10K rpm SAS HDD
2.5" 15K rpm SAS HDD
Please be aware that when using SATA drives, a MUX board is required | | RAID | Global, dedicated, or enclosure hot-spare RAID levels supported : RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60 Online expansion by:
- Adding new drives
- Copying and replacing drives with drives of larger capacity
RAID migration Configurable stripe size and write policy per system Intelligent drive handling
- In degraded mode: skips irreparable blocks to continue rebuild
- In normal operation: data-block verification and repair | | Power & Cooling | Power Supplies: 2 x redundant 530 W
AC Voltage: 100 VAC @ 8 A to 240 VAC @ 4 A with PFC (auto-switching)
Frequency: 47-63 Hz
Power Consumption: 308
Heat dissipation: 1,186 BTU/hour | | Environmental | Operating Temperature with BBU or CBM: 32 to 95°F / 0 to 35°C
Operating Temperature without BBU or CBM: 32 to 104°F / 0 to 40°C
Non-Operating Temperature: -40 to 140°F / -40 to 60°C
Operating Altitude: Sea Level to 12,000' / 3,657 m
Non-Operating Altitude: Sea Level to 40,000' / 12,192 m
Relative Humidity: 5 to 95% non-condensing, operating, and non-operating | | Green Design | 80 PLUS power supplies delivering more than 80% energy efficiency
Intelligent multi-level drive spin-down | | RAID Configurations | RAID level 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
Up to 32 logical drives and 64 partitions per logical volume
Up to 2,048 LUNs
Global, dedicated or enclosure hot-spare
Online expansion by:
Adding new drives
Copying and replacing drives with drives of larger capacity
RAID migration
Configurable stripe size and write policy per system
Intelligent drive handling
- In degraded mode: skips irreparable blocks to continue rebuild
- In normal operation: data-block verification and repair | | Regulatory | Safety: UL, BSMI, CB, EAC
Electromagnetic Compatibility: CE, BSMI, FCC, KC | | Availability and Reliability | Redundant, hot-swappable hardware modules
Multi-pathing support (EonPath), device mapper support
Cache backup technology: helps protect cached data during power outages by flushing data into flash memory
Port trunking / link aggregation (IEEE 802.3ad), fail-over, jumbo frame | | Management | Web-based SANWatch management software RS232 serial port for local access to firmware-embedded utility Automated cache flush and caching mode operation per enclosure status Telnet and SSH system monitoring via Ethernet Platform-independent firmware management GUI LCD keypad panel for monitoring and access to all configuration options Module status LED indicators: component presence detection & thermal sensors via I2C bus | | Notification | Email, Fax, LAN broadcast, SNMP traps, SMS | | OS Support | Microsoft Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 (including Hyper-V)
Red Hat Enterprise Linux
SUSE Linux Enterprise
Sun Solaris
Mac OS X
HP-UX
IBM AIX
VMware
Citrix XenServer | | Local Replication | Snapshot
Snapshot Images per Source Volume
Standard License: 64
Advanced License: 256
Snapshot Images per System
Standard License: 128
Advanced License: 4,096
Volume Copy/Mirror
Source Volumes per System
Standard License: 16
Advanced License: 32
Replication Pairs per Source Volume
Standard License: 4
Advanced License: 8
Replication Pairs per System
Standard License: 64
Advanced License: 256
Please note that the standard license is included by default and the advanced license is optional | | iSCSI Thin Provisioning | "Just-in-time" capacity allocation helps optimize storage utilization and eliminates allocated but unused storage space | | Self-Encrypting Drive | Factory encryption secures data plus makes deletion simple and complete | | Remote Replication | Replication per Source Volume: 16
Replication Pairs per Source Volume: 4
Replication Pairs per System: 64
Please note that this is an optional license | | Automated Storage Tiering | Two or four storage tiers based on drive types
SSD support
Automated data migration with scheduling options
Please note that this is an optional license | | SSD Cache | Accelerating data access for random read-intensive environments, such as OLTP Supports up to four SSDs per controller Recommended DIMM capacity per controller for SSD Cache pool:
- DRAM: 2 GB / Max. SSD Cache Pool Size: 150 GB
- DRAM: 4 GB / Max. SSD Cache Pool Size: 400 GB
- DRAM: 8 GB / Max. SSD Cache Pool Size: 800 GB
- DRAM: 16 GB / Max. SSD Cache Pool Size: 1,600 GB
Please note that this is an optional license | | Dimensions | 17.56 x 3.46 x 20.75" / 446.00 x 88.00 x 527.00 mm (without chassis ears and protrusions) | | Weight | 43.17 lb / 19.58 kg (without HDDs) | |
