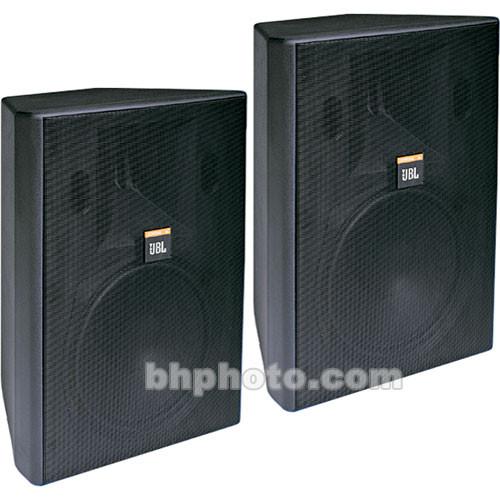

User manual for the JBL Control 28 Speaker - Black (Pair) CONTROL 28
The user manual for the JBL Control 28 Speaker - Black (Pair) CONTROL 28 provides
necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.
Designed for both indoor and outdoor applications, the Control 28 is one of the largest of JBL's indoor/outdoor Control Contractor Series speakers. Ideal for theme park, health clubs, under balcony, parks and restaurants, the Control 28 is easily mounted and highly theft deterrent due to the unique InvisiBall mounting. InvisiBall adds the benefit of vertical rotation of up to 37° off-axis and horizontal rotation of up to 44° off-axis and all adjustments are made from behind the logo badge without having to remove the grill. Weather resistance is maximized using zinc plated grills to resist rust, a polycarbonate tweeter reinforced with a thin film of titanium for added rigidity and protection against the sun, wind, rain and dust, using WeatherEdge, a seamless, rubberized extension of the woofer adding protection to critical transducer elements.
|
If you own a JBL install speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the JBL Control 28 Speaker - Black (Pair) CONTROL 28 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the JBL Control 28 Speaker - Black (Pair) CONTROL 28:
| Active or Passive | Passive | | Frequency Response | 60Hz to 16kHz frequency range (-10dB) | | Power Capacity | 175 Watts | | Maximum Sound Pressure Level (SPL) | Not applicable | | Nominal Sensitivity | 92dB SPL, 1W, 1m | | Impedance | 8 ohms | | Crossover | 2.8kHz | | Shielded | Not applicable | | Low Frequency Driver | 8 in. (200 mm) Polypropylene cone w/WeatherEdge | | High Frequency Driver | 1 in. (25 mm) Titanium coated polycarbonate | | Enclosure Material | HIPS (High Impact Polystyrene) | | Input Connections | Spring terminals, accepts banana plug | | Environmental | Conforms to Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splash-proof rating | | Dimensions | 15.0 x 11.0 x 8.6 in. (380 x 280 x 220 mm) | | Weight | 12 lbs. (5.5kg) each | | Specialties | Full-Range power limiting to protect network and transducers | | Package Weight | 29.5 lb | | Box Dimensions (LxWxH) | 21.0 x 17.5 x 12.9" | |
The user manual for the JBL Control 28 Speaker - Black (Pair) CONTROL 28 can be downloaded in .pdf
format if it did not come with your new install speakers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other JBL users keep a unique electronic library
for JBL install speakerss,
where you can use our link to download the user manual for the JBL Control 28 Speaker - Black (Pair) CONTROL 28.
The user manual lists all of the functions of the JBL Control 28 Speaker - Black (Pair) CONTROL 28,
all the basic and advanced features and tells you how to use the install speakers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from JBL service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the JBL Control 28 Speaker - Black (Pair) CONTROL 28. User manuals are also
available on the JBL website under Pro Audio - Installation Sound - Install Speakers.
