User manual Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294

Operating instructions and pdf manual for use - Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294 User manual, User manual Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294, Klipsch, Reference, Premiere, RP-280FA, Dolby, Atm


User manual for Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294

Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294
  • Manufacturer: Klipsch
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Speakers - Floor-Standing Speakers
  • Safety instructions
  • Startup and operation of the floor-standing speakers
  • Tips for setting up your Klipsch
  • Settings and expert assistance
  • Contact Klipsch service
  • Troubleshooting
  • Warranty information
  • Price: 959 USD
Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294 Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294

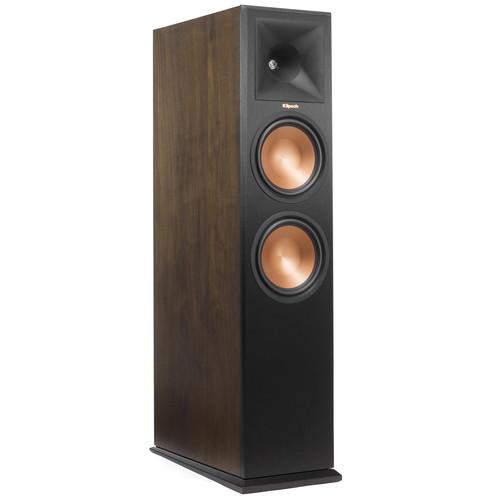

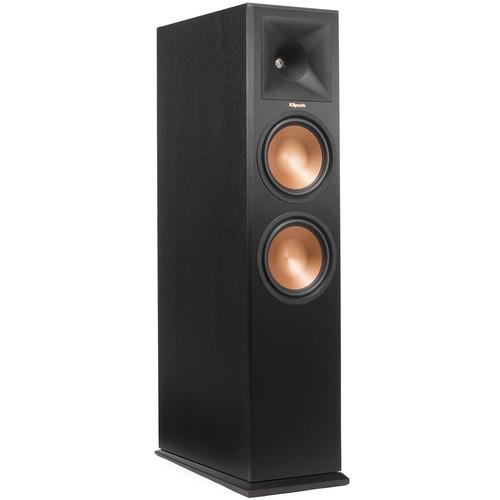

Click to enlarge image

We recommend checking out our discussion threads on the Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294, which address similar problems with connecting and setting up Floor-Standing Speakers Klipsch.



User manual for the Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294

The user manual for the Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294 provides necessary instructions for the proper use of the product TVs & Entertainment - Speakers - Floor-Standing Speakers.

The black Klipsch Reference Premiere RP-280FA Dolby Atmos Front Speaker is a single hybrid speaker that combines main and height speaker channels for use in Dolby Atmos audio systems. This speaker's main channel can handle up to 150W of continuous power, while the height-channel supports up to 50W of continuous power. This speaker cabinet houses two hybrid Tractrix horns for optimal high-frequency performance and a rear Tractrix port for clean low-frequency playback. The speaker cabinet also incorporates two 1" titanium tweeters, a 4" cerametallic cone woofer, and two 8" cerametallic cone woofers.
If you own a Klipsch floor-standing speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294:
Specifications
Frequency Response Main: 32 Hz - 25 kHz ± 3 dB
Height: Conforms to Dolby Atmos Specification
Sensitivity Main: 98 dB @ 2.83 V / 1 m
Height: Conforms to Dolby Atmos Specification
Power Handling Main Continuous: 150 W
Main Peak: 600 W
Height Continuous: 50 W
Height Peak: 600 W
Nominal Impedance Main: 8 ohms
Height: 8 ohms
Crossover Frequency Main: 1750 Hz
Height: 2 kHz
High Frequency Driver Main: 1 x 1.0" / 2.5 cm Titanium LTS tweeter with Hybrid Tractrix Horn
Height: 1 x 1.0" / 2.5 cm Titanium LTS tweeter with Hybrid Tractrix Horn
Low Frequency Driver Main: 2 x 8.0" / 20.4 cm Cerametallic cone woofers
Height: 1 x 4.0" / 10.2 cm Cerametallic cone woofer
Enclosure Bass reflex via rear-firing Tractrix port
Inputs Dual binding posts
Enclosure MDF
Finish Wood veneer
Dimensions (HxWxD) 43.0 x 10.5 x 19.0" / 109.2 x 26.7 x 48.3 cm
Weight 71.75 lb / 32.5 kg
Packaging Info
Package Weight 90.0 lb
Box Dimensions (LxWxH) 49.0 x 25.0 x 15.5"
The user manual for the Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294 can be downloaded in .pdf format if it did not come with your new floor-standing speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Klipsch users keep a unique electronic library for Klipsch floor-standing speakerss, where you can use our link to download the user manual for the Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294.

The user manual lists all of the functions of the Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294, all the basic and advanced features and tells you how to use the floor-standing speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Klipsch service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Klipsch Reference Premiere RP-280FA Dolby Atmos Front 1062294. User manuals are also available on the Klipsch website under TVs & Entertainment - Speakers - Floor-Standing Speakers.
