User manual for the Lectrosonics SMQV Super Miniature Wireless Microphone SMQV-22

The user manual for the Lectrosonics SMQV Super Miniature Wireless Microphone SMQV-22 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Transmitters.

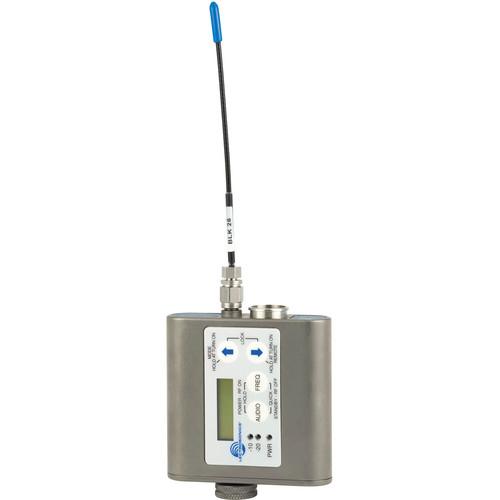

The Lectrosonics SMQV Super Miniature Wireless Microphone Transmitter incorporates Lectrosonics patented Digital Hybrid Wireless technology, in a package no bigger than a pager. The SMQV transmitter is miniature in size yet rugged enough to withstand rigorous daily use in the field or in studios.

To meet the demand for both extended operating range and extended battery life, the SMQV transmitters offer selectable output power of 100 or 250 mW. A third selection at 50 mW is provided for some theatrical applications, where the system design specifies lower transmitter power. The SMQV transmitter offers 256 user-selectable UHF frequencies. The Switchcraft TA5M audio input has user-calibrated 44 dB gain range, and accepts electret lavaliere mics, dynamic mics, or line level signals. A DSP-controlled analog audio limiter is employed before the A-D converter. The limiter has a range of more than 30 dB and a dual-release envelope, making the limiter transparent while maintaining low distortion.

Lectrosonics patented Digital Hybrid technology revolutionizes wireless microphone transmission. Digital audio signal is converted and encoded for analog transmission, then decoded and converted back to digital audio at the receiver. The result is an exceptionally low noise floor as the compandor circuit is eliminated and clear audio reception is retained at greater distances.

The non-corrosive, machined aluminum casing is splash proof and features an LCD display with membrane switch control panel. The transmitter is powered by two AA lithium, NiMH or alkaline batteries for up to 14.5 hours (lithium). The SMQV transmitter is completely compatible with all Lectrosonics Digital Hybrid wireless receivers, as well as older Lectrosonics analog receivers.
If you own a Lectrosonics wireless transmitters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lectrosonics SMQV Super Miniature Wireless Microphone SMQV-22 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Lectrosonics SMQV Super Miniature Wireless Microphone SMQV-22Download user manual for Lectrosonics SMQV Super Miniature Wireless Microphone SMQV-22
(PDF file, 1.99 MB)
Additional parameters of the Lectrosonics SMQV Super Miniature Wireless Microphone SMQV-22:
Specifications
    Operating Frequency 563.200 - 588.700 MHz
    Frequency Range 256 frequencies in 100 kHz steps for one 25.5 MHz wide block
    Channel Spacing 100 kHz
    Frequency Selection Control panel mounted membrane switches
    RF Power Output Switchable; 50, 100 or 250 mW
    Compatibility Modes Digital Hybrid Wireless® (400 Series), 200 Series, 100 Series, Mode 3 , Mode 6, IFB
    Pilot Tone 25 to 32 kHz; 5 kHz deviation (in 400 Series Mode)
    Frequency Stability ± 0.002%
    Deviation ± 75 kHz max. (in 400 Series Mode)
    Spurious Emission 60 dB below carrier
    Equivalent Input Noise -125 dBV, A-weighted
    Input Level
    • If set for dynamic mic: 0.5 mV to 50 mV before limiting; greater than 1 V with limiting
    • If set for electret lavaliere mic: 1.7 uA to 170 uA before limiting; greater than 5000 uA (5 mA) with limiting
    • Line level input: 17 mV to 1.7 V before limiting; greater than 50 V with limiting
    Input Impedance
    • Dynamic mic: 300 Ohms
    • Electret lavaliere: input is virtual ground with servo adjusted constant current bias
    • Line level: 2.7 k Ohms
    Limiter DSP Controlled Soft limiter, 30 dB range
    Bias Voltage(s) Fixed 5 V at up to 5 mA; selectable 2 V or 4 V servo bias for any electret lavaliere
    Gain Range 44 dB; panel mounted membrane switches
    Modulation Dual bicolor LEDs indicate modulation of -20, -10, 0, +10 dB referenced to full modulation
    Controls Control panel with LCD and four membrane switches
    Low Frequency Roll-Off Adjustable from 35 to 150 Hz
    Audio Frequency Response 35 Hz to 20 kHz, +/-1 dB
    Signal to Noise Ratio SmartNR Off:
    • No Limiting: 103.5 dB
    • Limiting: 108 dB
    SmartNR Normal:
    • No Limiting: 107 dB
    • Limiting: 111.5 dB
    SmartNR Full:
    • 108.5 dB
    • 113 dB
    Total Harmonic Distortion 0.2% typical (400 Series mode)
    Audio Input Jack Switchcraft 5-pin locking (TA5F)
    Antenna Flexible, unbreakable steel cable
    Batteries Two 1.5 Volt AA lithium or rechargeable; NiMH recommended
    Battery Life 50 mW:
    • Alkaline: 6 hrs
    • Lithium: 14.5 hrs
    • 2500 MA NiMH: 8.5 hrs
    100 mW
    • Alkaline: 5.5 hrs
    • Lithium: 14 hrs
    • 2500 MA NiMH: 8.5 hrs
    250 mW
    • Alkaline: 1.75 hrs
    • Lithium: 7.5 hrs
    • 2500 MA NiMH: 5 hrs
    Emission Standard 180KF3E
    Dimensions 2.3 x 2.4 x 0.64" (58 x 60 x 16 mm) not including microphone
    Weight 3.7 oz.(105 g) with lithium batteries
    Packaging Info
    Package Weight 1.05 lb
    Box Dimensions (LxWxH) 9.7 x 8.1 x 3.0"
    The user manual for the Lectrosonics SMQV Super Miniature Wireless Microphone SMQV-22 can be downloaded in .pdf format if it did not come with your new wireless transmitters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lectrosonics users keep a unique electronic library for Lectrosonics wireless transmitterss, where you can use our link to download the user manual for the Lectrosonics SMQV Super Miniature Wireless Microphone SMQV-22.

    The user manual lists all of the functions of the Lectrosonics SMQV Super Miniature Wireless Microphone SMQV-22, all the basic and advanced features and tells you how to use the wireless transmitters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lectrosonics service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lectrosonics SMQV Super Miniature Wireless Microphone SMQV-22. User manuals are also available on the Lectrosonics website under Pro Audio - Location Sound - Wireless Transmitters.
