User manual for the Leupold Mark AR MOD 1 4-12x40 Riflescope 115392
The user manual for the Leupold Mark AR MOD 1 4-12x40 Riflescope 115392 provides
necessary instructions for the proper use of the product Optics - Riflescopes & Sights - Riflescopes.

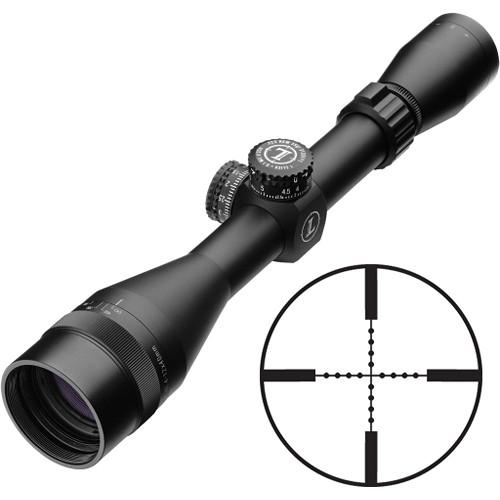

With exposed tactical P5 elevation turrets that are optimized for .223 calibers, the matte black Mark AR MOD 1 4-12x40 Riflescope from Leupold is designed for medium-to-long range shooting and features a Mil Dot Reticle. The optical system offers 4.5-11.5x actual magnification, Multicoat 4 anti-glare coatings that reduce glare and enhance transmission, and a linear field of view range of 20.4-9.7' at 100 yd. To further reduce glare and improve image sharpness, the lenses have their edges blackened. You don't have to worry about scratching the objective while you move through thick woods or bushes, the DiamondCoat anti-scratch coating will protect the surface from accidental damage. To help you compensate for wind drift and ballistic bullet drop, the scope offers a 67 MOA windage and elevation adjustment range with a 1/10 mil impact point correction.
The Mil Dot Reticle is useful for estimating ranges to target and features think posts, wide gate, and hash marks spaced at 1 mil increments on a thin crosshair. Because of its location in the second focal plane, the reticle will remain the same in size as you change zoom factor.
The aluminum housing is lightweight and durable, waterproof, and argon-krypton-filled fogproof. It is compatible with 1" riflescope mounting rings and offers a lockable fast focus eyepiece with a low profile tactile zoom lever, which help you with an instant one-finger zoom adjustment. It also offers a focusing ring on the objective bell to adjust the parallax distance.
|
If you own a Leupold riflescopes and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Leupold Mark AR MOD 1 4-12x40 Riflescope 115392 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Leupold Mark AR MOD 1 4-12x40 Riflescope 115392:
| Magnification | Actual magnification: 4.5-11.5x | | Objective Lens Diameter | 40mm | | Main-Tube Diameter | 1" (25.4 mm) | | Reticle | Mil Dot
2nd focal plane | | Field of View | 20.4-9.7' @ 100 yd (6.8-3.2 m @ 100 m) | | Parallax Correction | 150 yd | | Eye Relief | 4.9-3.7" (124.5-94 mm) | | Exit Pupil Diameter | 8.8-3.5 mm | | Impact Point Correction | 1/10 mil | | Maximum Windage/Elevation Adjustment | 67 MOA | | Weatherproofing | Waterproof and fogproof | | Length | 12.4" (315 mm) | | Weight | 14.9 oz (422 g) | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 14.0 x 3.3 x 2.9" | |
The user manual for the Leupold Mark AR MOD 1 4-12x40 Riflescope 115392 can be downloaded in .pdf
format if it did not come with your new riflescopes, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Leupold users keep a unique electronic library
for Leupold riflescopess,
where you can use our link to download the user manual for the Leupold Mark AR MOD 1 4-12x40 Riflescope 115392.
The user manual lists all of the functions of the Leupold Mark AR MOD 1 4-12x40 Riflescope 115392,
all the basic and advanced features and tells you how to use the riflescopes.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Leupold service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Leupold Mark AR MOD 1 4-12x40 Riflescope 115392. User manuals are also
available on the Leupold website under Optics - Riflescopes & Sights - Riflescopes.
