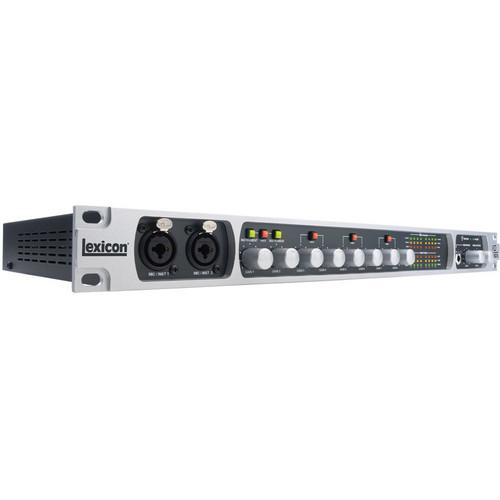

The I-O FW810S from Lexicon is a 10 input, 12 output FireWire interface that along with the included software, functions as professional recording studio contained in a single rack unit. Features include eight dbx high-voltage, ultra low noise microphone preamps, Pantheon II reverbs, and a powerful software mixing board with dbx dynamics and hardware monitor reverb.

Built-in dbx Type IV conversion preserves the dynamic range of digital audio even when levels get too high. Recordings can acquire an oversaturated quality once only found on big analog recorders. The conversion delivers more headroom, capturing subtle details in higher level signals instead of hard clipping them.

The included software mixer adds integrated dbx dynamics (compressor, gate, limiter, EQ) to any digital audio workstation. It allows for easily adjusting levels, routing signals through the analog inputs and outputs, and previewing reverbs and dynamics.

The hardware does the processing, so mixing and fine tuning recordings can be done in real-time with zero latency. Save and load snapshots of mixer settings and up to five monitor mixes - one for the main control mix, and up to four for individual band members.

The unit is compatible with any DAW, including Pro Tools 9. The IO software suite also includes the Pantheon II reverb plug-in from Lexicon, XLIS 3 SE Synth Virtual Instrument and Toontrack's EZ Drummer Lite. And it all works seamlessly in the included Cubase LE 4 software.
If you own a Lexicon audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lexicon I-O FW810S - FireWire Audio Interface IOFW810S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Lexicon I-O FW810S - FireWire Audio Interface IOFW810SDownload user manual for Lexicon I-O FW810S - FireWire Audio Interface IOFW810S
(PDF file, 4.19 MB)
Additional parameters of the Lexicon I-O FW810S - FireWire Audio Interface IOFW810S:
Mic Preamps 8
Converters 24-bit
Sample Rates 44.1, 48, 88.4 and 96kHz
Inputs 8 x Combo XLR female
1 x RCA coaxial S/PDIF
Input Impedance Microphone: 3kΩ balanced
Line: 20kΩ balanced, 13kΩ unbalanced
Instrument: 500kΩ
Maximum Input Level Microphone: +8dBu @ minimum input gain
Line: +22dBu
Instrument: +10dBu
Gain Microphone: +55dB
Outputs 8 x 1/4" TRS phone
1 x 1/4" TRS phone Headphone
1 x RCA coaxial S/PDIF
Output Impedance 32Ω balanced, 16Ω unbalanced
Maximum Output Level Line: +20dBu
Headphone: 250mW/channel @ 50Ω
MIDI 2 x 5-pin DIN I/O
Dynamic Range A/D (24-bit): 110dB typical, A-weighted, 20Hz to 20kHz
D/A (24-bit): 110dB typical, A-weighted, 20Hz to 20kHz
A/D/A (24-bit): 108dB typical, A-weighted, 20Hz to 20kHz
THD + N Microphone: <0.02%, 20Hz to 20kHz, <0.002%, 1kHz, -6dBu
Line Input: <0.02%, 20Hz to 20kHz, <0.002%, 1kHz, -6dBu
Instrument Input: <0.08%, 1kHz, +4dBu
Noise Microphone EIN: -127dBu @ 55dB gain typical (150Ω source), -130dBu @ 55dB gain typical A-weighted (150Ω)
Frequency Response Microphone: 20Hz to 20kHz, +/-1.5dB
Line Input: 20Hz to 20kHz, +/-1.5dB
Instrument Input: 20Hz to 20kHz, +/-2.5dB
Phantom Power 48V
Controls Phones Level
Trim
48V
Output Level
Power 100~240 VAC, 50/60Hz, 30W
Compatibility ASIO, Core Audio, WDM drivers
System Requirements Mac
Intel multi-core system (required)
OS X 10.4.9 or later
1GB RAM
FireWire 400 port
1024 x 768 pixels display resolution
DVD-ROM drive
Internet connection

PC
1.8GHz CPU or faster
Windows XP SP2, Vista 32, Windows 7
1GB RAM
FireWire 400 port
DVD-ROM drive
Internet connection
Dimensions (WxDxH) 19 x 10.5 x 1.7" (483 x 267 x 43mm)
Weight 7.7 lb (3.5kg)
Packaging Info
Package Weight 10.1 lb
Box Dimensions (LxWxH) 20.8 x 14.0 x 4.3"
The user manual for the Lexicon I-O FW810S - FireWire Audio Interface IOFW810S can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lexicon users keep a unique electronic library for Lexicon audio interfaces & systemss, where you can use our link to download the user manual for the Lexicon I-O FW810S - FireWire Audio Interface IOFW810S.

The user manual lists all of the functions of the Lexicon I-O FW810S - FireWire Audio Interface IOFW810S, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lexicon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lexicon I-O FW810S - FireWire Audio Interface IOFW810S. User manuals are also available on the Lexicon website under Pro Audio - Computer Audio - Audio Interfaces & Systems.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Lexicon I-O FW810S - FireWire Audio Interface IOFW810S - no comments have been made yet - be the first to add a comment
