User manual for Linksys LAPN300 Wireless-N300 Access Point LAPN300
- Manufacturer: Linksys
- Basic description and contents of package
- Product classification: Computers & Solutions - Networking - Wireless Access Points
- Safety instructions
- Startup and operation of the wireless access points
- Tips for setting up your Linksys
- Settings and expert assistance
- Contact Linksys service
- Troubleshooting
- Warranty information
- Price: 78 USD
|
We recommend checking out our discussion threads on the Linksys LAPN300 Wireless-N300 Access Point LAPN300,
which address similar problems with connecting and setting up Wireless Access Points Linksys.
|
User manual for the Linksys LAPN300 Wireless-N300 Access Point LAPN300
The user manual for the Linksys LAPN300 Wireless-N300 Access Point LAPN300 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.

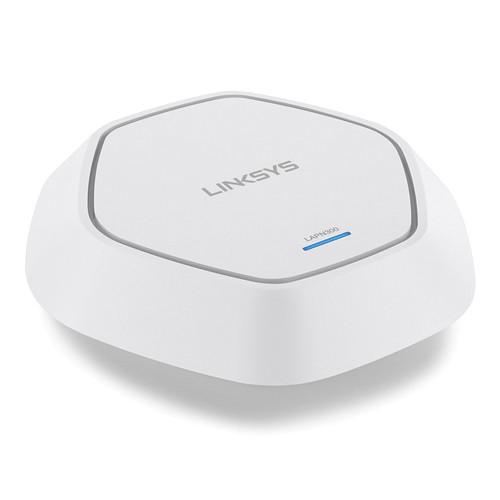

Leverage the speed and reliability of the Wireless-N network standard with the LAPN300 Wireless-N300 Access Point from Linksys. With this single band access point operates on the 2.4 GHz frequency offering a maximum data throughput of up to 300 Mbps. Along with the 2.4 GHz operating frequency, this Linksys access point is compatible with 802.11b/g network standards ensuring nearly any Wi-Fi compatible device will be able to connect to it.
With integrated Power over Ethernet (PoE) connectivity you can eliminate the need for additional power adapters allowing this access point to be installed nearly anywhere. Additional features include an integrated Gigabit Ethernet port, workgroup bridge mode for range extension, advanced network security options, IPv6 support, and much more.
|
If you own a Linksys wireless access points and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Linksys LAPN300 Wireless-N300 Access Point LAPN300 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Linksys LAPN300 Wireless-N300 Access Point LAPN300:
| Standards | IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.3af, and 802.3at | | Frequency | 2.4 GHz | | MIMO | 2 x 2 | | Internal Antennas | Yes | | RF Output Power | High power PA | | PoE | 802.3af / 802.3at | | Kensington Lock Support | Yes | | LED | One system LED | | AC Power Adapter | 12 V / 1 A | | Frequency Band and Operating Channels | 2.412 to 2.462 GHz; 11 channels | | Antenna gain in dBi | 1.8 dBi | | Transmitted Power | 802.11b @ 11 Mbps: 21 dBm
802.11g @ 54 Mbps: 20 dBm
802.11n @ HT20/HT40 MCS7/15: 19 dBm | | Receiver Sensitivity | 802.11b @ 11 Mbps: -85 dBm
802.11g @ 54 Mbps: -70 dBm
802.11n @ HT20 MCS7/15: -65 dBm
802.11n @ HT40 MCS7/15: -62 dBm | | Maximum Power Consumption | 12.5 W | | Compliance | Class B, wireless | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Operating Humidity | 10 to 85% non-condensing | | Storage Humidity | 10 to 90% non-condensing | | Regulatory Certifications | FCC, CE, IC | | Multiple SSIDs | 8 | | Number of VLANs | 9 | | Management Interface | Web (http/https), SNMP | | Event Notification | Local Log, Remote Syslog, and Email Alerts | | Network Diagnostics | Log, Ping, Packet Capture | | Dimensions | 9.57 x 9.33 x 1.72" / 243.08 x 236.98 x 43.69 mm | | Weight | 1.0800 lb / 0.4899 kg | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 13.2 x 10.5 x 2.6" | |
The user manual for the Linksys LAPN300 Wireless-N300 Access Point LAPN300 can be downloaded in .pdf
format if it did not come with your new wireless access points, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Linksys users keep a unique electronic library
for Linksys wireless access pointss,
where you can use our link to download the user manual for the Linksys LAPN300 Wireless-N300 Access Point LAPN300.
The user manual lists all of the functions of the Linksys LAPN300 Wireless-N300 Access Point LAPN300,
all the basic and advanced features and tells you how to use the wireless access points.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Linksys service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Linksys LAPN300 Wireless-N300 Access Point LAPN300. User manuals are also
available on the Linksys website under Computers & Solutions - Networking - Wireless Access Points.
