User manual for the Linksys LGS318 18-Port Smart Gigabit Switch LGS318
The user manual for the Linksys LGS318 18-Port Smart Gigabit Switch LGS318 provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

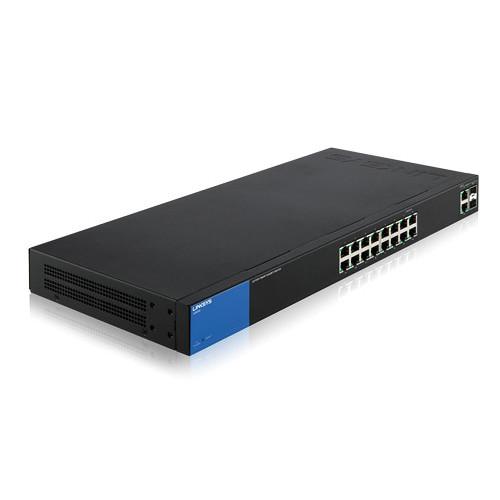

With 18 Gigabit Ethernet ports, the LGS318 18-Port Smart Gigabit Switch from Linksys is a business-class switch designed to handle a heavy workload while remaining easy to configure and manage. The 18 Gigabit Ethernet ports, two of which offer SFP connectivity, allow you to connect additional routers and switches to the network for easy expansion. Integrated network security features including MAC-based port security, DHCP snooping, and IP-MAC binding help to keep the network safe from intruders and attacks.
|
If you own a Linksys network switches, bridges & hubs and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Linksys LGS318 18-Port Smart Gigabit Switch LGS318 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Linksys LGS318 18-Port Smart Gigabit Switch LGS318:
| Ports | 18 x Gigabit Ethernet ports | | Copper Ports | g01-g08, g09-g16 | | Combo Ports | Combo Ports (RJ45 + SFP): 2 x combo on ports g17, g18 | | Status LEDs | System (blue), Link/Act (green) | | DRAM | 128 MB | | Power Input | 100-240 V, 50-60 Hz, (0.7 A max) | | Green Power Mode | EEE+, Short Reach + Energy Detect | | Power Consumption | System Power Consumption without PoE
110 V: 13.55 W
220 V: 13.66 W | | Forwarding Rate | 26.79 Mpps | | Switching Capacity | 36 Gbps | | MAC Address | 8 K | | Jumbo Frame | 9 K (FE, GE) | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 90% RH | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 10 to 90% RH (non-condensing) | | Number of VLANs | 128 active VLANs (4,096 range) | | VLAN | Port-based and 802.1q tag-based VLANs
Management VLAN
Guest VLAN support
Dynamic VLAN assignment via Radius server with 802.1x client authentication | | HOL Blocking | Head of line (HOL) blocking prevention | | Web User Interface | Built-in Web UI for easy browser-based configuration (HTTP/HTTPS) | | SNMP | Version 1 and 2c | | Firmware Upgrade | Web browser upgrade (HTTP) and TFTP | | Port Mirroring | Traffic on multiple ports (up to 4 ports) can be mirrored to another port for analysis with a network analyzer | | RMON | Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis | | Other Management | Telnet (menu-driven), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP | | Security | 802.1x Radius authentication, DHCP snooping, IP-MAC binding, port security supports limited dynamic lock and locked MAC address, management access control | | Link Aggregation | IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group | | Storm Control | Broadcast, flooding, and multicast | | Spanning Tree | IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree | | IGMP Snooping | IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups | | QoS Priority Levels | 4 hardware queues | | Scheduling | Priority queuing and weighted round robin (WRR) | | Class of Service | Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based | | Auto Voice LAN | Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels | | Standards | 802.3 10Base-T Ethernet, 802.3u 100Base-T Fast Ethernet, 802.3ab 1000Base-T Gigabit Ethernet, 802.3z Gigabit Ethernet, 802.3x Flow Control, 802.3ad, 802.1d STP, 802.1q/p VLAN, 802.1x Port Access Authentication, 802.3af PoE, 802.3at PoE+, 802.3az Energy Efficient Ethernet | | Dimensions | 17.3 x 7.9 x 1.7" / 440 x 200 x 44 mm | | Weight | 5.23 lb / 2.38 kg | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 19.8 x 11.8 x 3.7" | |
The user manual for the Linksys LGS318 18-Port Smart Gigabit Switch LGS318 can be downloaded in .pdf
format if it did not come with your new network switches, bridges & hubs, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Linksys users keep a unique electronic library
for Linksys network switches, bridges & hubss,
where you can use our link to download the user manual for the Linksys LGS318 18-Port Smart Gigabit Switch LGS318.
The user manual lists all of the functions of the Linksys LGS318 18-Port Smart Gigabit Switch LGS318,
all the basic and advanced features and tells you how to use the network switches, bridges & hubs.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Linksys service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Linksys LGS318 18-Port Smart Gigabit Switch LGS318. User manuals are also
available on the Linksys website under Computers & Solutions - Networking - Network Switches, Bridges & Hubs.
