User manual Louroe Verifact DV Microphone LE-069

Operating instructions and pdf manual for use - Louroe Verifact DV Microphone LE-069 User manual, User manual Louroe Verifact DV Microphone LE-069, Louroe, Verifact, DV, Microphone, LE-069, Video


User manual for Louroe Verifact DV Microphone LE-069

Louroe  Verifact DV Microphone LE-069
  • Manufacturer: Louroe
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Additional Accessories - Audio Surveillance
  • Safety instructions
  • Startup and operation of the audio surveillance
  • Tips for setting up your Louroe
  • Settings and expert assistance
  • Contact Louroe service
  • Troubleshooting
  • Warranty information
  • Price: 135 USD
We recommend checking out our discussion threads on the Louroe Verifact DV Microphone LE-069, which address similar problems with connecting and setting up Audio Surveillance Louroe.



User manual for the Louroe Verifact DV Microphone LE-069

The user manual for the Louroe Verifact DV Microphone LE-069 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Additional Accessories - Audio Surveillance.

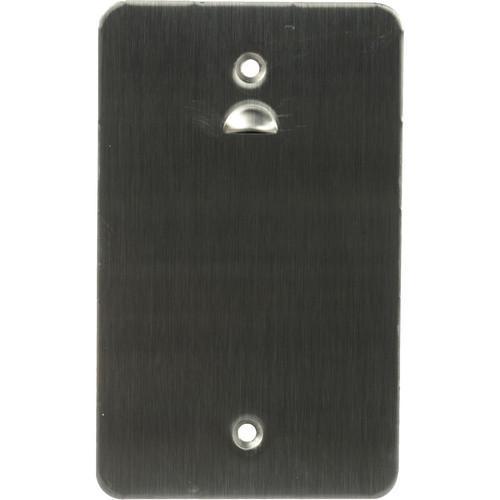

The Verifact DV Microphone from Louroe Electronics is an omni-directional electret condenser microphone designed for areas with a high risk of vandalism. This microphone is to be installed onto a stainless-steel faceplate that fits into a single-gang electrical box (sold separately).

With a high sensitivity to low sound pressure, this low-impedance microphone can easily pick up sounds from within a 15’ (4.57m) radius. It comes with a built-in preamp with a sensitivity switch for lowering gain, and is suitable for use in convenience stores, warehouses, booking rooms, interrogation rooms, hospital observation rooms, parking structures, casino soft-count rooms, or anywhere CCTV cameras are installed.
If you own a Louroe audio surveillance and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Louroe Verifact DV Microphone LE-069 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Louroe Verifact DV Microphone LE-069:
Specifications
    Microphone
    Type Electret condenser
    Output Line level (0 dB @ 1 kΩ)
    Frequency Response 40 Hz to 15 kHz ±1dB
    Current Drain 4 mA
    Supply Voltage 12 VDC
    Output Impedance 600 Ω, unbalanced
    Dimensions (W x H) Faceplate: 2.75 x 4.50" (6.99 x 11.43 cm)
    Back box Single gang electrical box (not included)
    Weight 4.50 oz (127.57 g)
    Packaging Info
    Package Weight 0.3 lb
    Box Dimensions (LxWxH) 4.5 x 2.9 x 1.5"
    The user manual for the Louroe Verifact DV Microphone LE-069 can be downloaded in .pdf format if it did not come with your new audio surveillance, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Louroe users keep a unique electronic library for Louroe audio surveillances, where you can use our link to download the user manual for the Louroe Verifact DV Microphone LE-069.

    The user manual lists all of the functions of the Louroe Verifact DV Microphone LE-069, all the basic and advanced features and tells you how to use the audio surveillance. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Louroe service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Louroe Verifact DV Microphone LE-069. User manuals are also available on the Louroe website under Surveillance - Surveillance Video - Additional Accessories - Audio Surveillance.
