User manual for the M-Audio AV 40 Active 2-Way Desktop Monitor Speakers & USB
The user manual for the M-Audio AV 40 Active 2-Way Desktop Monitor Speakers & USB provides
necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.
The M-Audio AV 40 Active 2-Way Desktop Monitor Speakers & USB Studio Condenser Mic Kit from B&H comes with all the essential tools for capturing podcasts, solo performances, voiceovers and more. The kit comes with a pair of M-Audio AV 40 Desktop Speakers and a USB studio condenser microphone.
If you own a M-Audio studio monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the M-Audio AV 40 Active 2-Way Desktop Monitor Speakers & USB in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the M-Audio AV 40 Active 2-Way Desktop Monitor Speakers & USB:
Specifications

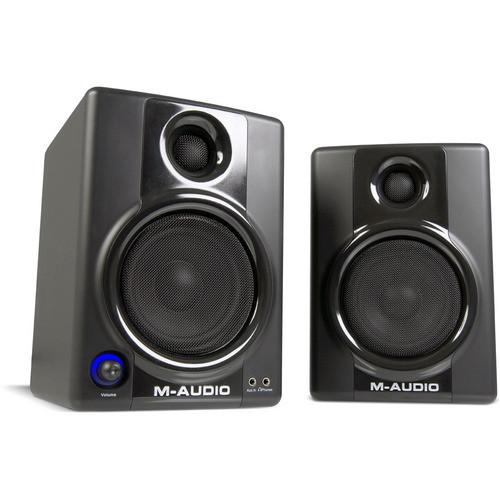

M-Audio AV 40 Active 2-Way Desktop Monitor Speakers (Pair)
Type
Two-way desktop reference speaker
Low Frequency Driver
4" (102 mm) Polypropylene Woofer
High Frequency Driver
1" (25 mm) Silk Dome Tweeter
Amplifier
20 W / Channel Continuous into 4 Ohms, Class-A/B
Frequency Range
85 Hz - 20 kHz
Maximum Sound Pressure Level (SPL)
101.5 dB
Crossover
2.7 kHz
Signal to Noise Ratio
> 90 dB Typical, A-Weighted
Input Impedance
10 kOhms, Unbalanced 20 kOhms, Balanced
Input Sensitivity
100 mV Pink Noise Input for 90 dBA SPL, Volume Control at Maximum
Connectors
Left Speaker: 1 x Stereo RCA Input (2 Jacks, L/R) 1 x Stereo 1/4" TRS Input (2 Jacks, L/R) 1 x 3.5 mm Aux Input (Front Panel) 1 x 3.5 mm Headphone Jack (Front Panel) 1 x Spring Terminal Output to Right Speaker Right Speaker: 1 x Spring Terminal Input from Left Speaker
Controls and Indicators
1 x Power Switch 1 x Volume Control (Front Panel)
Indicators
Blue Power LED Ring Around Volume Knob
Cabinet
Vinyl-Laminated MDF
Protection
RF Interference, Output Current Limiting, Over Temperature, Turn On/Off, Transient, Subsonic Filter
Shielded
Yes
Power
100-120 V ~50/60 Hz, powered via attached 2-conductor line cord
The user manual for the M-Audio AV 40 Active 2-Way Desktop Monitor Speakers & USB can be downloaded in .pdf
format if it did not come with your new studio monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other M-Audio users keep a unique electronic library
for M-Audio studio monitorss,
where you can use our link to download the user manual for the M-Audio AV 40 Active 2-Way Desktop Monitor Speakers & USB.
The user manual lists all of the functions of the M-Audio AV 40 Active 2-Way Desktop Monitor Speakers & USB,
all the basic and advanced features and tells you how to use the studio monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from M-Audio service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the M-Audio AV 40 Active 2-Way Desktop Monitor Speakers & USB. User manuals are also
available on the M-Audio website under Pro Audio - Recording - Studio Monitors.
