User manual for the M-Audio M-Track Plus - USB Audio/MIDI Interface MTRACK PLUSNPTE
The user manual for the M-Audio M-Track Plus - USB Audio/MIDI Interface MTRACK PLUSNPTE provides
necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

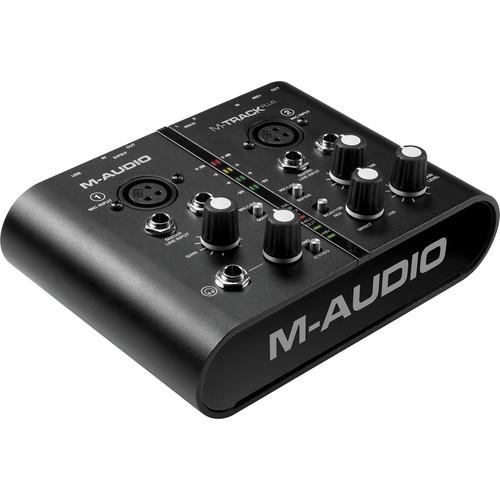

The M-Track Plus from M-Audio can easily transform a laptop into a mobile studio by accommodating any input, from an electric guitar to a condenser microphone, while utilizing a circuit designed to minimize laptop battery drain. Coaxial S/PDIF, per channel inserts and dedicated MIDI connectors further extend the versatility of the interface, with a single USB cable providing both power and a data connection to and from a laptop or desktop computer.
Each channel offers an XLR input designed to work with microphones or other Lo-Z sources and a balanced 1/4" input can be set to receive line level signal, or switched to allow an electric guitar or bass to be plugged directly into the unit. The gain knob ensures the proper input level and the phantom power switch delivers 48V to the XLR inputs for use with professional condenser microphones. Low latency monitoring of the input signal is provided either through the speakers or via headphones.
A monitor mix knob adjusts the balance between the direct inputs and the playback from the computer software. Additionally, input signals can be monitored in stereo or mono. The headphone output features a dedicated level control. The unit also supports sixteen channels of MIDI data and timing information with the MIDI in and MIDI out jack compatible with all MIDI equipment. Multi-color LED metering provides visual feedback of the main output levels, as well as the status of various settings.
|
If you own a M-Audio audio interfaces & systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the M-Audio M-Track Plus - USB Audio/MIDI Interface MTRACK PLUSNPTE in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the M-Audio M-Track Plus - USB Audio/MIDI Interface MTRACK PLUSNPTE:
| Audio Inputs | 2 x XLR Microphone
2 x 1/4" TRS Guitar/Line
1 x RCA coaxial S/PDIF | | Audio Outputs | 2 x 1/4" TRS Main
1 x RCA coaxial S/PDIF | | Inserts | 2 x 1/4" TRS Send/Return | | Headphone Output | 1 x 1/4" TRS (switchable to mono) | | MIDI Connectors | 1 x 5-pin DIN MIDI In
1 x 5-pin DIN MIDI Out | | USB Connection | 1 x USB 2.0 type B | | Phantom Power | 48V, switchable (global) | | Performance | XLR Microphone Inputs
Signal to Noise Ratio: 97 dB
THD+N: 0.005%
Frequency Response: +/-0.35 dB
1/4" TRS Line Inputs
Signal to Noise Ratio: 96 dB
THD+N: 0.034%
Frequency Response: +/-1.2 dB
1/4" TRS Main Outputs
Signal to Noise Ratio: 97 dB
THD+N: 0.005%
Frequency Response: +/-0.35 dB | | Metering | 2 x 4-segment LED | | Power Requirements | USB powered | | Dimensions (WxDxH) | 6.5 x 4.7 x 2.25" (165 x 119 x 57 mm) | | Weight | 1.5 lb (0.7 kg) | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 20.3 x 12.5 x 3.8" | |
The user manual for the M-Audio M-Track Plus - USB Audio/MIDI Interface MTRACK PLUSNPTE can be downloaded in .pdf
format if it did not come with your new audio interfaces & systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other M-Audio users keep a unique electronic library
for M-Audio audio interfaces & systemss,
where you can use our link to download the user manual for the M-Audio M-Track Plus - USB Audio/MIDI Interface MTRACK PLUSNPTE.
The user manual lists all of the functions of the M-Audio M-Track Plus - USB Audio/MIDI Interface MTRACK PLUSNPTE,
all the basic and advanced features and tells you how to use the audio interfaces & systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from M-Audio service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the M-Audio M-Track Plus - USB Audio/MIDI Interface MTRACK PLUSNPTE. User manuals are also
available on the M-Audio website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
