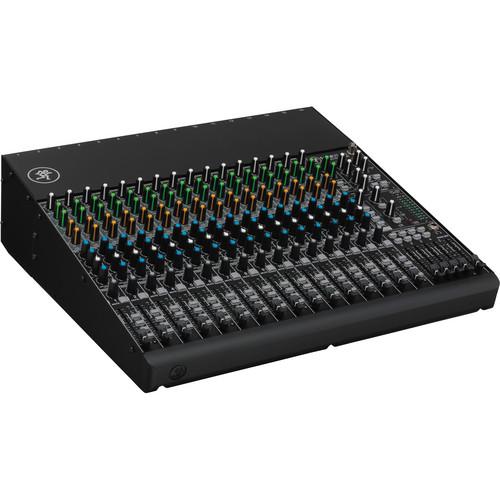

The Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer includes a combination of Onyx preamps and a high-headroom / low-noise design. All 16 channels feature an Onyx microphone preamplifier, line input and insert in a compact 4-bus design built for application flexibility and professional performance.

The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. It is a band-friendly analog mixer used in professional broadcast and post facilities.
If you own a Mackie analog recording mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer 1604-VLZ4 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer 1604-VLZ4Download user manual for Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer 1604-VLZ4
(PDF file, 9.68 MB)
Additional parameters of the Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer 1604-VLZ4:
Specifications
    Noise Main Mix Noise:
    Main Mix Fader @ Unity, Channel Faders Down: -88.5 dBu (92 dB signal-to-noise ratio, ref +4 dBu)
    Main Mix Fader @ Unity, Channel Faders @ Unity: -82.5 dBu
    (20 Hz to 20 kHz bandwidth, 1/4" main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right)
    Total Harmonic Distortion (THD) Microphone In to Insert Send: <0.0007%
    Microphone In to Main Out: <0.005%
    (1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth)
    Crosstalk / Attenuation Channel Mute Switch Engaged: -84 dBu
    Channel Gain Knob Down: -84 dBu
    (1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain @ unity)
    Frequency Response Microphone Input to Main Output (Gain @ Unity):
    +0, -1 dB, 20 Hz to 50 kHz
    +0, -3 dB, <10 hz to>100 kHz
    Equivalent Input Noise 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz
    Microphone input to insert send out, maximum gain
    Common Mode Rejection Ratio Better than -70 dB @ 1 kHz
    Maximum Level Microphone In: +22 dBu
    All Other Inputs: +22 dBu
    Main Mix TRS Out: +28 dBu
    All Other Outputs: +22 dBu
    Impedance Microphone In: 2.5 kΩ
    Channel Insert Return: 2.5 kΩ
    All Other Inputs: 10 kΩ or greater
    Tape Out: 1.1 kΩ
    All Other Outputs: 120 Ω
    Equalizer High Shelving: ±15 dB @ 12 kHz
    Mid Peaking: ±15 dB sweep 100 Hz to 8 kHz
    Low Shelving: ±15 dB @ 80 Hz
    Low Cut Filter: 18 dB/octave, -3 dB @ 75 Hz
    Power Consumption 50 W, 100 to 120 VAC, 50 to 60 Hz
    Operating Temperature 32 to 104°F (0 to 40°C)
    Fuse Rating 100 to 120V: 1 A slo blo, 5 x 20 mm
    220 to 240V: 0.5 A slo blo, 5 x 20 mm
    Dimensions (H x W x D) 17.0 x 17.3 x 5.1" (433.0 x 440.0 x 129.0 mm)
    Weight 20.0 lb (9.1 kg)
    Packaging Info
    Package Weight 29.2 lb
    Box Dimensions (LxWxH) 21.0 x 21.0 x 10.0"
