User manual Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2

Operating instructions and pdf manual for use - Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2 User manual, User manual Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2, Mackie, ProFX12v2, 12-Channel, Sound, Reinforc


User manual for Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2

Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2
  • Manufacturer: Mackie
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Analog Recording Mixers
  • Safety instructions
  • Startup and operation of the analog recording mixers
  • Tips for setting up your Mackie
  • Settings and expert assistance
  • Contact Mackie service
  • Troubleshooting
  • Warranty information
  • Price: 280 USD
Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2 Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2 Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2 Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2 Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2 Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2
Click to enlarge image

We recommend checking out our discussion threads on the Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2, which address similar problems with connecting and setting up Analog Recording Mixers Mackie.



User manual for the Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2

The user manual for the Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2 provides necessary instructions for the proper use of the product Pro Audio - Recording - Analog Recording Mixers.

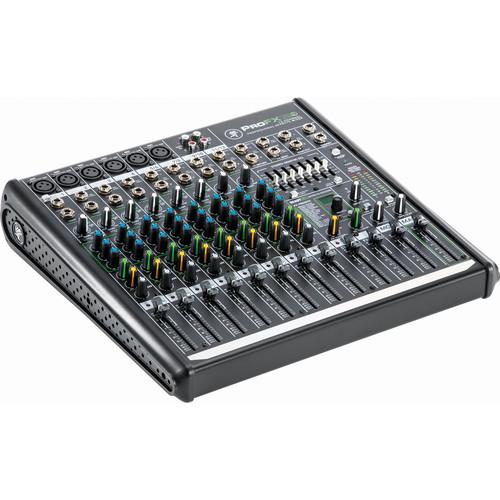

The ProFX12v2 12-channel mixing console from Mackie features a built-in effects engine, and is ideal for a plethora of live sound reinforcement applications ranging from live bands and DJs to lecturers and presenters. With 6 XLR mic inputs with low-noise Vita microphone preamps, per channel 3-band EQ, 1 aux send, and an FX out for feeding external processors, the ProFX12v2 offers professional features to suit a wide variety of configurations.

In addition to the mic inputs, the ProFX12v2 includes 12 line inputs for connecting keyboards, samplers, and other gear. There is also an RCA tape input and output for connecting portable music players similar devices. In addition, the mixer has rugged 60mm faders for all input channels, return and main/monitor masters.

The ProFX12v2's effects engine offers 16 different effects, including reverbs, delays, and choruses. It also features a 7-band graphic EQ that can be used for tuning mains or monitors, and a built-in USB interface that can be used to record the show or provide music playback via Mac or Windows computer.
If you own a Mackie analog recording mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2Download user manual for Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2
(PDF file, 12.41 MB)
Additional parameters of the Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2:
Equivalent Input Noise 150 ohm source impedance, 20 Hz to 20 kHz:
Mic in to insert send out, max gain -125 dBu
Residual Output Noise All outputs, master levels off, all channel levels off: -95 dBu
All outputs, master levels unity, one channel level unity: -80 dBu
Frequency Response Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 30 kHz
THD+N 22 Hz to 80 kHz bandwidth: Mic in to Main out (+4 dBu output): < 0.03%
Attenuation and Crosstalk Adjacent Inputs @ 1 kHz: -90 dB
Inputs to Outputs @ 1 kHz: -80 dB
Fader Off @ 1 kHz: -75 dB
Mute Switch / Break Switch Mute @ 1 kHz: -90 dB
Common Mode Rejection Ratio Mic In to Main Out, max gain, 1 kHz: 70 dB
Maximum Level All inputs: +22 dB
Main Out XLR: +28 dBu
All other outputs: +22 dBu
Impedance Mic In 3.8 kOhms
Channel Insert Return 10 kOhms
All other inputs ≥ 20 kOhms
Tape output 1 kOhms
Phones output 25 ohms
All other outputs 120 ohms unbalanced, 240 ohms balanced
Equalization Low ±15 dB @ 80 Hz
Mid ±15 dB @ 2.5 kHz
High ±15 dB @ 12 kHz
Low Cut Filter 18 dB/octave @ 100 Hz
Maximum Voltage Gain Mic Input Channel to:
Insert Output: 50 dB
Tape Output: 60 dB
USB Output: 50 dB
1/4" Main Output: 70 dB
XLR Main Output: 76 dB
Monitor Send: 76 dB
FX Send: 90 dB

Mono Line Input Channel to:
Insert Output: 30 dB
Tape Output: 40 dB
USB Output: 30 dB
XLR Main Output: 56 dB
Monitor Send: 56 dB
FX Send: 70 dB

Stereo Line Input Channel to:
Tape Output: 30 dB
USB Output: 30 dB

XLR Main Output: 46 dB
Monitor Send: 46 dB
FX Send: 60 dB

Tape Input to:
XLR Main Output: 36 dB

USB Input to:
XLR Main Output: 36 dB

Stereo Return to:

XLR Main Output: 26 dB
Digital Effects I/O: mono input / stereo output
Number of Presets: 16
Meters Main L/R Mix:
Two columns of 12 segments each: OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30

Channel OL LED:
Measured post-EQ, pre-fader (-3 dB before channel clipping): 18 dBu
Graphic EQ Frequency Centers [7-Band]: 125, 250, 500, 1k, 2k, 4k, 8k
Gain: ±15 dB
Assignable to Main or Monitor, bypassable
USB USB Recording to Computer (Mac & PC)
Phantom Power 48 VDC to all mic channels simultaneously
AC Power Requirements Power Consumption: 30 watts
Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz
Class II Detachable Line Cord: Yes
Operating Temperature 32 - 104˚F (0 - 40˚C)
Dimensions 3.6 x 14.6 x 14.1" (91 x 370 x 358 mm)
Weight 9.0 lb (4.1 kg)
Packaging Info
Package Weight 13.85 lb
Box Dimensions (LxWxH) 18.8 x 17.8 x 7.1"
The user manual for the Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2 can be downloaded in .pdf format if it did not come with your new analog recording mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Mackie users keep a unique electronic library for Mackie analog recording mixerss, where you can use our link to download the user manual for the Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2.

The user manual lists all of the functions of the Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2, all the basic and advanced features and tells you how to use the analog recording mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Mackie service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Mackie ProFX12v2 12-Channel Sound Reinforcement Mixer PROFX12V2. User manuals are also available on the Mackie website under Pro Audio - Recording - Analog Recording Mixers.
