User manual for the Midas DL251 - 48 x 16 Fixed Format I/O Unit DL251
The user manual for the Midas DL251 - 48 x 16 Fixed Format I/O Unit DL251 provides
necessary instructions for the proper use of the product Pro Audio - Installation Sound - Networked Audio Systems.

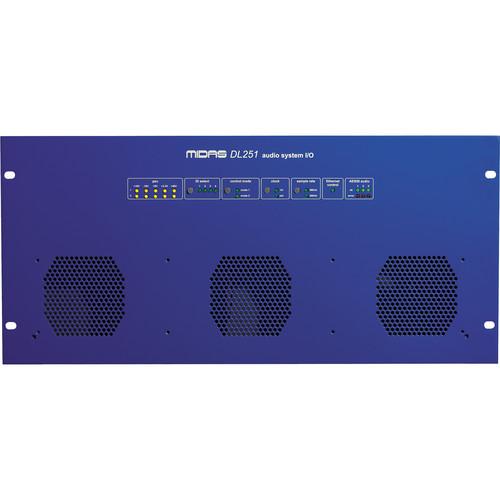

The DL251 from MIDAS is a 5U 19" rackmount fixed-configuration I/O unit with forty-eight microphone/line inputs and sixteen line outputs. Limited to analog connections, the unit provides a more cost-effective solution for those not needing the flexibility of MIDAS modular I/O hardware.
MIDI (In, Out, Thru) connectors and an Ethernet control port are fitted as standard. Three AES50 ports handle the (n+1) redundant digital audio interface. The DL251 is capable of being switched between 96 kHz and 48 kHz via the front panel.
A rear panel "Mute All Outputs" button is provided for aiding in onstage re-patching. The unit is also equipped with dual-redundant, universal power supplies.
If you own a Midas networked audio systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Midas DL251 - 48 x 16 Fixed Format I/O Unit DL251 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Midas DL251 - 48 x 16 Fixed Format I/O Unit DL251:
Specifications
Sample Rates
48 or 96 kHz
Analog Inputs
48 x XLR 3-pin female Microphone/Line
Analog Outputs
16 x XLR 3-pin male Line
Other Connectors
1 x RJ45 Ethernet 3 x Neutrik etherCON ports 3 x 5-pin DIN MIDI In, Out, Thru 1 x 9-pin D-Sub (diagnostics)
