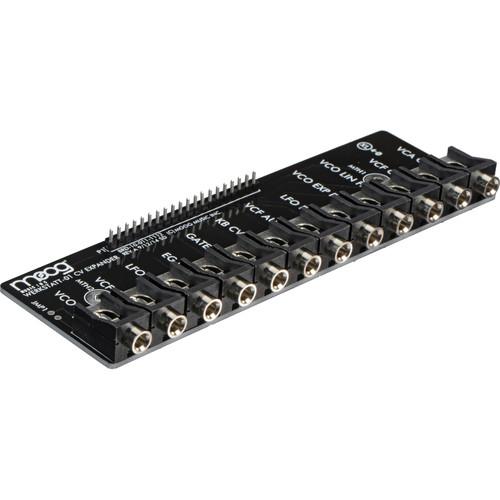

The Werkstatt CV Expander from Moog converts the Werkstatt's 20-pin patchable expansion header to twelve grounded 1/8" TS (3.5mm) jacks. This allows the Werkstatt to easily interface with external CV-equipped analog equipment.
If you own a Moog expansion options and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Moog Werkstatt CV Expansion Board KIT-03-000-0014 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Moog Werkstatt CV Expansion Board KIT-03-000-0014:
Specifications
Inputs
VCA: 0V to +5V in VCA EG mode, +/-2.5 V in VCA ON mode VCF: -5V to +5V VCO Linear FM: +/-2.5V (this is an inverting control input) VCO Exponential FM: -5V to +5V, 1V per octave, trimmable LFO CV: - 5V to +5V (negative CV slows LFO more than panel) VCF Audio: Unbuffered/unmixed AC coupled input to VCF
Outputs
KB CV: Nominal 0.3V per semitone from one octave keyboard (attenuate for 1V per octave) GATE: 0V (off) to +5V (on) gate signal generated from low note priority/ legato keyboard circuit (jack may also be used as a gate input) EG: Simple ASD or AD type envelope generator, 0V to +5V signal LFO: -2.5V to +2.5V wave shape selected from LFO Wave Switch VCF: -2V to +2 V signal for audio or CV uses VCO: 0V to +5V signal, shape selected by VCO Wave Slide switch
